Genmac Wonder RG14000HS-M5
Fixed Petrol Generator
MPN: RG14000HS-M5
230V - 15,6 kW
779 cc - 24,9 HP
Benzina
Warranty 2 years
Shipped on Pallet
Genmac Wonder RG14000HS-M5 - Petrol Generator
The Genmac Wonder RG14000HS-M5 petrol power generator is a reliable 230V professional generator set suitable for professional use . The Genmac Wonder RG14000HS-M5 petrol generator has a max power of 15.6 kW.
4-stroke twin-cylinder engine , Genmac Wonder RG14000HS-M5 has a 3000 rpm air-cooled 4-stroke engine, with electronic speed regulation . The Honda iGX800 stage V engine is one of the strong points of this Genmac fixed generator.
Petrol generator, Genmac Wonder RG14000HS-M5 has a 25 L petrol tank, with 4.7 h autonomy. With electric start (battery included).
Functional specifications

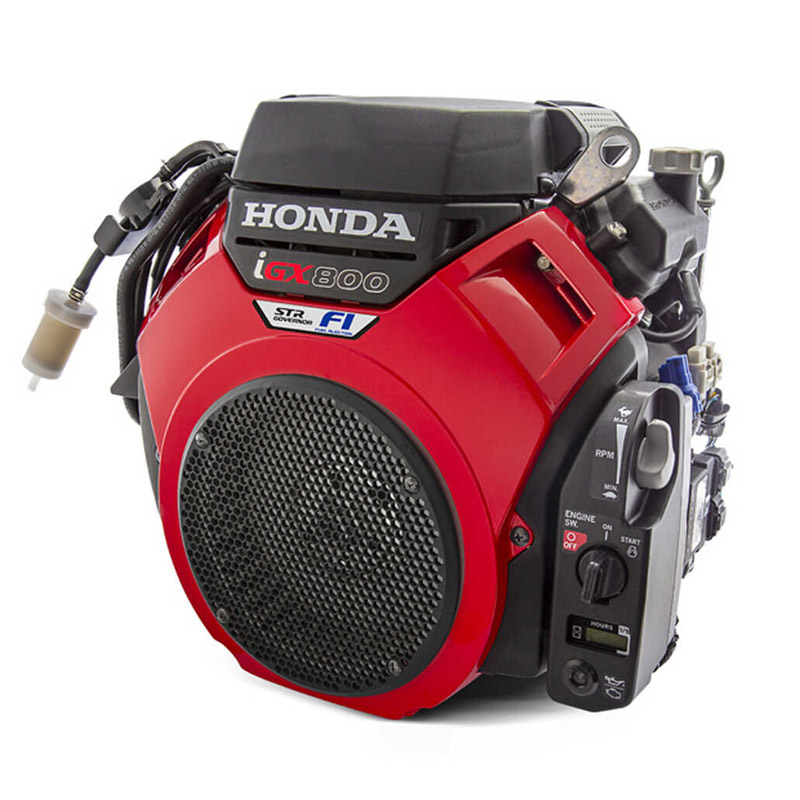

Honda iGX800 Stage V engine
Recommended for a wide range of professional machines, the Honda iGX8000 OHV configuration engine guarantees very efficient combustion. Honda 24.9 HP engine, iGX800 runs at 3600 rpm, with a consumption of 7.1 L/h . Generator with Honda engine, Genmac Wonder RG14000HS-M5 is designed for intensive and professional use.
Single-phase synchronous alternator
The alternator of this Genmac generator is synchronous , single phase , brushless , self-regulating and self-excited . AVR can be requested as an optional .

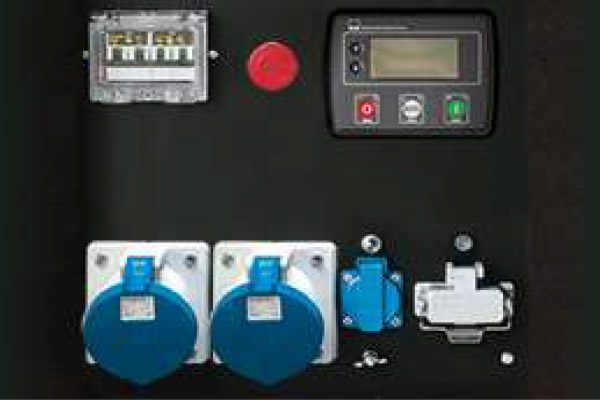

Control panel
The Genmac Wonder RG14000HS-M5 control panel is complete with AMF controller COMPA INTELLINANO PLUS; There are:
- 1 x 230V 16A Schuko socket
- 2 CEE 230V 16 A sockets
- 1 CEE 63 A socket
- Thermal switch
- Switch magnetermic
- Digital multimeter
- ON/OFF button
- Emergency stop button
- 4 pin connector for remote start
- Low oil pressure protection
- High temperature protection
- Overspeed protection
High technical quality
Genmac Wonder RG14000HS-M5 is a professional generator set Made in Italy.
Characteristics
- Honda iGX800 stage V engine
- Synchronous alternator, self-regulating, self-excited
- Max power 14 kW
- IP23 protection
- Electric starter (battery included)
- Complete control panel
- Made in Italy
- High quality for professional use
Optional on request
- AVR card
Technical data
| Model | Wonder RG14000HS-M5 |
| Motor | Honda iGX800 Stage V |
| Alternator | Synchronous - Single phase - Self-excited - Self-regulated |
| Max Power | 15.6 kVA - 24 kW cos φ 0.9 |
| Nominal power | 14.2 kVA - 12.8 kW cos φ 0.9 |
| Protection | IP 23 |
| Displacement | 779 cc |
| Horses | 24.9 HP |
| Fuel | Gas |
| Autonomy | 4.7 h / 25 L |
| Goodwill | Electric (battery included) |
| Schuko socket | 230V - 16A |
| EEC sockets | 2 CEE sockets 230 V 16 A - 1 CEE socket 230 V 63 A |
| Thermal switch | YES |
| Switch magnetermic | YES |
| ON/OFF button | YES |
| Emergency Stop button | YES |
| Protections | YES |
| Dimensions | 110 x 64 x 100 cm |
| Weight | 302kg |
Technical data
| Model | Wonder RG14000HS-M5 |
| Motor | Honda iGX800 Stage V |
| Alternator | Synchronous - Single phase - Self-excited - Self-regulated |
| Max Power | 15.6 kVA - 24 kW cos φ 0.9 |
| Nominal power | 14.2 kVA - 12.8 kW cos φ 0.9 |
| Protection | IP 23 |
| Displacement | 779 cc |
| Horses | 24.9 HP |
| Fuel | Gas |
| Autonomy | 4.7 h / 25 L |
| Goodwill | Electric (battery included) |
| Schuko socket | 230V - 16A |
| EEC sockets | 2 CEE sockets 230 V 16 A - 1 CEE socket 230 V 63 A |
| Thermal switch | YES |
| Switch magnetermic | YES |
| ON/OFF button | YES |
| Emergency Stop button | YES |
| Protections | YES |
| Dimensions | 110 x 64 x 100 cm |
| Weight | 302kg |
