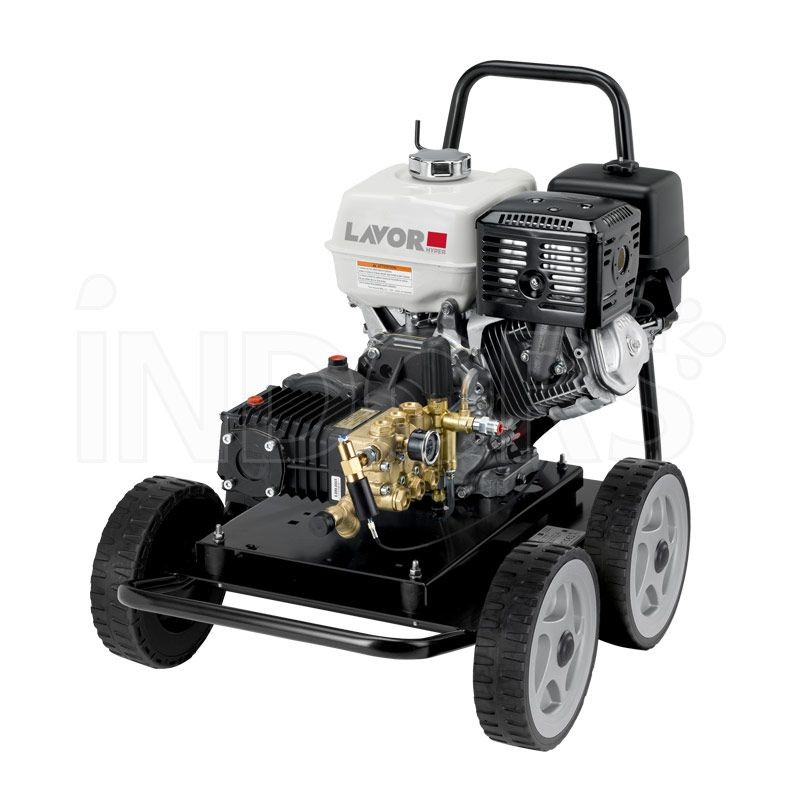

Lavor Thermic 13 H and Lavor Thermic 13 HF are two professional pressure washers with a Honda GX390 petrol engine .
These machines are professional products ideal for industrial , construction , or agricultural use where there is no possibility of an electrical connection. Made in Italy quality, the Lavor Thermic pressure washer works with cold water , ensuring, thanks to the excellent performance of the motor and pump, reliable and continuous work , even with intensive use . The Lavor Thermic is also suitable for use as a sandblaster .
The two models feature an essential design with a steel load-bearing structure and exposed components , to facilitate cleaning and maintenance operations. The Lavor Thermic H is equipped with 4 oversized drive wheels, while the Lavor Thermic HF is equipped with 4 inflatable pneumatic wheels that allow the device to be moved more easily even on rough terrain . The comfortable handle on both models is useful for facilitating the pushing action of the machine.
Honda GX 390 engine
This Lavor pressure washer is equipped with a powerful 4-stroke Honda GX 390 engine with a displacement of 389 cc and 13 HP , which runs on unleaded petrol contained in a 5-litre fuel tank . Together with the self-priming pump and the Pressure Boost system, the engine supplied with this petrol pressure washer allows a maximum operating pressure of 270 bar for the Lavor Thermic 13 H and 250 bar for the Lavor Thermic 13 HF , with a flow rate of 1080 L/h . This engine features an automatic reduction and regulation of the revolutions placed between the engine and the pump, which allows the machine to rotate at 1500 RPM. In this way, the Lavor Thermic 13 H pressure washer with a Honda engine is more reliable and functional than pressure washers equipped with a 2-stroke engine. The engine is also silent and fuel efficient , making it easier to start even after long periods of inactivity.
CL 5 pump
The Lavor CL 5 pump is a self-priming pump with a brass head and three in-line ceramic pistons . The pistons are designed for low wear, while the aluminum alloy connecting rods have a low friction coefficient and a double body for easy disassembly. The shaft rotation is electronically calibrated, minimizing the load on the tapered bearings. The water-cooled motor maintains extremely low operating temperatures. The pump is equipped with a pressure adjustment knob, a glycerine-filled pressure gauge , and a bypass with a safety valve.
The detergent suction is integrated with a suction probe .
Both petrol pressure washer models are equipped with a lifting hook and hose reel connection .
Characteristics
- Steel load-bearing structure
- Honda GX 390 13 Hp engine with automatic speed control
- Motor/pump coupling with speed reducer
- Water inlet filter
- CL 5 linear pump group
- Thermal bypass protection valve
- Stainless steel suction and delivery valves
- Integrated detergent suction with external suction probe
- Pressure regulator
Available models
- Lavor Thermic 13 H
- Lavor Thermic 13 HF
