Helvi FOX 211
Multifunction Inverter Welder

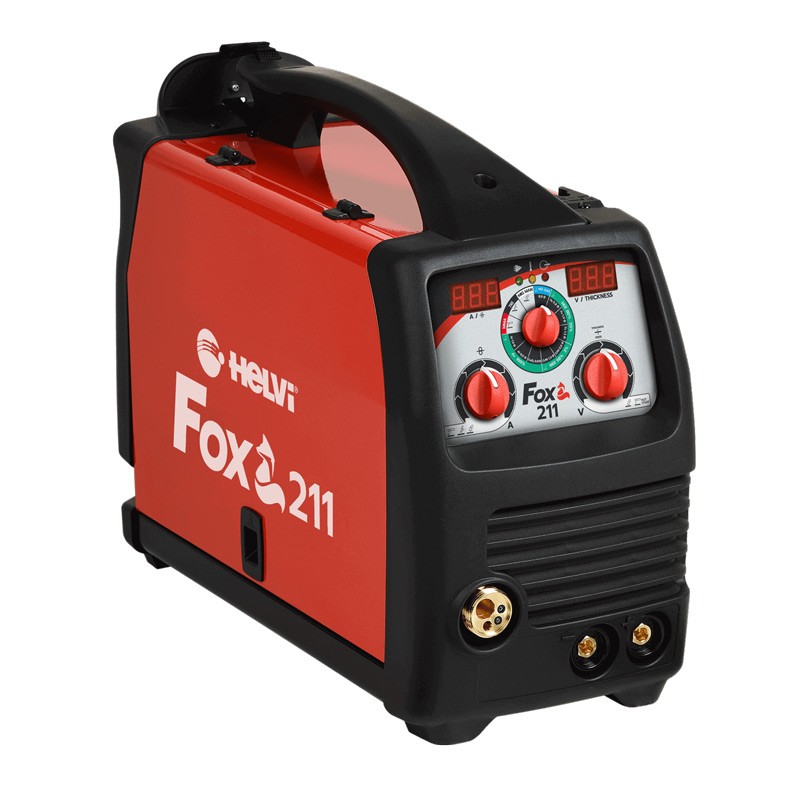

Helvi FOX 211 - Semi-professional Multifunction Inverter Welder

Helvi FOX 211 cod. 99820053A is a semi-professional inverter MIG/MAG multifunction TIG and STICK welding machine . Powerful and versatile, this welding machine is designed for professional or hobby use.

This Helvi welder is single-phase with 5.5 kW power, adjustable current from 5 to 200 A and a 40° work cycle which guarantees durability and reliability.

Compatible with iron , stainless steel , aluminium , flux cored wire and copper alloy wire in diameters from 0.6 to 1.0 mm , the FOX 211 offers the flexibility needed for a wide variety of uses.

Technical specifications

Multi-process welding machine

Helvi FOX 211 is a multifunctional direct current welding machine capable of carrying out MIG continuous wire , MMA coated electrode and TIG welding.

FOX 211 Heavy Duty

With a power of 5.5 kW at 60% , this Helvi welder can handle heavy workloads continuously without overheating or losing performance. The adjustable output voltage from 25 to 200 A in MIG , from 5 to 200 A in MMA and TIG , allows FOX 211 to weld a wide range of material thicknesses with precision. The 40° duty cycle offers reliable and long-lasting performance, even in the most demanding situations.

Semi-Professional Welder

The Helvi FOX 211 welding machine cod. 99820053A is designed to last, with an insulation class H and an IP22S protection rating .

Helvi Lightweight and Portable

Its compact dimensions of 22 x 52 x 38.5 cm make it easily transportable and suitable for limited work spaces, also thanks to its weight of 19 kg .

MMA Support Devices

The Helvi Fox 191 is not limited to MIG/MAG welding; it can also be used for MMA welding with rutile and basic electrodes from Ø 1.6 to 4.0 mm on a variety of materials, including iron, stainless steel and cast iron.

The Helvi FOX 191 welding machine is equipped with three devices that support the operator during the most complicated phases of MMA welding:

• Arc Force : increase in arc voltage to avoid switching off when the operator moves the electrode away from the base material or with particular electrodes
• Hot Start : momentary voltage peak during the ignition of the welding arc to simplify the ignition phase
• Anti-Stick : automatic protection system that prevents the electrode from sticking by suspending the welding current supply

Types of welding possible with Helvi FOX 191

• MIG : in MIG welding the electrode is made of a metal wire which is also used as a filler material and the unwinding of the spool occurs semi-automatically.
• MMA : also called coated electrode welding, it is certainly the most widespread welding method in non-professional environments or in processes that do not require particular qualitative and productive performance. This type of welding machines are simpler to use even if they give less precise results from an aesthetic point of view compared to other types of welding.
• TIG : Wire welding is very productive because, thanks to the length of the wire, it does not require constant interruptions for replacement and therefore allows for more continuous work. MIG, MAG wire welders are types of electric arc welding in a gaseous atmosphere while TIG welding uses rods as filler material (held in the hand by the operator) and uses argon or helium.

Characteristics

• Multi-process welding machine
• Arc Force, Hot Start and Anti-Stick
• Made in Italy
• Sturdy and easy to handle

• THERE IS
• EAC
• Certification
• Single phase
• Forced Ventilation Cooling
• Power Generator Friendly
• Voltage
• Electronic Control
• Direct Current
• Display
• Connector 50 mm²
• Automotive
• Set & Weld
• MIG
• Synergic Control Parameters
• GAS or no GAS welding
• Spools from 1 ÷ 5 kg
• Animated Wire
• MMA
• Arc Force
• Hot Start
• Anti-sticking
• Electrodes
• TIG
• Lift Arc

Standard Equipment

• MIG torch ErgoPlus 25 3 m - 23000494
• Ground cable 25 mm² 3 m - 43210132
• Roller Ø 30 mm 0.8 - 1.0 mm - 33805101
• Gas pipe kit 2 m - 30900030

Optional Accessories

• Cart - 99900171A
• TIG Torch 26V 4m - 23020199
• Welding cable MMA 16 mm² 3 m - 43205049K
