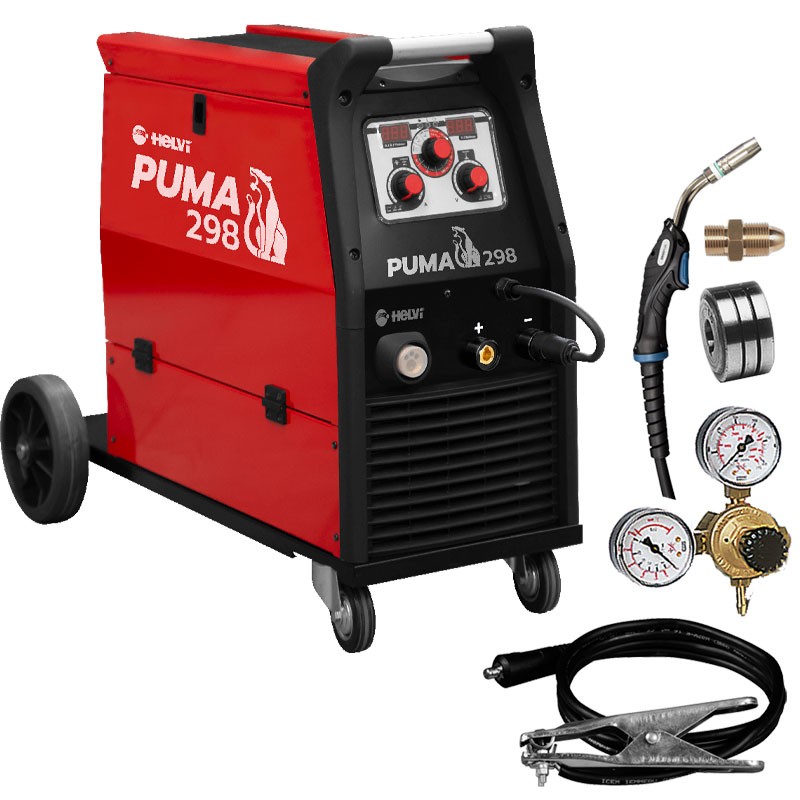

Helvi PUMA 298
Multiprocess Inverter Welder on Wheels + Accessory Kit

Helvi MONOMIG 286 - Semi-Professional Continuous Wire Welder

The Helvi PUMA 298 welder is a professional multifunctional inverter machine. Powerful and versatile, this welder is designed for professional and hobby use.

PUMA 298 is three-phase with power from 5.8 to 6 kW , adjustable current from 10 to 290 A and a 40° duty cycle which guarantees durability and reliability.

Compatible with iron , stainless steel , aluminum , flux-cored wire and copper alloy wire in diameters from 0.8 to 1.2 mm , PUMA 298 offers the flexibility needed for a wide variety of uses.

Technical specifications

Multifunctional Welding Machine

This Helvi welding machine is a multifunctional direct current machine capable of carrying out MIG continuous wire , MMA coated electrode and TIG welding.

PUMA 298 Heavy Duty

With a power output of 5.8 to 6 kW at 60% , this Helvi welder can handle heavy workloads continuously without overheating or losing performance. The adjustable output voltage from 30 to 290 A in MIG , from 20 to 250 A in MMA and from 10 to 290 A in TIG allows the PUMA 298 to weld a wide range of material thicknesses with precision. The 40° duty cycle offers reliable and long-lasting performance, even in the most demanding situations.

Helvi Semi-Professional Welder

The Helvi PUMA welding machine cod. 99825016 is designed to last, with an insulation class H and an IP23S protection rating .

Helvi Lightweight and Portable

Its compact dimensions of 45 x 84 x 71 cm make it easily transportable and suitable for limited work spaces, also thanks to its weight of 35 kg .

Types of welding possible with Helvi PUMA 298

• MIG : in MIG welding the electrode is made of a metal wire which is also used as a filler material and the unwinding of the spool occurs semi-automatically.
• MMA : also known as coated electrode welding, it is certainly the most common welding method in non-professional environments or in processes that do not require particular quality and productivity performance. This type of welding machine is easier to use, although it produces less precise results from an aesthetic standpoint than other welding methods.
• TIG : Wire welding is highly productive because, thanks to the wire's length, it doesn't require constant interruptions for wire replacement, allowing for more continuous work. MIG and MAG wire welders are types of electric arc welding in a gaseous atmosphere, while TIG welding uses rods as filler material (held by the operator) and uses argon or helium.

Fields of application

• Light industry
• Agricultural sector
• Maintenance services
• Building constructions
• Automotive
• Home use

Characteristics

• High quality MIG welder.
• Rated power of 60% and amounts to 6 Kk.
• Adjustable current from 10 to 290 A.
• The 40°C working cycle guarantees durability and reliability in welding.
• It is compatible with aluminum, stainless steel, iron, flux cored wire and copper alloy wire
• Professional quality

• THERE IS
• Certification
• Ecodesign
• Fan on Demand
• Power generator friendly
• Display
• Line Voltage Compensation
• Set & Weld
• MIG
• Animated Wire
• Spools from 5 ÷ 15 kg
• Synergistic control
• Gas/No Gas
• Synergistic control
• Adjustable Hot Start
• Anti-Stick
• Synergistic control
• Lift ARC

HELVI: Italian excellence in welding

Helvi SpA is an Italian company belonging to the Beta Group. Based in Sandrigo, in the province of Vicenza, this Italian manufacturing company specializes in industrial welding machines , plasma cutting machines, professional battery chargers , and accessories .

Helvi video presentation

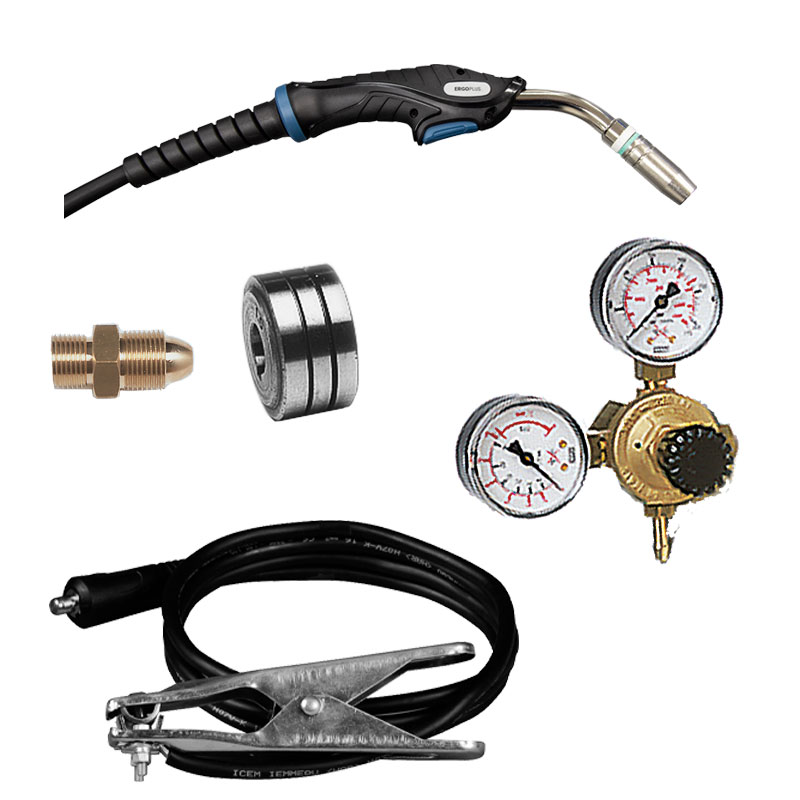

Standard Equipment

• Ground cable 3 m - 35 mm² - code 43210254
• ITAL-INGH. 2/man mini CO2 pressure reducer - code 22905049
• CO2 Cylinder Adapter - Argon - Italy - Code 22910014
• Trafimet Ergo Plus 25 torch - 3 m - Black/Blue · Euro connection - cod. 23000494
• Roller - Ø 30 mm - 0.8 - 1.0 mm - code 33805101

Compatible Accessories

• Ground cable with clamp 50 mm² 35 mm² 3.0 m - 43210142K
• Welding cable with electrode holder 50 mm² 25 mm² 3.0 m - 43205040K
• Ground clamp type 300A - 22110033
• Electrode holder type 202 - 22110010
• TIG Torch 26V 4m - 23020199
• Trafimet Ergo Plus 25 3 m - 23000494
• Trafimet Ergo Plus 25 4 m - 23000495
• Wire press roller Ø 30 mm - 33805007
• Roller for iron and stainless steel 0.6 - 0.8 mm Ø 30 mm - 33805003
• Roller for iron and stainless steel 0.6 - 0.9 Ø 30 mm - 33805071
• Roller for iron and stainless steel 0.8 - 1.0 mm Ø 30 mm - 33805101
• Roller for iron and stainless steel 1.0 - 1.2 mm Ø 30 mm - 33805005
• Roller for cored wire 1.0 - 1.2 mm Ø 30 mm - 33805067
• Aluminum Roller 0.8 - 1.0 mm Ø 30 mm - 33805104

Recommended Safety Accessories

• Pair of Professional MIG/MMA Gloves - 21905134
• Vision 2.1: Auto-Darkening Mask - 21905100
• Sky 2.0: Auto-Darkening Mask - 21905125
