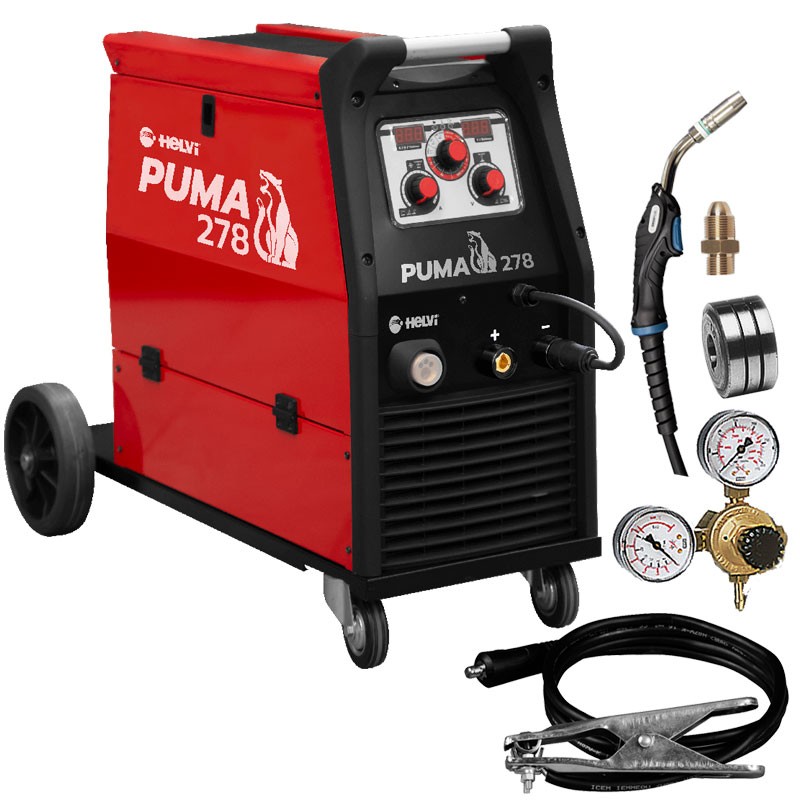

Helvi PUMA 278
MIG Wire Welder on Wheels + Accessory Kit

The Helvi PUMA 278 MIG welder, code 99825017A , is a high-precision welding machine that is aimed at both experienced professionals and semi-professional users. This extraordinary machine offers a series of exceptional performances that make it an ideal choice for a wide range of welding applications.

The Helvi PUMA 278 welding machine is capable of delivering a power of 4.8 kW with a duty cycle of 60% . This means that it can provide a continuous current variable from 30 A to 250 A , allowing it to easily handle welding jobs of different sizes and materials.

Compatible with iron , stainless steel , aluminum , flux cored wire and copper alloy wire in diameters from 0.8 to 1.2 mm , PUMA 278 offers the flexibility needed for a wide variety of uses.

Choose the model:

The Helvi PUMA 278 welding machine is available in two variants , selectable from the drop-down menu:

• Helvi PUMA 278 - 99825017A
• Helvi PUMA 278 + Accessory Kit - 99825017KA

Functional specifications

Heavy Duty MIG Welder

The power of 4.8 kW at 60%, allows Helvi Puma to handle heavy workloads continuously without overheating or losing performance. The welding regulation from 30 to 250 A , allows you to weld a wide range of material thicknesses with precision. The duty cycle at 40°C offers performances of 250 A @ 35% , 190 A @ 60% and 150 A @ 100% ensuring a reliable welding duration even in the most demanding situations.

Helvi welder designed to last over time

The Helvi PUMA 278 welding machine cod. 99825017A is designed to last, with an insulation grade H and an IP23S protection grade .

Compact size and easy to carry

Its compact dimensions of 46 x 84 x 71 cm make it easily transportable and suitable for limited work spaces, also thanks to its weight of 30 kg .

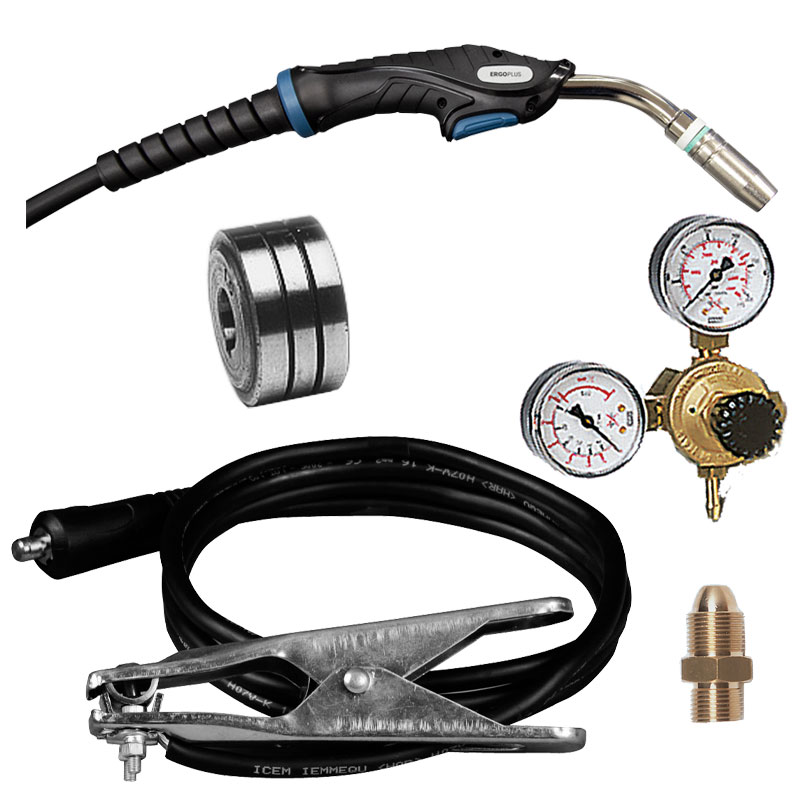

Helvi PUMA 278 + Accessory Kit

By choosing the Helvi PUMA 278 welding machine + Accessory Kit , the following are included :

• Trafimet Ergo Plus 25 MIG torch - 23000494
• Ground cable with clamp kit for connector - 43210253
• Pressure regulator - 22905049
• Cylinder adapter - 22910014

Types of welding possible with Helvi MONOMIG 186

• MIG: In MIG welding the electrode is made of a metal wire which is also used as a filler material and the unwinding of the spool occurs semi-automatically, unlike TIG welding.

MIG welding is a welding process in which a continuous electrode wire is fed automatically through a welding gun. During the process, the molten electrode wire is deposited on the joint between the metals to be joined , while a shielding gas, often a mixture of argon and CO2, is used to protect the weld area from oxidation and atmospheric impurities.

MIG welding is known for its versatility and ease of use . It is suitable for a wide range of materials, including steel, stainless steel, aluminum, and other non-ferrous metals. This process is widely used in industries such as automotive , structural steel construction , equipment manufacturing , and more.

Fields of application

• Light industry
• Constructions
• Maintenance services
• Building constructions
• Automotive
• Semi-professional use

Characteristics

• High quality MIG welder.
• Nominal power is 60% and amounts to 4.8 KW.
• Adjustable current from 30 to 250 A.
• The 40°C work cycle guarantees durability and reliability in welding.
• It is compatible with aluminum, stainless steel, iron, flux cored wire and copper alloy wire
• Professional quality

• THERE IS
• Certification
• Ecodesign
• Fans on Demand
• Power generator friendly
• Display
• Line Voltage Compensation
• Set & Weld
• MIG
• Animated Wire
• Spools from 5 ÷ 15 kg
• Synergistic control
• Gas/No Gas

HELVI: Italian excellence in welding

Helvi SpA is an Italian company belonging to the Beta group. Based in Sandrigo, in the province of Vicenza, this Italian manufacturing company specializes in industrial welding machines , plasma cutting machines, professional battery chargers and accessories .

Helvi video presentation

Supplied with kit 99825017A

• Puma 278 MIG torch - cod. 23000494
• Ground cable 25 mmq 3 m - code 43210253
• Mini CO2/Argon pressure regulator 2 manometers - code 22905049
• Cylinder adapter - code 22910014

Compatible Accessories

• Ground cable with clamp 50 mm² 25 mm² 3.0 m - 43210132K
• Ground clamp type 300A - 22110033
• Electrode holder clamp type 202 - 22110010
• Trafimet Ergo Plus 25 3 m - 23000494
• Trafimet Ergo Plus 25 4 m - 23000495
• Wire press roller Ø 30 mm - 33805007
• Roller for iron and stainless steel 0.6 - 0.8 mm Ø 30 mm - 33805003
• Roller for iron and stainless steel 0.6 - 0.9 Ø 30 mm - 33805071
• Roller for iron and stainless steel 0.8 - 1.0 mm Ø 30 mm - 33805101
• Roller for iron and stainless steel 1.0 - 1.2 mm Ø 30 mm - 33805005
• Roller for cored wire 1.0 - 1.2 mm Ø 30 mm - 33805067
• Aluminum roller 0.8 - 1.0 mm Ø 30 mm - 33805104

Safety Accessories

• Pair of professional MIG/MMA gloves - 21905134
• Vision 2.1: Auto Darkening Mask - 21905100
• Sky 2.0: Auto-darkening mask - 21905125
