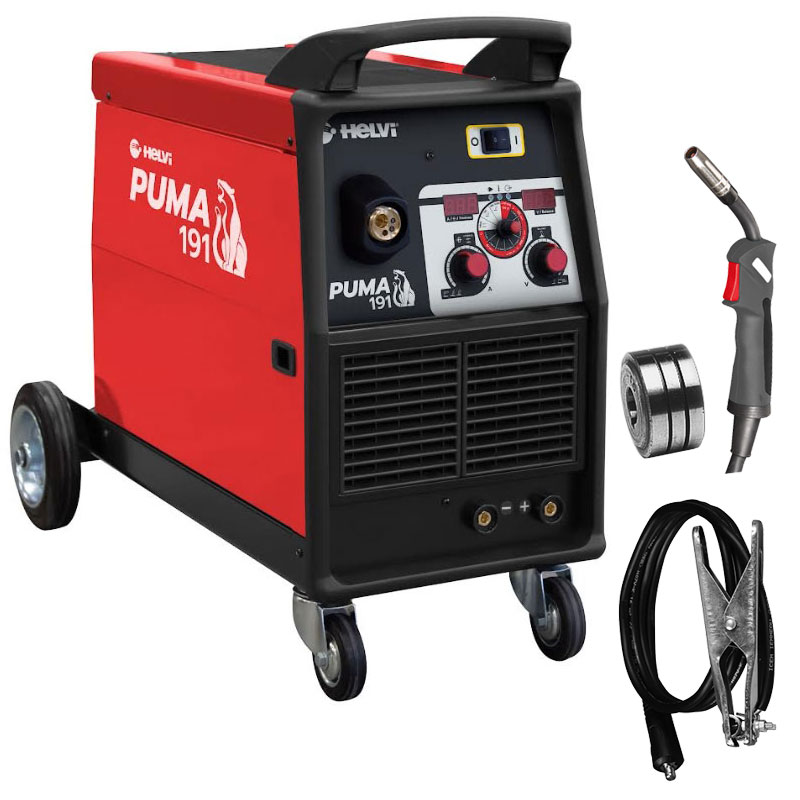

Helvi PUMA 191
Multiprocess Welder on Wheels + Accessory Kit

Helvi PUMA 191 - Semi-professional Multiprocess MIG MMA and TIG Welder. ACCESSORIES INCLUDED.

The Helvi PUMA 191 semi-professional welder is a powerful and versatile machine designed to meet the welding needs of professional and hobbyist customers. The Helvi PUMA 191 is a single-phase welder with 60% power at 2.3 kW , adjustable current from 5 to 180 A depending on the welding process, and a 40°C duty cycle that guarantees durability and reliability .

The Helvi PUMA 191 welding machine is compatible with iron , aluminium , stainless steel , copper alloy and flux cored wire with diameters of 0.6 ÷ 1.0 mm , offering the flexibility needed for a variety of welding projects.

Functional specifications

Multiprocess welding machine

Helvi PUMA 191 is a multi-process direct current welder capable of carrying out MIG continuous wire , MMA coated electrode and TIG welding.

PUMA 191 Heavy Duty

The 2.3 kW power at 60% allows this semi-professional welder to handle heavy workloads continuously without overheating or losing performance. With an adjustable output voltage from 25 to 180 A in MIG , from 20 to 180 A in MMA and from 5 to 180 A in TIG , this machine allows you to weld a wide range of material thicknesses with precision. The duty cycle at 40°C offers performance of 180A @ 20%, 105A @ 60% and 75A @ 100% , ensuring reliable welding life even in the most demanding situations.

Helvi Semi Professional

The Helvi PUMA welding machine cod. 99820065 is designed to last, with an insulation grade H and an IP22S protection grade .

Lightweight and Portable Welder

Its compact dimensions of 46 x 77 x 66 cm make it easily transportable and suitable for limited work spaces , also thanks to its weight of 33 kg .

Types of welding possible with Helvi PUMA 191

• MIG : in MIG welding the electrode is made of a metal wire which is also used as a filler material and the unwinding of the spool occurs semi-automatically.
• MMA : also known as coated electrode welding, it is certainly the most common welding method in non-professional environments or in processes that do not require particular quality and productivity performance. This type of welding machine is easier to use, although it produces less precise results from an aesthetic standpoint than other welding methods.
• TIG : Wire welding is highly productive because, thanks to the wire's length, it doesn't require constant interruptions for wire replacement, allowing for more continuous work. MIG and MAG wire welders are types of electric arc welding in a gaseous atmosphere, while TIG welding uses rods as filler material (held by the operator) and uses argon or helium.

Fields of application

• Light industry
• Constructions
• Maintenance services
• Building constructions
• Automotive
• Semi-professional use

Characteristics

• High quality multi-process welding machine.
• Nominal power is 60% and amounts to 2.3 KW.
• Adjustable current from 5 to 180 A.
• The 40°C working cycle guarantees durability and reliability in welding.
• It is compatible with aluminum, stainless steel, iron, flux cored wire and copper alloy wire
• Professional quality

• THERE IS
• Certification
• Ecodesign
• Fan on Demand
• Power generator friendly
• Display
• Line Voltage Compensation
• Set & Weld
• MIG
• Animated Wire
• Spools from 5 ÷ 15 kg
• Synergistic control
• Gas/No Gas
• Synergistic control
• Adjustable Hot Start
• Anti-Stick
• Synergistic control
• Lift ARC

HELVI: Italian excellence in welding

Helvi SpA is an Italian company belonging to the Beta Group. Based in Sandrigo, in the province of Vicenza, this Italian manufacturing company specializes in industrial welding machines , plasma cutting machines, professional battery chargers , and accessories .

Helvi video presentation

Compatible Accessories

• Ground cable with clamp 25 mm² 16 mm² 2.0 m - 43210138K
• Welding cable with electrode holder 25 mm² 16 mm² 3.0 m - 43205028K
• Ground clamp type 200A - 22110007
• Electrode holder type 202 - 22110010
• TIG torch 4 m - 23020173
• MIG 15 Torch 3 m - 23000491
• Wire press roller Ø 30 mm - 33805007
• Roller for iron and stainless steel 0.6 - 0.8 mm Ø 30 mm - 33805003
• Roller for iron and stainless steel 0.6 - 0.9 Ø 30 mm - 33805071
• Roller for iron and stainless steel 0.8 - 1.0 mm Ø 30 mm - 33805101
• Roller for iron and stainless steel 1.0 - 1.2 mm Ø 30 mm - 33805005
• Roller for cored wire 1.0 - 1.2 mm Ø 30 mm - 33805067
• Aluminum Roller 0.8 - 1.0 mm Ø 30 mm - 33805104

RECOMMENDED Safety Accessories

• Pair of Professional MIG/MMA Gloves - 21905134
• Vision 2.1: Auto-Darkening Mask - 21905100
• Sky 2.0: Auto-Darkening Mask - 21905125
