Genset LT 7000 SSH-K
Hybrid Light Tower with Lithium Battery
MPN: LT 7000 SSH-K
48V - 7.2 kW (kVA)
11 HP
DIESEL
Warranty 2 years
Shipped on Pallet

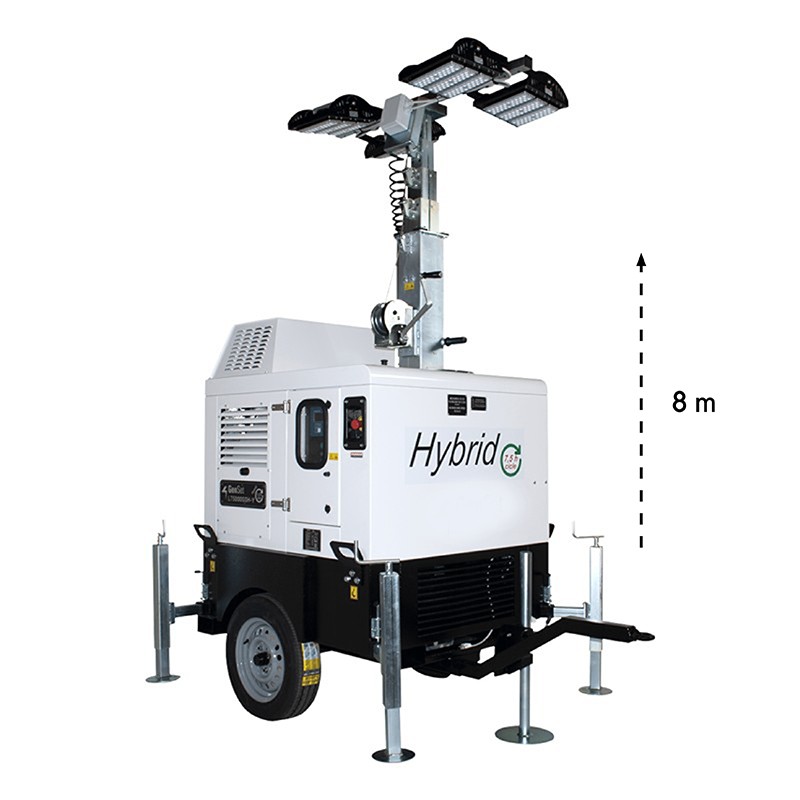

Genset LT 7000 SSH-K - Hybrid Light Tower with Lithium Battery
Genset LT 7000 SSH-K is a super silent , independent , light and compact light tower, equipped with True Hybrid technology , equipped with a variable speed Kubota engine and low voltage permanent magnet alternator for working in complete safety .
Maintenance is minimal , it allows for great operating autonomy and significant fuel savings with reduced CO2 emissions , representing the future of sustainability .
Technical specifications
Genset LT 7000 SSH-K is a hybrid light tower powered by a lithium battery and a diesel engine . The batteries that power the lamps are of the Lithium Li-NMC type, with a power of 7.2 kW, 48 V and 148 A.
This light tower is equipped with a 2-cylinder Kubota Z482 engine, with a displacement of 479 cc , which produces a maximum power of 11.1 HP at 3000 RPM , allows for an electric start and a water cooling system with a fuel consumption at 80% of 2.6 L/h .
The diesel engine has variable speed and is super quiet , only 67 dB(A) . The lighthouse tower can be extended to a height of 8 metres and can rotate 340° .
True hybrid technology
This technology features a lithium battery combined with fast charging and high performance.

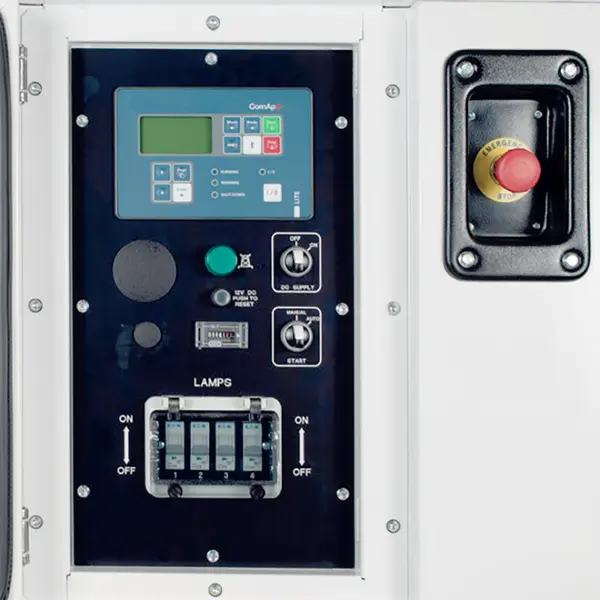

Control Panel
The control panel features an hour meter , an emergency stop button, a fuel level indicator, a lamp switch and an automatic engine protection shutdown system in the event of:
- Low oil pressure
- Battery charger failure

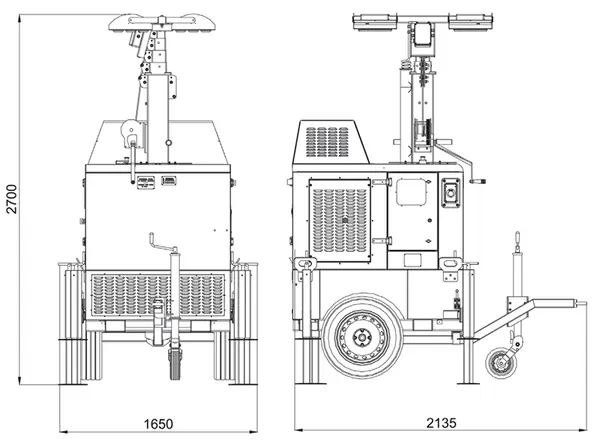

Genset LT 7000 SSH-K light tower dimensions
Characteristics
- Lithium battery
- Variable speed diesel engine
- Super silent model
- Built-in 12V battery
- 48V battery for lamps
- Emergency stop button
- 5 stabilizers
- Extendable up to 8 m
- Insulation class H
- Forklift pockets
- Lifting eyelets
- Room temperature 40°C
- Altitude 1000 m
- Mechanical protection IP 23
- Fuel tank capacity 100 L
- Average consumption per light/hour 0.28 L/h (4 x 150 W) - 0.55 L/h (4 x 300 W)
- Battery charging time 1h 40' (4 x 150 W) - 1h 55' (4 x 300 W)
- Battery life 12 h ( 4 x 150 W) - 6 h (4 x 300 W)
- Wind resistance 80 km/h
- Total battery life 350 hours (4 x 150 W) - 190 hours (4 x 300 W)
Fields of application
- Night maintenance work
- Emergency response
- Civil Protection
Technical Data
| Lamp Power Supply | 48V |
| Autonomy | 350 hours (4 x 150 W) - 190 hours (4 x 300 W) |
| Charging Time | 1h 40' (4 x 150 W) - 1h 55' (4 x 300 W) |
| Battery Life | 12h (4 x 150W) - 6h (4 x 300W) |
| Fuel Tank | 100 L |
| Battery Type | Lithium Li-NMC |
| Max Power | 7.2 kW |
| Stabilizers | 5 |
| Motor | Kubota Z482 |
| Fuel | Diesel |
| Cooling System | Waterfall |
| Engine RPM | 3000 RPM |
| Fuel Consumption | at 80% 2.6 L/h |
| Number of Cylinders | 2 |
| Power | 11.1 HP |
| Displacement | 479 cc |
| Start-up | Electric |
| Wind Resistance | 80 km/h |
| Insulation Class | H |
| Noise | 67 dB(A) |
| Protection Class | IP 23 |
| Room temperature | 40° C |
| Altitude | 1000 m |
| Dimensions | 213.5 x 165 x 270 cm |
| Max Dimensions | 213.5 x 274 x 925 cm |
| Weight | 830 kg |
Technical Data
| Lamp Power Supply | 48V |
| Autonomy | 350 hours (4 x 150 W) - 190 hours (4 x 300 W) |
| Charging Time | 1h 40' (4 x 150 W) - 1h 55' (4 x 300 W) |
| Battery Life | 12h (4 x 150W) - 6h (4 x 300W) |
| Fuel Tank | 100 L |
| Battery Type | Lithium Li-NMC |
| Max Power | 7.2 kW |
| Stabilizers | 5 |
| Motor | Kubota Z482 |
| Fuel | Diesel |
| Cooling System | Waterfall |
| Engine RPM | 3000 RPM |
| Fuel Consumption | at 80% 2.6 L/h |
| Number of Cylinders | 2 |
| Power | 11.1 HP |
| Displacement | 479 cc |
| Start-up | Electric |
| Wind Resistance | 80 km/h |
| Insulation Class | H |
| Noise | 67 dB(A) |
| Protection Class | IP 23 |
| Room temperature | 40° C |
| Altitude | 1000 m |
| Dimensions | 213.5 x 165 x 270 cm |
| Max Dimensions | 213.5 x 274 x 925 cm |
| Weight | 830 kg |
