Iseki 225-237
4x4 Front Lawn Mower

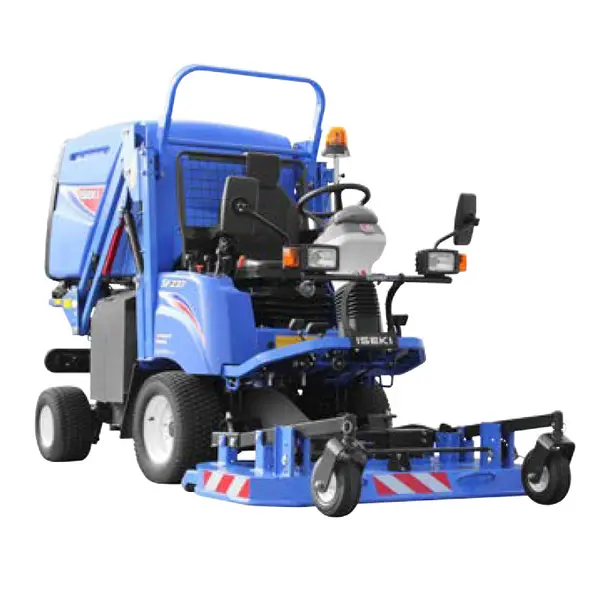

Iseki SF 225-237 - 4x4 Diesel Front Lawn Mower

The Iseki SF 225-237 lawn tractor presents itself as a reliable and efficient gardening tractor. On this Iseki SF 225-237 tractor the cutting height is adjustable from 25 to 120 mm , allowing users to easily adapt the cutting length to different soil needs.

This adjustment flexibility offers precise control over the length of the turf , ensuring optimal results on various surfaces.

The locking differential helps improve stability, ensuring safer and more precise driving. The cutting width is equally customizable, with options from 137 to 152 cm and the possibility of choosing between CENTRAL DISCHARGE or MULCHING ( see the attached accessories sheet ). This versatility allows users to adapt the Iseki SF 225-237 lawn tractor to the specific needs of their garden or land.

Models available

• SF 225 tractor - cod. SF2,000
• SF 237 tractor - cod. SF2.100

  To choose the EXHAUST, equipment and optional accessories, please consult the attached TECHNICAL DATA SHEET.



Functional specifications

Differential with lock

The locking differential helps improve the Iseki SF225-237's traction and handling, ensuring optimal control over varied terrain. The cutting width, available from 137 to 152 cm , offers flexible options to adapt to the size of the land and user preferences. The 2.15 m (Iseki SF225) or 2.25 m (Iseki SF237) high basket lifting system simplifies the emptying process , adding convenience to daily operations.

Hydrostatic transmission with double pedals

The hydrostatic transmission with double pedals offers adjustable driving with a maximum speed of 15 km/h forward and 10 km/h in reverse . The mechanical four-wheel drive with manual or automatic engagement ensures optimal traction on various terrains , while the differential lock improves stability on difficult terrain.

Safety and brightness

Operator safety is a priority with the folding protective frame and lighting system to ensure visibility during night operations. The adjustable seat of this Iseki lawn tractor offers high comfort. For safe driving, seat belts for safe driving.

Adjustable cutting and collection

Iseki SF 225-237 has deck with cardan transmission , ''counter-rotating'' blades and central exhaust. The cutting width of the Iseki SF225 model is 137 cm with two blades while that of the Iseki SF237 model is 152 cm with 4 ''floating'' blades on a fixed disk and manual or electro-hydraulic adjustment.

Both versions have cutting height adjustable from 25 to 120 mm via a single lever.

The collection basket has a hydraulic tipping height of 2.15 m . (SF225) or 2.25 m (SF237) with a grass collector capacity of 950 L equipped with a hydraulic grass compaction system .

Finally, both models have an independent 2000 rpm front PTO with hydraulic engagement while the turbine works at 2100 rpm for the SF 225 model and at 2650 rpm for the SF 237 model.

Stage V Diesel engine

The tractor is available with two different engines: Iseki SF225 is equipped with a 1123 cc 3-cylinder Stage V Iseki E3112 diesel engine , with a maximum power of 24 HP. In the case of the SF237 model, we find a 1826 cc 3-cylinder Common-Rail diesel Stage V Iseki E3FH turbocharged engine with a maximum power of 35 HP . Both engines are designed for reliable and environmentally friendly performance, with advanced anti-pollution systems.

Characteristics

• Professional diesel tractor
• Cutting height from 25 to 120 mm
• Differential with lock
• Cutting width 137-153 cm
• Collection basket 950 L
• Stage V Diesel engine
• Front PTO
• Basket lifting system
• Steering with power steering, turret and double adjustment
• Hydrostatic Transmission - Double Pedal
• Mechanical all-wheel drive with manual/automatic engagement
