Active AC 950 HD Honda
87 cm flail mower
Honda 11 HP engine

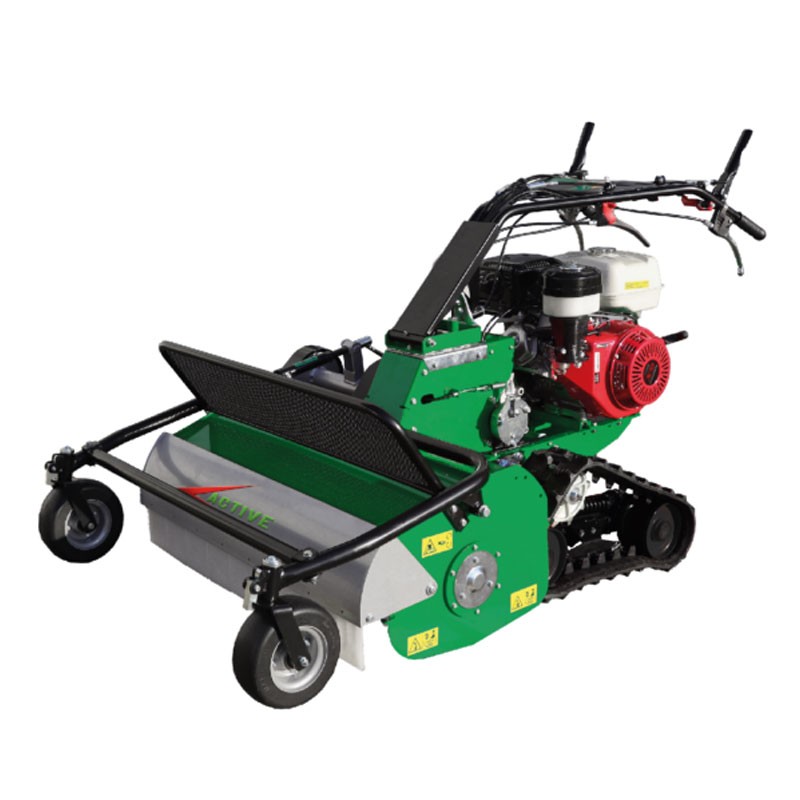

Active AC 950 HD Honda - 87 cm flail mower with 389 cc Honda engine

Active AC 950 HD is a versatile flail mower designed primarily for intensive agricultural use but can also be used for the gardens of the most demanding customers. This machine shreds and shreds grass, prunings, branches and small shrubs , promoting rapid decomposition of plant material and leaving the soil clean for a long time.

Advanced technical features , such as the staggered blade rotor and a track traction system with traction compensators, offer high performance on all types of terrain and slopes.

Features in summary

1. Gear Shift Lever
2. Automatic Track Pulling thanks to the springs
3. Tension compensators for automatic belt tensioner adjustment

1. Rotor with 4-Knife Selection
2. Tilting lock to keep the mouth close to the ground during the ascent phase
3. Ergonomic handlebar Adjustable in height and laterally with a single lever

Functional Specifications

Honda GX390 389cc Engine

The Active AC 950 HD flail mower is equipped with a Honda GX390 engine , recognized for its reliability and power . With a power of 11 HP (8.2 kW) and a displacement of 389 cc , ensuring high performance and making it perfect for tackling intensive work, both in the garden and in agricultural contexts.

Cutting Width 87 cm

This Active flail mower offers excellent performance thanks to the 48-blade rotor cutting system , which guarantees effective shredding action on different types of vegetation. The 87 cm working width allows you to cover large surfaces in less time, while the progressive adjustable cutting height from 5 to 80 mm allows you to adapt to different needs and soil conditions.

Gearbox with 3 Forward + 1 Reverse Gears

The mechanical gearbox offers 3 forward gears and 1 reverse gear , allowing a variable forward speed from 1.26 - 2.10 - 2.60 - 4.50 km/h , while the reverse speed is 1.26 or 2.60 km/h .

Mechanical wheel lock

Rubber tracks ensure excellent traction, while the mechanical rear wheel lock and transmission braking system increase safety. Pull compensators , combined with compensation springs , allow automatic adjustment of the belt tensioner, preventing slippage and improving machine control.

Agricultural and Domestic Shredders

The Active flail mower is designed to effectively chop any type of vegetation , thanks to the knives mounted on a rotor with 4 staggered sections in steel . This configuration optimizes processing, reducing the engine's power absorption and fuel consumption. The rear traction adjustment system and the axle load compensators guarantee grip and stability on every slope.

Ergonomic and Adjustable Handlebar

The ergonomic handlebar , adjustable in height and laterally , is equipped with 5 anti-vibration bushings to ensure comfort and safety even during prolonged use and on uneven terrain.

Active: 30 years of excellence made in Italy

For 30 years, Active has been the Made in Italy company specialized in the production of engines and equipment for gardening and agriculture , such as brush cutters , chainsaws and lawnmowers , offering products of excellent quality. The continuous research and development of new technologies allows this 100% Italian brand to stand out among the leaders in the sector, combining innovation , sustainability and superior performance .

Watch the Videos

Characteristics

• Honda GX390 389cc Engine
• Traction with tracks
• 3 forward + 1 reverse gear gearbox
• Cutting width 87 cm
• Working height from 5 to 80 mm
• 48 blade rotor
• Track and brake lock
• Adjustable handlebar with 5 anti-vibration pads
• Weight 240 kg
