Biemmedue Orion
Steam Cleaner and Industrial Vacuum Cleaner

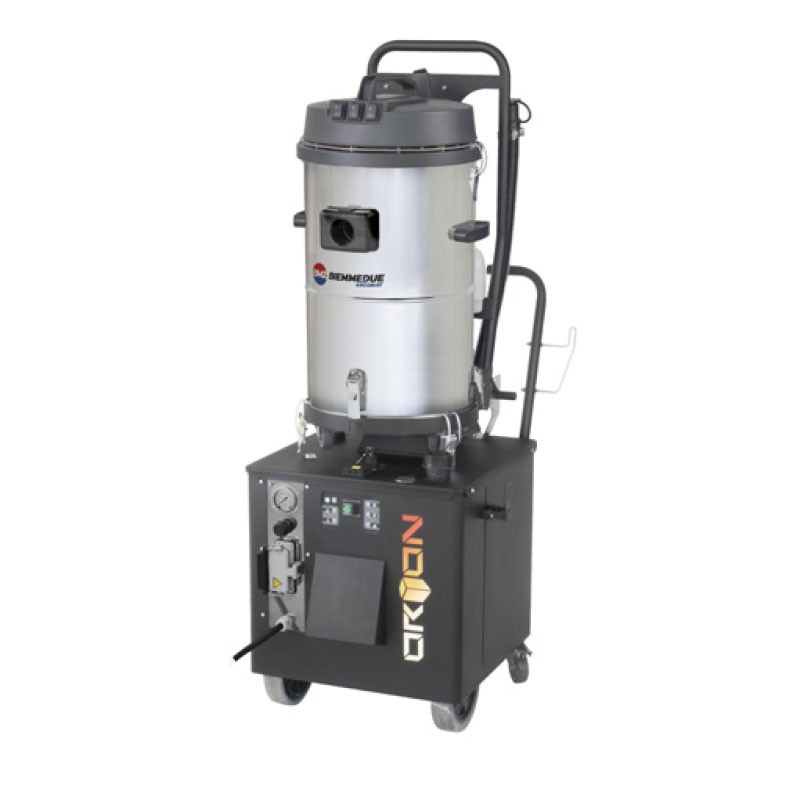

Biemmedue Orion - Steam and Suction Cleaner

The Biemmedue Orion steam cleaner is an extraordinary unit which, with its code. 10OR000 and the matt black colour, stands out for its exceptional cleaning and hygiene capabilities. Featuring a pressure rating of 10 bar and a steam temperature of 190°C , this suction steam cleaner ensures high-quality cleaning performance on a variety of surfaces.

The Biemmedue Orion steam cleaner is ideal for cleaning machinery in heavy industry , moulds, workshop equipment and worktops . Its versatility makes it suitable for all types of cleaning and sanitization operations, even in confined spaces.

Functional specifications

AISI 316 stainless steel boiler

The AISI 316 stainless steel boiler , PED certified , gives the Biemmedue Orion professional steam cleaner superior robustness and corrosion resistance .

Continuous steam production

Steam production occurs continuously , with an automatic filling system that allows uninterrupted work for up to 24 hours without interruptions.

Flexible steam regulation

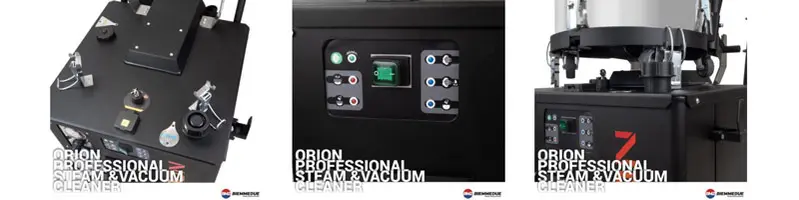

The unit offers flexible adjustment of steam , detergent and hot water, with the ability to activate and deactivate these functions directly from the gun handle. A practical LED indicator on the machine provides clear information on the current setting.

Hot detergent injection

The Biemmedue Orion features a series of advanced functions, such as the injection of hot detergent and the injection of superheated water directly from the boiler. These features further improve cleaning effectiveness, allowing you to tackle a variety of tasks with ease.

Compact and easy to move

The compactness and ease of handling make the Biemmedue Orion extremely practical for industrial and commercial applications. The automatic drainage of the boiler, controlled by a convenient switch on the machine, further simplifies maintenance operations.

Can be combined with 1/3 motors

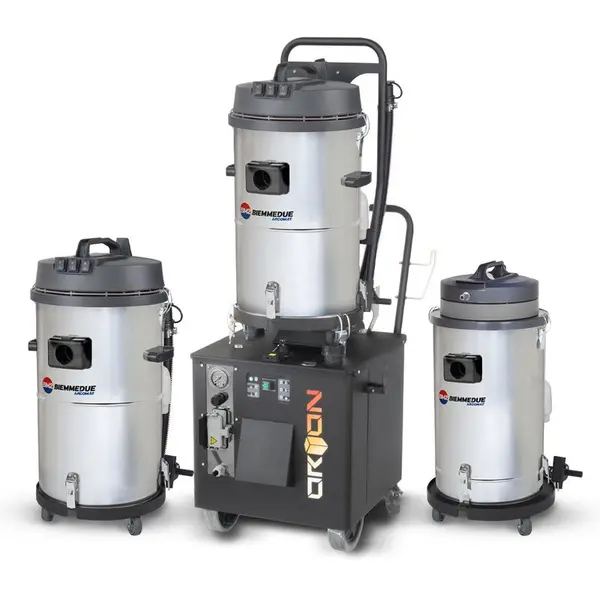

The unit can be combined with 1/2/3 motor aspirators , with or without detergent injection , thanks to the quick coupling system on the machine. The modular construction system facilitates maintenance, ensuring long life and optimal performance over time.

Optional

• Combined wet/dry vacuum cleaner with injection/extraction machine: Biemmedue EX 40 F (1 motor)
• Combined wet/dry vacuum cleaner with injection/extraction machine: Biemmedue EX 50 F (2 motors)
• Wet/wet vacuum cleaner for professional use: Biemmedue SM 50 F

ACCESSORIES ON REQUEST - To be combined with aspirator

• Flexible hose 5 m - B.CRCP00002
• Sponge Filter - for EX 40 and EX 50
• Nylon Filter - 004.414

Accessories on request - Depending on the aspirator chosen

• Hand nozzle + 1.8 m hose - for EX 40/50
• Floor/carpet launcher - for EX 40/50
• Cold seat washer brush -
• Polyester filter with filter holder ring
• Kit Ø 40 mm

Accessories on request for Orion

• Industrial nozzle - S.010068
• Rubberized frame (150 mm) for industrial squeegee - S.010014
• Adapter - B.CCCP00006
• White towel - S.010035
• Industrial extension tube - S.010002
• Industrial brush (400 mm) - S.010005
• Carpet frame for industrial brush (400 mm) - S.010009
• Floor frame for industrial brush (400 mm) - S.010010
• Parquet frame for industrial brush (400 mm) - S.010011
• Industrial squeegee (150 mm) - S.010012
• Bristle frame (150 mm) for industrial squeegee - S.010013
• Vertical nozzle - S.010016
• Horizontal nozzle - S.010017
• Transparent nozzle (large S-connection) - S.010031
• Transparent nozzle (small S-connection) - S.010032
• Ecological detergent - S.180002

Industrial accessories - on request

• Flexible hose 5 m - B.CRCP00003
• Curved industrial lance (450 mm) - S.250039
• Industrial lance (900 mm) - S.250012
• Extension for Lance - S.250040
• Lancia Industriale Jet Largo - S.250041
• Twister 10 bar - S.010173
• Industrial squeegee (500 mm) - S.010121
• Brush lance with handle - 10AC006
• Toothbrush (diam. 32.6 mm) with phosphor bronze bristles - S.010027
• Toothbrush (diam.60 mm) with polyester bristles - S.010028
• Toothbrush (diam.60 mm) with stainless steel bristles - S.010029
• Toothbrush (diam.60 mm) with phosphor bronze bristles - S.010030

Barrel washer KIT (DAMIGIANA) - OPTIONAL cod. 10Ac014

Cleaning barriques with steam is an effective sanitization technique that eliminates wine residues and possible microbial contamination. The high temperature steam penetrates the wood , destroying germs and restoring the hygiene of the demijohns. This method respects the integrity of the wood , avoiding the use of aggressive chemicals.

Biemmedue designed the Lavabarrique system, a technology that allows dry steam to penetrate through the only hole available in the oak barrel. Taking advantage of the high temperature of the steam, it sanitizes the internal walls

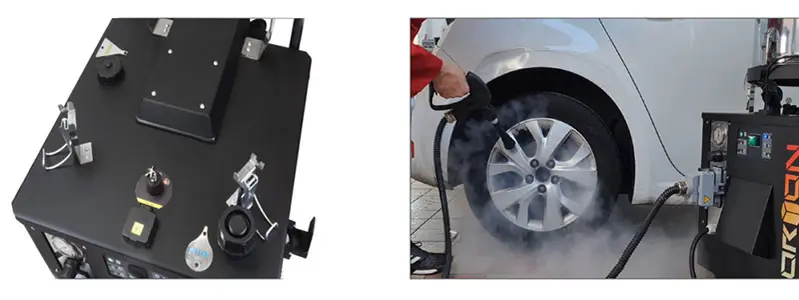

CAR WASH and detailing KIT - Optional

• Industrial nozzle - S.010068
• Toothbrush (diam.60 mm) with nylon bristles - S.010146
• Toothbrush (diam.30 mm) with nylon bristles - S.010147
• Soft bristle toothbrush - S.010046
• Reducer - B.CCCP00006
• Transparent nozzle (small S-connection) - S.010032
• Cold seat washer brush - 10AC002

car cleaning and datailing

Watch the video

Characteristics

• Industrial steam cleaner
• Robust structure
• Continuous steam production 24/24 hours
• Hot detergent injection
• Easy to move
• Ideal for industrial cleaning of tools and workbenches
• Can be combined with aspirators
• Ideal for cleaning demijohns
• Can be used for carwash and detailing
