Fimap FS90
Compact Industrial Sweeper
Battery/Diesel
12320 ÷ 13860 m²/h
Container capacity 400 L
Warranty 2 years
14 days to change your mind
Shipped on Pallet

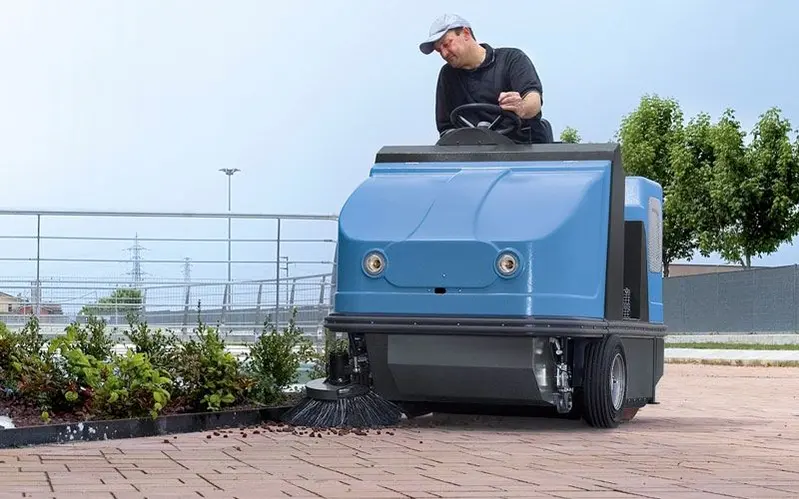

Fimap FS90 - Industrial Compact Sweeper
The Fimap FS90 series of ride-on compact sweepers are among the most compact industrial sweepers of their kind and are characterized by a working width of 90 cm thanks to the central brush with which they are equipped.
The sweepers of the Fimap FS90 series are the perfect machines for cleaning both large surfaces and narrow or cumbersome passages and are designed to easily sweep solid debris and light dust on surfaces of up to 30,000 m² , in industrial environments , car parks and camping sites .
These Compact Industrial Sweepers are available both in the 36 V battery version (Fimap FS90 B) and in the Diesel powered version (Fimap FS90 D) which can be selected from the drop-down menu at the top of the page.
The Fimap FS90 ride-on sweepers, together with the same ones in the FS80 and FS110 series which stand out for their relative working width, are born with a box frame built around the central brush and with extremely small dimensions , thus allowing compactness to be combined with great power.
These compact ride-on sweepers are designed to ensure ease of use and operator comfort. The Fimap FS90 are designed down to the smallest detail with a driving position accessible from both sides for maximum ease of use even in confined spaces and the dashboard is designed to have all the necessary controls always within reach.
Functional specifications
Functional dashboard like in a car
The Fimap FS90 sweeper models have an automotive-style dashboard , with immediate display of all functions. The newly designed steering is designed to make driving operations extremely comfortable. Furthermore, directly on the dashboard there is a control for activating the electric filter shaker which allows you to always keep the filter clean even during use.
Work up to 4 hours without stopping

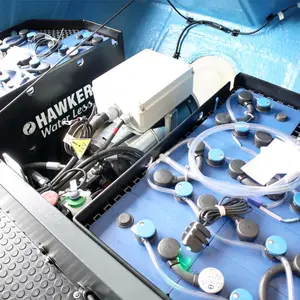

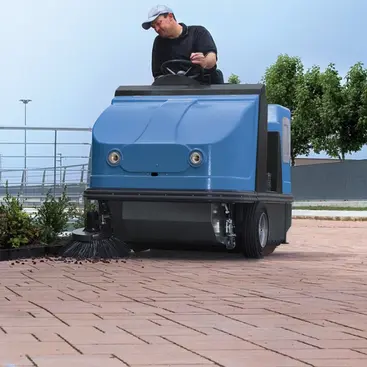

The innovative hydraulic system was designed to increase performance and reduce energy consumption by up to 35% compared to the previous model. For the battery-powered FS90 B model (pictured) , there is an increase in performance for work up to 4 hours.
Driving lights
The light from the headlights makes Fimap FS90 sweepers more visible when moving, for greater safety when used in environments where other people are present.

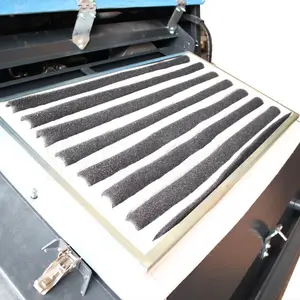

Effective filtration in any condition
The fabric bag filter with a large filtering surface of 8 m² promises long life as well as excellent suction results even where a high quantity of fine dust is present. This filter is easily removable, making it simple to both check its condition and replace it, taking into consideration that if the filter shaker is used regularly, no maintenance will be necessary.

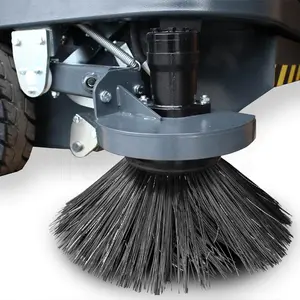

Side Brush
The side brush of this Battery or Diesel Industrial Sweeper retracts in the event of accidental impacts, thus avoiding possible damage and can be adjusted in inclination so as to adapt perfectly to cleaning along the edges.
Main Brush
The height and pressure of the central brush of this Fimap FS90 ride-on sweeper are adjustable via a convenient knob located near the brush itself so as to adapt its position based on wear, allowing its life cycle to be extended.
Big Wheels
The large diameter wheels, in addition to conducting mechanical stress, increase the comfort of the Fimap FS Compact Sweeper and are equipped with hydraulically controlled brakes . Their sturdy support helps to maintain the operating characteristics unaltered.
Adjustable seat
The seat of the Fimap FS90 Battery or Diesel Sweeper is adjustable, allowing you to move the seat closer or further away from the pedals and is also accessible from both sides to ensure maximum ease of use even in narrow corridors or cluttered environments.
Models available
Below are the two Fimap FS80 models available and selectable from the drop-down menu at the top of the page:
- FS90 B - Battery operated
- FS90 D - Diesel
Main features
- Compact ride-on sweeper
- Agile even in narrow passages
- Functional dashboard
- Lighthouses
- Large filtering surface of 8 m²
- To collect solid debris and dust
- Ideal for industry, car parks, camping
- Working Width 90 cm (without side brushes)
- Working width with side brushes 122 cm
Technical data
| Model | FS90 B | FS90 D |
| Power Supply | 36V 480Ah / 4000W | Diesel |
| Motor | - | Perkins - 14 HP |
| Hourly Yield | 12320 m²/h | 13860 m²/h |
| Total Working Width | 122cm | 122cm |
| Central Brush Working Width | 90cm | 90cm |
| Filtering Surface | 8 m² | 8 m² |
| Forward speed | 0÷9 km/h | 0÷9 km/h |
| Max. slope | 14% | 14% |
| Container capacity | 400 L | 400 L |
| Discharge Capacity | Hydraulic | Hydraulic |
| Unloading height | 140cm | 140cm |
| Number of side brushes Ø | 1-2/500 | 1-2/500 |
| Machine dimensions | 202 x 143 x 123 cm | 202 x 143 x 123 cm |
| Machine weight | 810kg | 770 kg |
Technical data
| Model | FS90 B | FS90 D |
| Power Supply | 36V 480Ah / 4000W | Diesel |
| Motor | - | Perkins - 14 HP |
| Hourly Yield | 12320 m²/h | 13860 m²/h |
| Total Working Width | 122cm | 122cm |
| Central Brush Working Width | 90cm | 90cm |
| Filtering Surface | 8 m² | 8 m² |
| Forward speed | 0÷9 km/h | 0÷9 km/h |
| Max. slope | 14% | 14% |
| Container capacity | 400 L | 400 L |
| Discharge Capacity | Hydraulic | Hydraulic |
| Unloading height | 140cm | 140cm |
| Number of side brushes Ø | 1-2/500 | 1-2/500 |
| Machine dimensions | 202 x 143 x 123 cm | 202 x 143 x 123 cm |
| Machine weight | 810kg | 770 kg |
