Fiac AB 500 LONG LIFE
Compressor 500 Liters
15 Bar from 7.5 to 10 HP

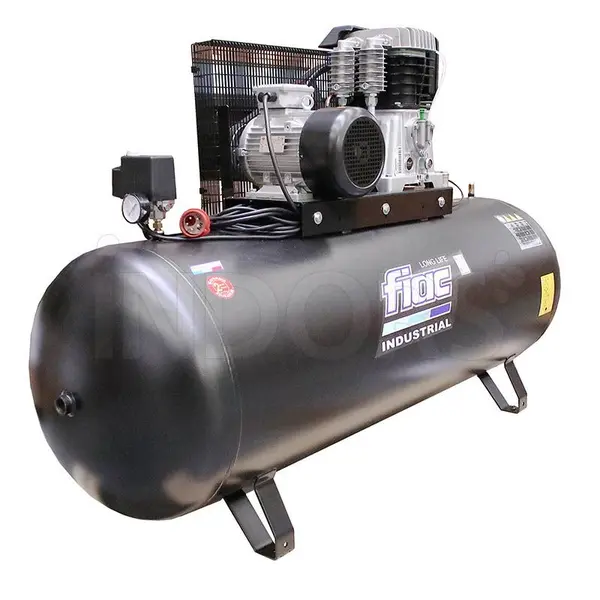

Fiac AB 500-998 LONG LIFE - Industrial Compressor Long Life 500 L from 7.5 to 10 HP

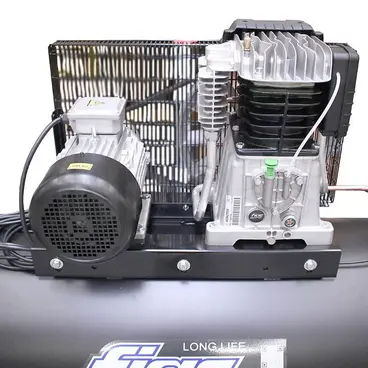

The Fiac AB 500-998 LLD industrial compressors of 7.5 HP (code 1121580351) and 10 HP (code 1121530165), are two three-phase 14 bar compressors equipped with belt transmission and equipped with an AB 988 pumping unit that operates at very low rpm . This feature helps to extend the life of the compressor over time, guaranteeing optimal performance.

Fiac AB Long Life compressors are designed with pistons and connecting rods carefully studied to reduce vibrations to a minimum . The optimized design, together with the perfect balancing of the crankshaft, ensures a prolonged life of the compressor over the years.

With a 500 L tank made of high-resistance steel sheet painted with epoxy powders, these Fiac AB-Long Life industrial compressors have a maximum pressure of 14 bar.

Available Models

Functional Specifications

LONG LIFE oil lubricated compressor

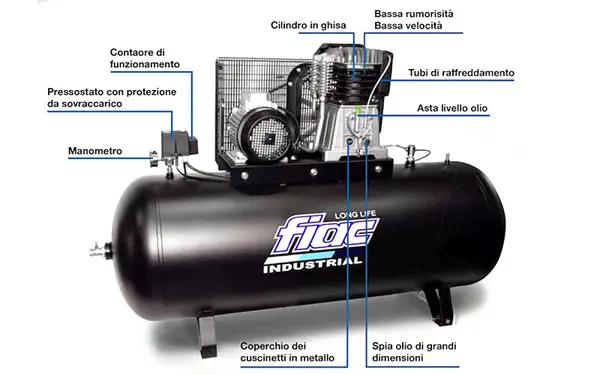

The compressor oil lubrication system is optimized to ensure efficient operation and require minimal maintenance over time, reducing friction to a minimum. The presence of the flywheel with helical blades contributes significantly to the reduction of the noise level , while the cooling system is further enhanced by the design of the cylinder head, equipped with large fins specifically designed to promote effective cooling.

Fiac AB 500-998 LLD compressors have a pressure switch that automatically turns the compressor on and off when the air pressure reaches certain preset levels, a fundamental function for maintaining a constant air pressure in the tank, allowing the user to use compressed air effectively and safely. In addition, the exhaust valve on the head facilitates the restart of the compressor.

Characteristics

• Three-phase compressor 400V Long Life
• Belt drive
• 2-cylinder two-stage engine
• Max pressure 14 bar
• Capacity 500 L
• Power from 7.5 to 10 HP
• Engine speed from 850 to 1000 RPM
• Flow rate from 730 to 840 L/min
• Noise level from 73 to 75 dB
