Hyundai 65532
Cummins Diesel Generator 93 kW
1500 rpm Silent
MPN: 65532
EAN: 8028815655323
400V - 93 kW
3900 cc
DIESEL
Warranty 2 years
Shipped on Pallet

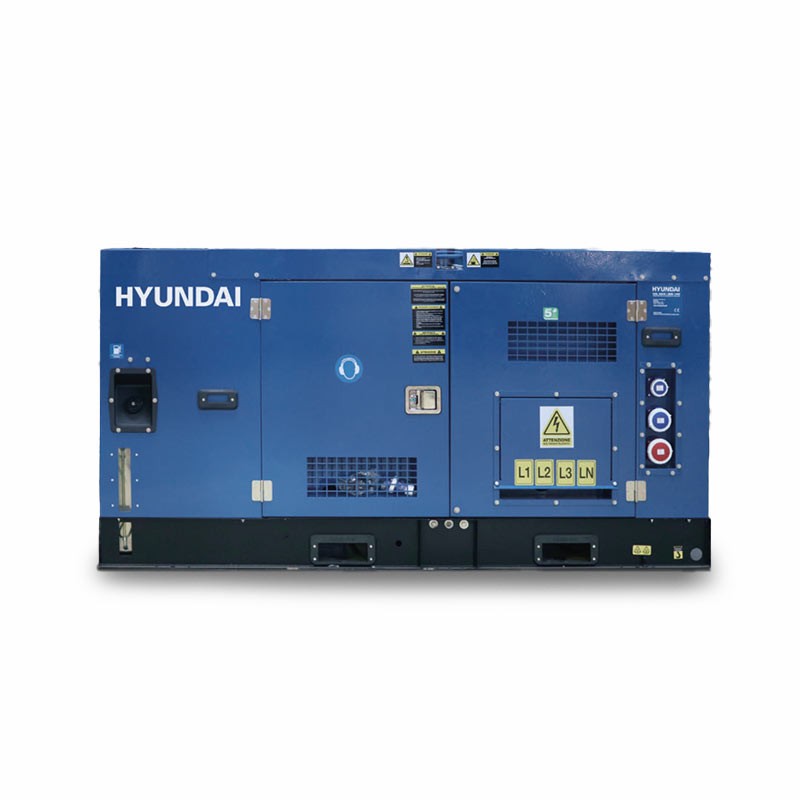

Hyundai 65532 - Cummins Diesel Generator 93 kW
The Hyundai 65532 is a silent three-phase generator with a nominal power of 93 kW , designed with the environment in mind. Engineered with low-impact materials , this generator features shock-absorbing mounts and advanced technologies to reduce noise . Equipped with a powerful diesel engine, a brushless alternator, and safety protections compliant with European standards , the Hyundai 65532 generator offers excellent performance and impeccable ease of use.
The 65532 generator represents excellence in performance and reliability, designed to ensure a continuous flow of power in a wide range of industrial and commercial settings. With a nominal power of 75 kVA - 60 KW cos φ 0.8 and a maximum power of 93 kVA - 75 KW cos φ 0.8 , this generator can effortlessly handle demanding workloads.
Functional specifications
Cummins 3900 cc Diesel Engine
Powered by a Cummins 4BTA3.9-G11 engine , this diesel- powered generator has a displacement of 3900 cc and features a 4-cylinder direct injection system . With 1500 rpm , the Hyundai 65532 engine ensures high performance and optimized fuel consumption. The fuel tank has a capacity of 120 L , offering extended autonomy.
Electric Start System
The 65532's electric starting system greatly simplifies the starting process and ensures reliability and safety. The Hyundai generator set is also equipped with a liquid cooling system that helps maintain an optimal operating temperature, reducing wear and optimizing performance .
Waterproof Control Panel
The generator's control system features a waterproof panel that offers protection against water and humidity, ensuring safe operation even in adverse weather conditions. Additionally, there is an emergency button to quickly shut down the unit in critical situations, ensuring maximum operational safety .
Soundproof Generator
The soundproofing enclosure of the Hyundai 65532 stationary generator significantly reduces the generator's noise level, not exceeding 85 dB at a distance of 7 m, making it suitable even for applications requiring a quiet environment.
Generator Lubricated 14 L Oil
The Hyundai 65532 is equipped with a 14L oil lubrication system to ensure adequate lubrication. The cooling system , with a capacity of 8.3L , helps keep temperatures under control, ensuring optimal engine performance.
Brushless Alternator
The alternator with which this Hyundai generator is equipped is brushless , a feature that ensures the machine's reliability and constant performance .
DeepSea DSE6120 control unit
The DeepSea DSE6120 control module offers advanced generator monitoring and control functions , including fault reporting and frequency and voltage regulation. The voltage regulator's frequency regulator protects devices sensitive to power surges.
Fixed Generator with ATS Predisposition
The dimensions of this Hyundai generator are 269 x 108 x 145 cm and the weight is 1350 kg . Easy to install, 65532 is set up for ATS use .
Characteristics
- Diesel Engine
- Liquid cooled
- Silenced
- Electric start
- Three-phase
- Waterproof roofing system
- Safety emergency button
- AVR regulator included
- Multifunction display
Fields of application
- Industry
- Garage
- Commercial buildings
Technical Data
| Model | LG60C |
| Power Supply | 400V |
| Nominal Power | 75 KVA - 60 KW cos φ 0.8 |
| Max Power | 93 KVA - 75 KW cos φ 0.8 |
| Engine RPM | 1500 RPM |
| Amperage | 108 A |
| Protection | IP23 |
| Engine Brand | Cummins |
| Engine Model | 4BTA3.9-G11 |
| Displacement | 3900 cc |
| Injection | Live |
| Cylinders | 4 |
| Start-up | Electric |
| Consumption 100% - 75% - 50% | 15 / 11.25 / 7.5 L/h |
| Fuel | Diesel |
| Tank Capacity | 120 L |
| Lubrication | 14 L |
| Cooling | Coolant |
| Refrigeration System | 12 L |
| Alternator | LK224G |
| Exciter | Brushless - Self-excitation |
| Control unit | DeepSea DSE6120 |
| ATS | Optional |
| Dimensions | 269 x 108 x 145 cm |
| Weight | 1350 kg |
Technical Data
| Model | LG60C |
| Power Supply | 400V |
| Nominal Power | 75 KVA - 60 KW cos φ 0.8 |
| Max Power | 93 KVA - 75 KW cos φ 0.8 |
| Engine RPM | 1500 RPM |
| Amperage | 108 A |
| Protection | IP23 |
| Engine Brand | Cummins |
| Engine Model | 4BTA3.9-G11 |
| Displacement | 3900 cc |
| Injection | Live |
| Cylinders | 4 |
| Start-up | Electric |
| Consumption 100% - 75% - 50% | 15 / 11.25 / 7.5 L/h |
| Fuel | Diesel |
| Tank Capacity | 120 L |
| Lubrication | 14 L |
| Cooling | Coolant |
| Refrigeration System | 12 L |
| Alternator | LK224G |
| Exciter | Brushless - Self-excitation |
| Control unit | DeepSea DSE6120 |
| ATS | Optional |
| Dimensions | 269 x 108 x 145 cm |
| Weight | 1350 kg |
