Hyundai 65530
1500 rpm 93 kW Diesel Generator
Silent 4330 cc
MPN: 65530
230/400V - 31/93 kW
4330 cc
DIESEL
Warranty 2 years
Shipped on Pallet

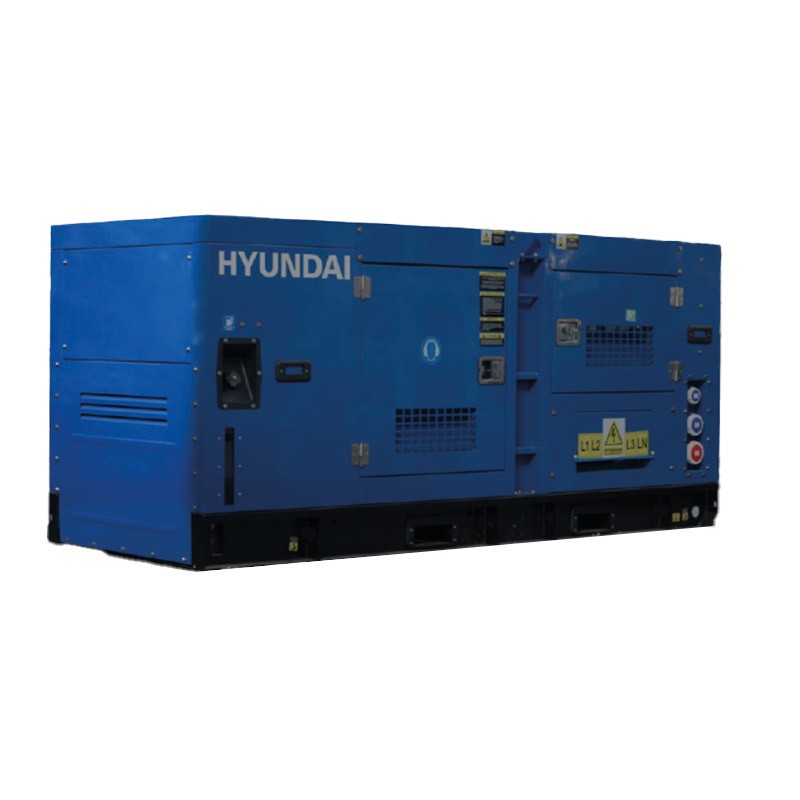

Hyundai 65530 - 1500 rpm 4330 cc Silent Diesel Generator
The Hyundai 65530 generator is a 31/93 kW single-phase, three-phase, silent generator with a fixed configuration. Designed with the environment in mind, it uses low-impact materials and reduces noise with advanced materials and shock-absorbing mounts. Featuring a powerful diesel engine, brushless alternator , and safety protections that comply with European standards, the Hyundai 65530 is a 93 kW Hyundai generator that is easy to use and offers excellent performance.
Hyundai 65530 is a high-performance Hyundai generator designed to provide reliable and continuous power in various industrial and commercial applications .
Functional specifications
Diesel generator with 4330 cc engine
Equipped with a YTO LR4B3Z-15 engine, this diesel generator set has a displacement of 4330 cc , a direct injection system and 4 cylinders . Thanks to the 1500 rpm , the engine provides high performance and optimized fuel consumption . The DIESEL fuel tank has a capacity of 120 litres , ensuring long autonomy without frequent stops for refueling.
Electric start generator
To ensure reliability and safety , the Hyundai 65530 is equipped with an electric start system , making it easy to start the generator. The generator is also equipped with a liquid cooling system that helps maintain an optimal temperature during operation , reducing wear and improving performance.
Waterproof control unit
The control unit is equipped with a waterproof panel, which protects the generator from water and humidity , ensuring safe operation even in adverse weather conditions . Furthermore, there is an emergency safety button to quickly turn off the unit in critical situations.
Soundproofing enclosure for silent generator
The soundproofing enclosure of the Hyundai 65530 stationary generator significantly reduces the noise level of the generator, making it suitable even for applications that require a quiet environment .
Generator lubricated 14 L oil
To maintain proper lubrication , the Hyundai 65530 generator features a system with a total oil capacity of 16.4 L. Additionally, the cooling system helps keep temperatures under control, ensuring optimal engine performance.
Reliable alternator for consistent performance
The Hyundai 65530 generator alternator features a brushless alternator , known for its reliability and consistent performance .
DeepSea DSE6120 control unit
The DeepSea DSE6120 control module offers advanced generator monitoring and control functions, including fault reporting and frequency and voltage regulation .
Voltage regulator frequency controller , to protect devices sensitive to power surges.
Compact size fixed generator
The compact dimensions of 247 x 101 x 115 cm and a weight of 1350 kg make the generator easy to transport and install. ATS-ready .
Characteristics
- Diesel Engine
- Liquid cooled
- Silenced
- Electric start
- Single-phase/Three-phase
- Waterproof roofing system
- Safety emergency button
- AVR regulator included
- Multifunction display

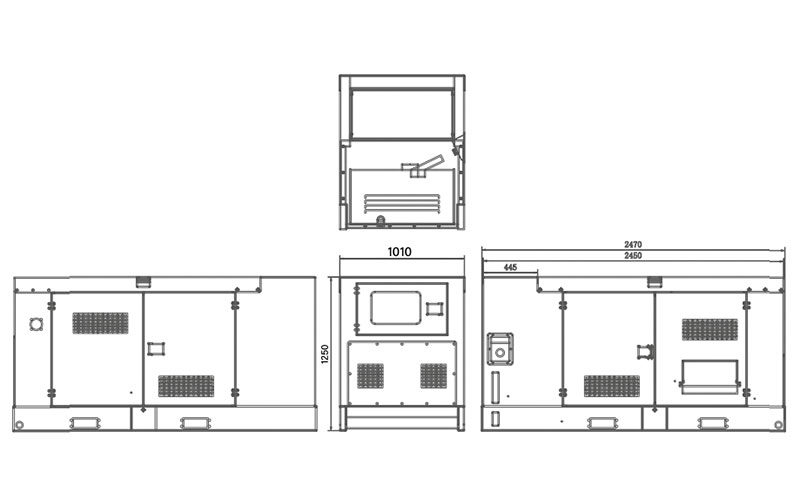

Dimensions
Fields of application
- Industry
- Garage
- Commercial buildings
Technical Data
| Model | LG60YTO |
| Power Supply | 400V |
| Single Phase Rated Power | 25 KVA - 20 KW cos φ 0.8 |
| Max Single Phase Power | 31 KVA - 25 KW cos φ 0.8 |
| Three-Phase Rated Power | 75 KVA - 60 KW cos φ 0.8 |
| Max Three-Phase Power | 93 KVA - 75 KW cos φ 0.8 |
| Engine RPM | 1500 RPM |
| Amperage | 108 A |
| Protection | IP23 |
| Engine Brand | YTO |
| Engine Model | LR4B3Z-15 |
| Displacement | 4330 cc |
| Injection | Live |
| Cylinders | 4 |
| Start-up | Electric |
| Consumption 100% - 75% - 50% | 17.6/13.2/9.1 L/h |
| Fuel | Diesel |
| Tank Capacity | 120 L |
| Lubrication | 16.4 L |
| Cooling | Coolant |
| Refrigeration System | 16.4 L |
| Alternator | LK224G |
| Exciter | Brushless - Self-excitation |
| Control unit | DeepSea DSE6120 |
| ATS | Optional |
| Dimensions | 247 x 101 x 112.5 cm |
| Weight | 1350 kg |
Technical Data
| Model | LG60YTO |
| Power Supply | 400V |
| Single Phase Rated Power | 25 KVA - 20 KW cos φ 0.8 |
| Max Single Phase Power | 31 KVA - 25 KW cos φ 0.8 |
| Three-Phase Rated Power | 75 KVA - 60 KW cos φ 0.8 |
| Max Three-Phase Power | 93 KVA - 75 KW cos φ 0.8 |
| Engine RPM | 1500 RPM |
| Amperage | 108 A |
| Protection | IP23 |
| Engine Brand | YTO |
| Engine Model | LR4B3Z-15 |
| Displacement | 4330 cc |
| Injection | Live |
| Cylinders | 4 |
| Start-up | Electric |
| Consumption 100% - 75% - 50% | 17.6/13.2/9.1 L/h |
| Fuel | Diesel |
| Tank Capacity | 120 L |
| Lubrication | 16.4 L |
| Cooling | Coolant |
| Refrigeration System | 16.4 L |
| Alternator | LK224G |
| Exciter | Brushless - Self-excitation |
| Control unit | DeepSea DSE6120 |
| ATS | Optional |
| Dimensions | 247 x 101 x 112.5 cm |
| Weight | 1350 kg |
