Hyundai 65526
Silent Three-Phase Generator
68 kW 1500 rpm
230/400V - 22.5/68 kW
2540 cc
DIESEL
Warranty 2 years
Shipped on Pallet

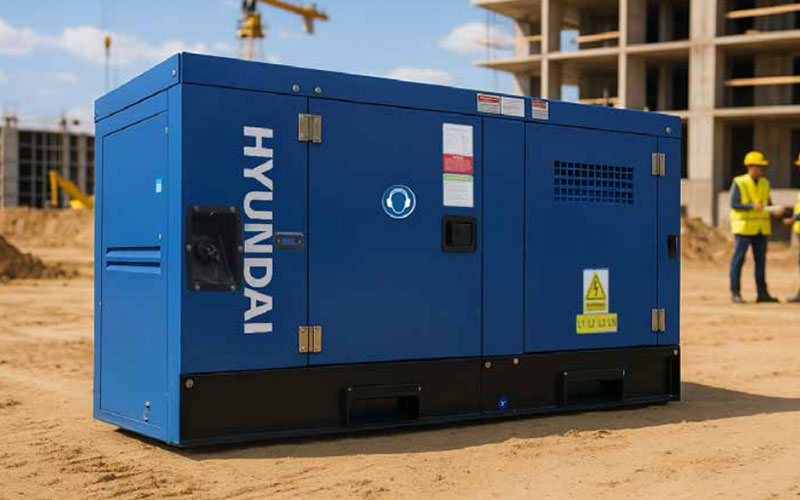

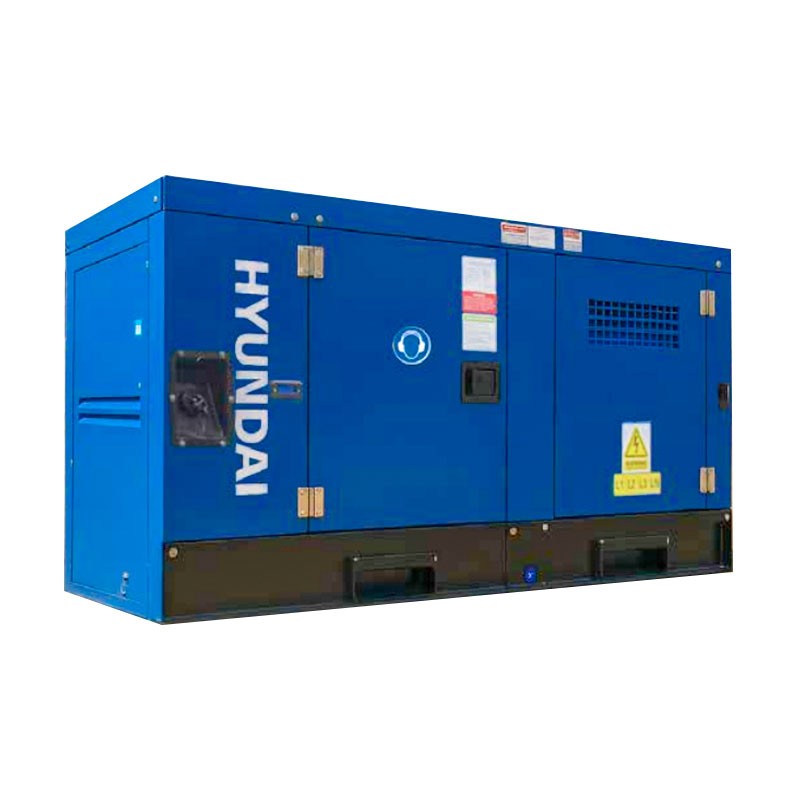

Hyundai 65526 - Silent Single-Phase Three-Phase Generator 1500 rpm
The Hyundai 65526 generator is a 68 kW fixed three-phase generator designed with the environment in mind, using low-impact materials and reducing noise with advanced materials and shock-absorbing mounts. Reliable , with a powerful diesel engine, brushless alternator , and safety protections compliant with European standards, the Hyundai 65526 is a 54 kW Hyundai generator that is easy to use and offers excellent performance.
Hyundai 65526 is a high-performance Hyundai generator designed to provide reliable and continuous power in various industrial and commercial applications .
For single-phase connection it has a nominal power of 16 kW / 20 kVA and a maximum power of 18 kW / 22.5 kVA.
For three-phase connection it has a nominal power of 48 kW / 62.5 kVA and a maximum power of 54 kW / 68 kVA , this generator is able to handle demanding workloads with ease.
Functional specifications
Diesel generator with 3120 cc engine
Equipped with a YTO YT4B2Z-15 engine, this diesel generator set has a displacement of 3120 cc , a direct injection system and 4 cylinders . Thanks to the 1500 rpm , the engine provides high performance and optimized fuel consumption . The DIESEL fuel tank has a capacity of 120 litres , ensuring long autonomy without frequent stops for refueling.
Electric start generator
To ensure reliability and safety , the Hyundai 65526 is equipped with an electric start system , making it easy to start the generator. The generator is also equipped with a liquid cooling system that helps maintain an optimal temperature during operation , reducing wear and improving performance.
Waterproof control unit
The control unit is equipped with a waterproof panel, which protects the generator from water and humidity , ensuring safe operation even in adverse weather conditions . Furthermore, there is an emergency safety button to quickly turn off the unit in critical situations.
Soundproofing enclosure for silent generator
The soundproof enclosure significantly reduces the noise level of the generator, making it suitable even for applications requiring a quiet environment .
Generator lubricated 14 L oil
To maintain proper lubrication , the Hyundai 65526 generator features a system with a total oil capacity of 14 liters . Additionally, the refrigeration system helps keep temperatures under control, ensuring optimal engine performance.
Reliable alternator for consistent performance
The Hyundai 65526 generator alternator features a brushless alternator , known for its reliability and consistent performance .
DeepSea DSE6120 control unit
The DeepSea DSE6120 control module offers advanced generator monitoring and control functions, including fault reporting and frequency and voltage regulation .
Voltage regulator frequency controller , to protect devices sensitive to power surges.
Compact size fixed generator
The compact dimensions of 247 x 101 x 112 cm and a weight of 1210 kg make the generator easy to transport and install. ATS-ready .
Characteristics
- Diesel Engine
- Liquid cooled
- Silenced
- Electric start
- Single-phase/Three-phase
- Waterproof roofing system
- Safety emergency button
- AVR regulator included
- Multifunction display

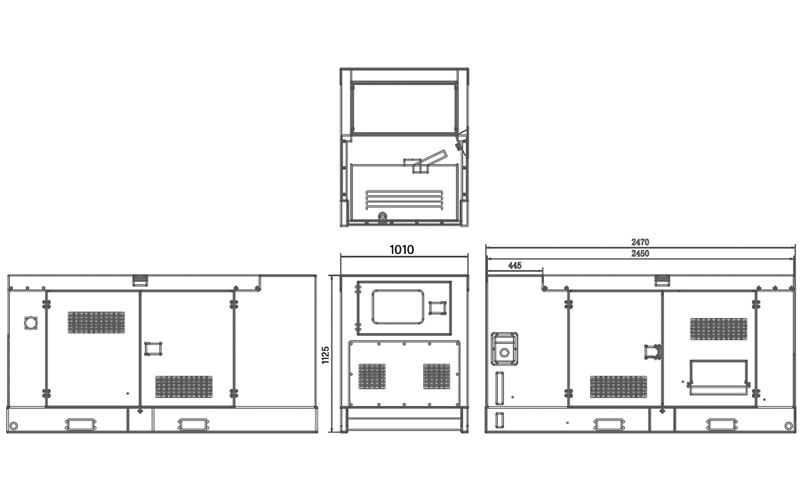

Dimensions
Fields of application
- Industry
- Garage
- Commercial buildings
Technical Data
| Model | LG48 |
| Power Supply | 230/400V |
| Single Phase Rated Power | 20 KVA - 16 kW cos φ 0.8 |
| Max Single Phase Power | 22.5 KVA - 18 kW cos φ 0.8 |
| Three-Phase Rated Power | 62.5 KVA - 48 KW cos φ 0.8 |
| Max Three-Phase Power | 68 KVA - 54 KW cos φ 0.8 |
| Engine RPM | 1500 RPM |
| Amperage | 43 A |
| Protection | IP23 |
| Engine Brand | YTO |
| Engine Model | YT4B2Z-15 |
| Displacement | 3120 cc |
| Injection | Live |
| Cylinders | 4 |
| Start-up | Electric |
| Consumption 100% - 75% - 50% | 15 / 11.2 / 7.5 L/h |
| Fuel | Diesel |
| Tank Capacity | 125 L |
| Lubrication | 14 L |
| Cooling | Coolant |
| Refrigeration System | 10 L |
| Alternator | LK224E |
| Exciter | Brushless - Self-excitation |
| Control unit | DeepSea DSE6120 |
| ATS | Optional |
| Dimensions | 247 x 101 x 112.5 cm |
| Weight | 1210 kg |
Technical Data
| Model | LG48 |
| Power Supply | 230/400V |
| Single Phase Rated Power | 20 KVA - 16 kW cos φ 0.8 |
| Max Single Phase Power | 22.5 KVA - 18 kW cos φ 0.8 |
| Three-Phase Rated Power | 62.5 KVA - 48 KW cos φ 0.8 |
| Max Three-Phase Power | 68 KVA - 54 KW cos φ 0.8 |
| Engine RPM | 1500 RPM |
| Amperage | 43 A |
| Protection | IP23 |
| Engine Brand | YTO |
| Engine Model | YT4B2Z-15 |
| Displacement | 3120 cc |
| Injection | Live |
| Cylinders | 4 |
| Start-up | Electric |
| Consumption 100% - 75% - 50% | 15 / 11.2 / 7.5 L/h |
| Fuel | Diesel |
| Tank Capacity | 125 L |
| Lubrication | 14 L |
| Cooling | Coolant |
| Refrigeration System | 10 L |
| Alternator | LK224E |
| Exciter | Brushless - Self-excitation |
| Control unit | DeepSea DSE6120 |
| ATS | Optional |
| Dimensions | 247 x 101 x 112.5 cm |
| Weight | 1210 kg |
