Hyundai 65520
1500 rpm Diesel Generator
Single-Phase/Three-Phase Silent Generator
MPN: 65520
230/400V - 5,6/17 kW
2270 cc
DIESEL
Warranty 2 years
Shipped on Pallet
Hyundai 65520 - Single-Phase Three-Phase Diesel Generator 1500 rpm

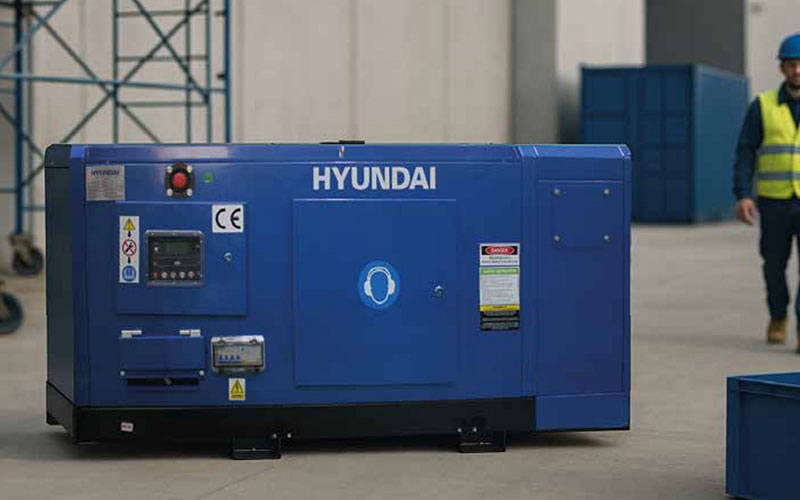

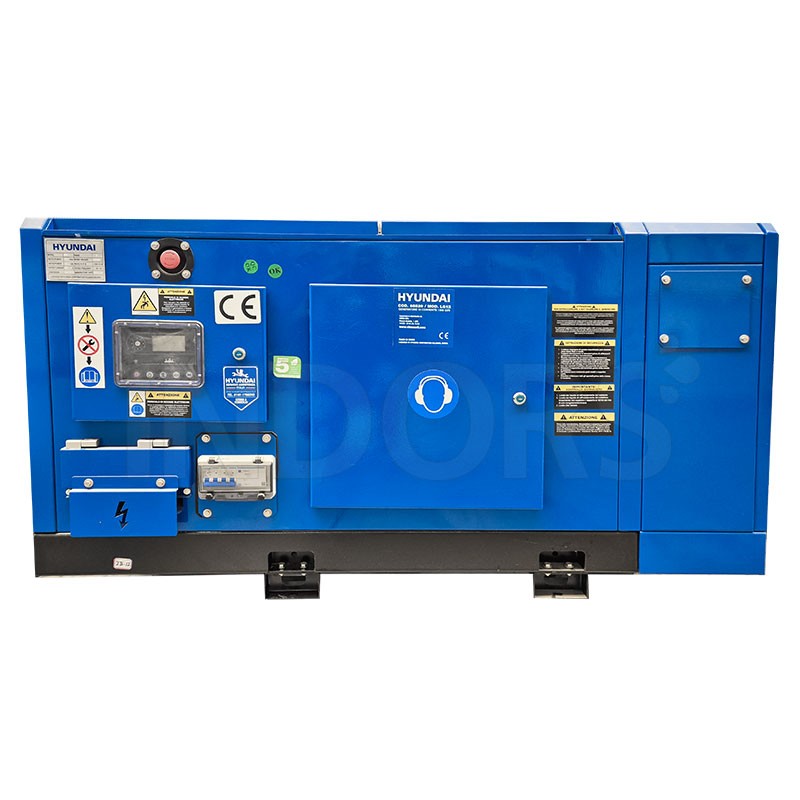

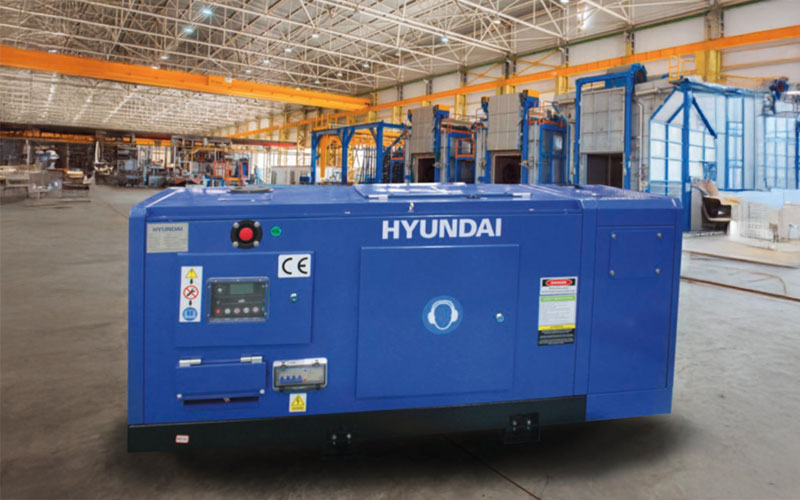

The Hyundai 65520 silent three-phase diesel generator is a reliable and powerful source of electricity. This generator is designed for efficient and quiet operation in a variety of applications, thanks to its cutting-edge technology and advanced features.
One of the key features of this generator is liquid cooling , which ensures optimal operating temperature and longer engine life. The electric starter makes starting quick and easy, providing instant power when needed.

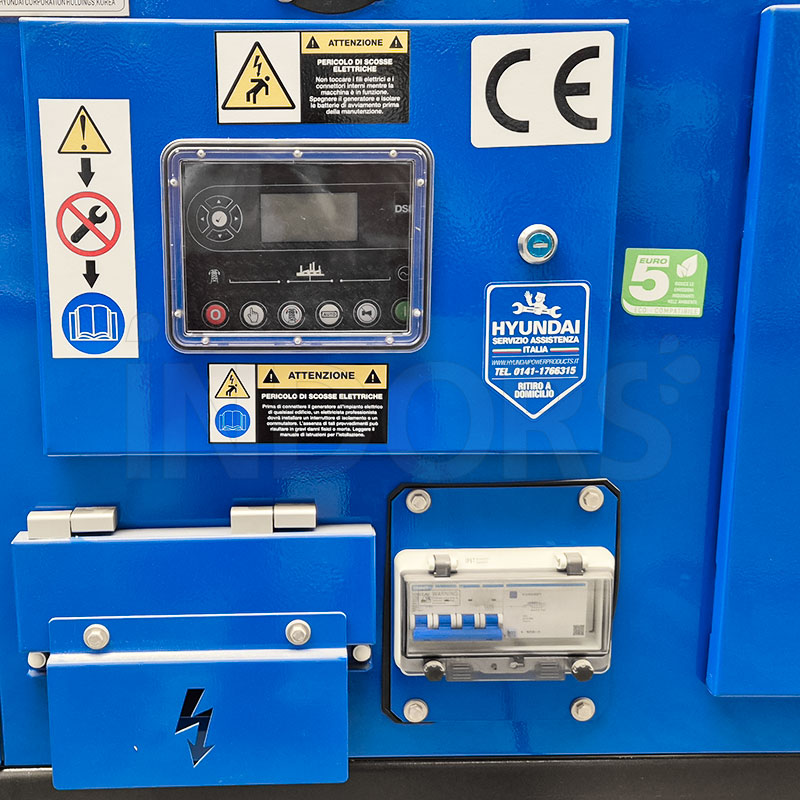

The waterproof control panel allows you to easily monitor and manage the generator's operation, including a safety emergency button that allows you to quickly shut down the unit if necessary. Additionally, the soundproof enclosure helps minimize the generator's operating noise , ensuring a quieter and more comfortable environment.
Functional specifications
Three-phase generator peak 13.5 kW
The generator operates in three-phase mode at 400 V and a frequency of 50 Hz, providing a nominal power of 12 kW / 15 kVA and a maximum (peak) power of 13.5 kW / 17 kVA . The amperage reaches 22 A , sufficient to power a wide range of electrical equipment.
Fawde engine with a displacement of 2270 cc
Detailed technical specifications include a Fawde brand engine , model 4DW81-23D-YFD10W , with a displacement of 2270 cc . The engine is diesel powered, providing efficient fuel consumption at various load rates. The fuel tank capacity is 40 L , ensuring adequate autonomy for long periods of use. With 7.8 L lubrication system.
ATS preparation
ATS provision that allows automatic switching to emergency power in the event of a main power failure.
Main function control unit
DeepSea DSE6120 control unit:
- Low oil pressure
- High engine temperature and excessive speed
- Voltage regulator frequency regulator
- Emergency stop
- Reporting of operating anomalies
Characteristics
- Diesel Engine
- Liquid cooled
- Silenced
- Electric start
- Single-phase/Three-phase
- Waterproof roofing system
- Safety emergency button
- AVR regulator included
- Multifunction display
Fields of application
- Industry
- Garage
- Commercial buildings
Technical Data
| Model | LG12 |
| Power Supply | 230/400V |
| Single Phase Rated Power | 5 KVA - 4 kW cos φ 0.8 |
| Max Single Phase Power | 5.6 KVA - 4.5 kW cos φ 0.8 |
| Three-Phase Rated Power | 15 kVA - 12 kW cos φ 0.8 |
| Max Three-Phase Power | 17 kVA - 13.5 kW cos φ 0.8 |
| Engine RPM | 1500 RPM |
| Amperage | 22 A |
| Protection | IP23 |
| Engine Brand | Fawde |
| Engine Model | 4DW81-23D-YFD10W |
| Displacement | 2270 cc |
| Injection | Live |
| Cylinders | 4 |
| Consumption 100% - 75% - 50% | 3.3 / 2.5 / 1.7 L/h |
| Fuel | Diesel |
| Tank Capacity | 45 L |
| Lubrication | 8 L |
| Cooling | Coolant |
| Refrigeration System | 6 L |
| Alternator | LK164D |
| Exciter | Brushless - Self-excitation |
| AVR | YES |
| Control unit | DeepSea DSE6120 |
| Dimensions | 160 x 74 x 82.5 cm |
| Weight | 560 kg |
Technical Data
| Model | LG12 |
| Power Supply | 230/400V |
| Single Phase Rated Power | 5 KVA - 4 kW cos φ 0.8 |
| Max Single Phase Power | 5.6 KVA - 4.5 kW cos φ 0.8 |
| Three-Phase Rated Power | 15 kVA - 12 kW cos φ 0.8 |
| Max Three-Phase Power | 17 kVA - 13.5 kW cos φ 0.8 |
| Engine RPM | 1500 RPM |
| Amperage | 22 A |
| Protection | IP23 |
| Engine Brand | Fawde |
| Engine Model | 4DW81-23D-YFD10W |
| Displacement | 2270 cc |
| Injection | Live |
| Cylinders | 4 |
| Consumption 100% - 75% - 50% | 3.3 / 2.5 / 1.7 L/h |
| Fuel | Diesel |
| Tank Capacity | 45 L |
| Lubrication | 8 L |
| Cooling | Coolant |
| Refrigeration System | 6 L |
| Alternator | LK164D |
| Exciter | Brushless - Self-excitation |
| AVR | YES |
| Control unit | DeepSea DSE6120 |
| Dimensions | 160 x 74 x 82.5 cm |
| Weight | 560 kg |
