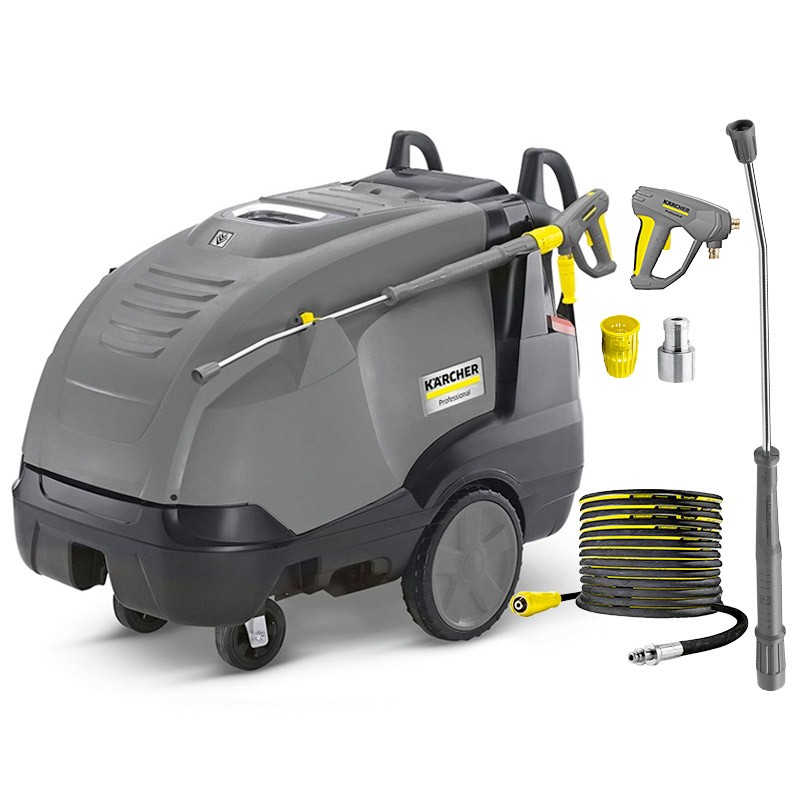

Karcher HDS 13/20-4 SX
Professional Hot Water Pressure Washer

Karcher HDS 13/20-4 SX - Professional Hot Water Pressure Washer

The HDS 13/20-4 SX hot water pressure washer is a Karcher product for professional use only, which requires professional training and precise instructions for use. Ideal for washing vehicles, tools and machinery, cleaning workshops, external areas, service stations, cleaning facades, swimming pools, gyms and sports centres, industries and production systems, Karcher HDS 13/20-4 SX is the three-phase high pressure washer most powerful in its class, with 4-pole water-cooled electric motor.

Technical specifications

The Karcher HDS 13/20-4 SX pressure washer has a flow rate of 600÷1300 L/h , for a power of 9.3 kW . The electric cable is 5 m long and the tank capacity is 25 L. The pressure washer features the new ECO mode ; When the machine is set to this mode, it automatically uses the most economical water temperature, for greater environmental protection . The boiler cycles are optimized to reduce consumption by 20% compared to when the machine works at full capacity. It also features a service switch to control the quantity of water used and a precise detergent dispenser .

The pressure washer is equipped with a high efficiency pump . HDS 13/20-4 SX is a pressure washer that is easy to use thanks to the well-organised central control panel. The machine offers high efficiency cleaning performance, guaranteed by the patented technology of the nozzles, ceramic pistons, turbo fan as well as greater pump efficiency.

The product features two large wheels with rubber covering , ergonomic handles, lifting points for handling with a forklift , ring anchoring and a tread to tilt the machine and thus guarantee maximum maneuverability and handling ; there is also easy access to all components requiring maintenance and a service switch to recall operational data at any time, with a large , easy-to-clean , fine-mesh water filter to protect the pump from dust particles. dirt present in the water.

The innovations made to the accessories halve the assembly and disassembly times, the EASY!Force gun exploits the recoil given by the high pressure to reduce the tension force to zero, helping the operator's work. EASY!Lock quick couplings are five times faster than conventional screw couplings, they are robust and durable. The SDS system compensates for vibrations and pressure peaks that are created in the high pressure system.

Watch the video

Characteristics

• Electric motor
• eco!efficiency mode
• 20 m hose
• LED display
• SDS system
• Detergent dispenser
• EASY!Force
• EASY!Lock

Standard equipment

• AP pistol - 4.118-005.0
• Servo Control setting 1100 L/h - 4.118-009.0
• Rotating spray lance 1050 mm - 4.112-000.0
• Power nozzle spray angle 25° 070 - 2.113-028.0
• Longlife high pressure hose 20 m DN 8 400 bar - 6.110-028.0
