Lavor Dakota R GX
Hot Water Pressure Washer

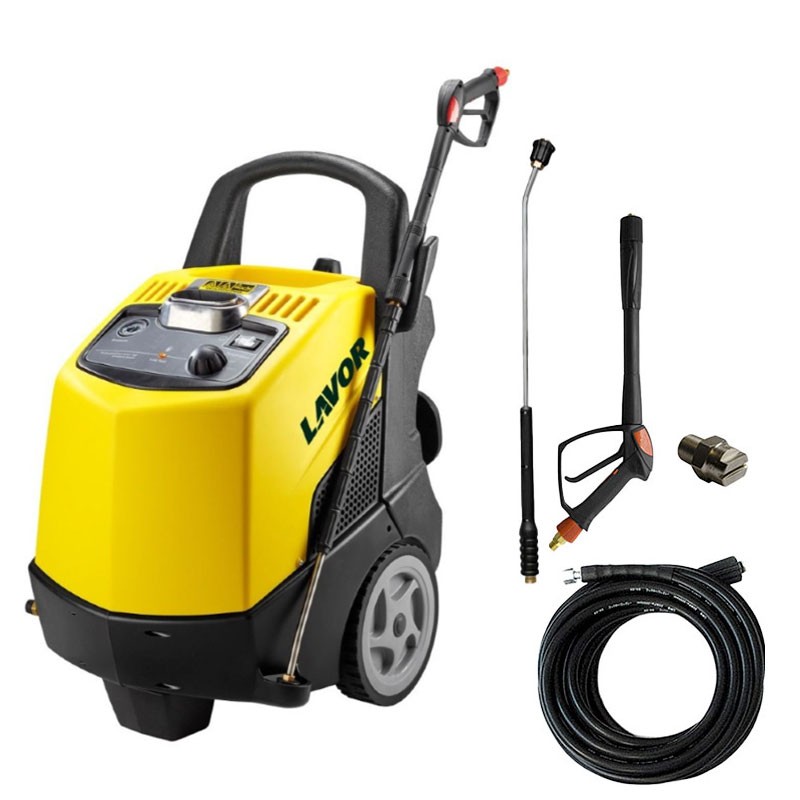

Lavor Dakota R GX - Professional Hot Water Pressure Washer

Lavor Dakota is a professional pressure washer designed for industrial use. A product belonging to the Dakota range , the Lavor Dakota R GX hot water pressure washer is entirely Made in Italy . This machine is available in the single-phase (230V) Dakota R 1509 GX and Pro Dakota R 2007 GX models and in the three-phase (400V) Dakota R 1713 GX version.

A hot water pressure washer is the essential tool for thoroughly cleaning greasy dirt , encrustations , and oily residues . When pumped at high pressure, hot water performs a powerful stain-removing action. To heat the water, this professional pressure washer contains a vertical boiler with a high-efficiency steel coil , which, thanks to the energy produced by the auxiliary diesel engine , heats the water up to 110°C . The diesel tank has a capacity of 16 litres .

This machine is equipped with a temperature regulator and a warning light to indicate the diesel reserve .

Hot water is pumped at up to a maximum pressure of 160 bar for the Dakota R 1509 GX, and 190 and 200 bar for the Dakota R 1713 GX and Pro Dakota R 2007 GX models. With the Dakota R GX, you can combine the powerful action of hot water with the most suitable detergent for the cleaning you want to do. These professional electric pressure washers are equipped with a pressure regulator .

The water flow rate of Dakota pressure washers varies from 420 L/h to 540 L/h for single-phase models, to 780 L/h for three-phase models (see the table with technical specifications).

The motor pump with brass head and the 2-pole motor with a power of 3 kW and 3.3 kW for the single-phase Dakota R 1509 GX and Pro Dakota 2007 GX and 4.7 kW for the three-phase, make the Lavor Dakota pressure washers machines capable of guaranteeing high and reliable performance , at all the intensity required by the workload. These Lavor hot water pressure washers have an RPM value of 2800 .

MPBX2 Series Pump

The Lavor Dakota has an axial pump with a built-in brass head, three ceramic-coated steel pistons and a built-in bypass valve . The suction and delivery valves are also made of stainless steel . The MPBX2 Series pump is the most durable 2-pole pump on the market. It features fabric seals , valves with stainless steel plates and ceramic pistons . The performance of this Lavor pump is such that it exceeds the efficiency of competing 4-pole pumps. In fact, this pump allows for the maintenance of high pressure.

The Lavor Dakota R GX control system is intuitive and includes a control panel with analogue controls . There is a knob for adjusting the water temperature , an ignition button and a light that indicates the diesel level . For safety , Lavor has developed a Total Stop device , which immediately blocks the pressurising action of the water as soon as the grip on the gun is loosened. This way, it is possible to avoid wasting water and energy.

Compact pressure washer for professional and industrial use, the quality and production of this machine are entirely Made in Italy . This degreasing tool designed for intense cleaning is equipped with a wheeled trolley , with larger rear wheels to facilitate the transport of the Lavor Dakota R GX even over uneven, rough or steep terrain . The compact design makes it easy to use this pressure washer even in small spaces, as may occur when used on construction sites or in industries . This Lavor pressure washer is equipped with a comfortable handle for stable , balanced transport. It can also be used in agricultural settings .

The Lavor Dakota R GX is available in Lavor's trademark yellow . The frame of this machine is made of high-strength steel . The weight of this pressure washer is 99 kg for the Pro Dakota R 2007 GX, 119 kg for the Dakota R 1509 GX and 129 kg for the Dakota R1713 GX.

The accessories supplied include the M22 3/8" gun with swivel attachment; the M22 high/low pressure lance with safety catch; two nozzles ; the 8-metre long R1 high-pressure hose .

The pressure washer has side hooks for storing the gun and hose.

The pressure washers have a variable weight from the 99 kg of the Pro Dakota R 2007 GX to the 129 kg of the Dakota R 1713 GX.

Characteristics

• Pressure washer Made in Italy
• Available in single-phase and three-phase versions
• For professional and industrial use
• Powerful degreasing action
• Equipped with a vertical boiler with steel coil
• High pressure (max 160/200 bar)
• Motor pump with induction head and 2-pole motor
• Motor power of 4.3 kW for three-phase, 3.2 kW ÷ 3.3 kW for single-phase
• 2800 RPM
• Axial pump with built-in brass head and three pistons
• Ceramic steel pistons
• By-pass valve, suction and delivery valve in stainless steel
• Vertical boiler with high thermal efficiency coil
• Diesel auxiliary engine for boiler operation
• Maximum temperature of 110 °C
• 16-litre diesel tank
• Integrated 4.2 litre detergent tank
• Analog control panel
• Temperature control knob, power button and fuel light
• Total Stop device for anti-waste and greater safety
• Compact design with movement wheels
• Comfortable handle
• Side hooks for accessories
• Steel frame
• Yellow color

Available models

• Dakota R 1509 GX - Single Phase
• Pro Dakota R 2007 GX - Single phase
• Dakota R 1713 GX - Three-phase
