Annovi Reverberi AR 1320
Single-Phase Hot Water Pressure Washer

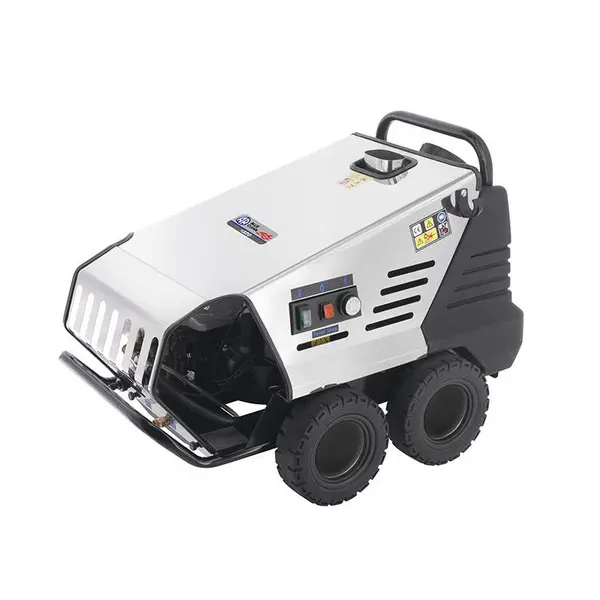

Annovi Reverberi AR 1320 - Single-Phase Hot Water Pressure Washer

Annovi Reverberi AR 1320 , professional-quality hot water pressure washer . It features a reliable single-phase electric motor with circuit breaker protection and a three-piston ceramic pump with connecting rod and crank system and automatic bypass valve . Thanks to the high-efficiency diesel-fired stainless steel boiler , this pressure washer can supply hot water up to 100°C , ideal for removing encrustations and stubborn dirt.

The machine has a compact structure with a stainless steel body and four large wheels for transport, which makes it easy to move and ideal even in sectors such as the food sector , where hygiene standards are more stringent.

The practical low-voltage control panel is easy to access and, via indicator lights, allows you to view errors, low diesel fuel, power supply, and activation of the Total Stop system. The pressure washer is equipped with a large 24-liter diesel tank , a thermostat for temperature regulation , and a practical detergent suction system.

The Annovi Reverberi AR 1320 is a high-quality hot water pressure washer, with components and technological features that ensure ease of use, high performance, and long-lasting durability.

The timed Total Stop system allows the machine to automatically stop to prevent the engine from overheating. There are also stop systems in the event of micro-leaks or a lack of water.

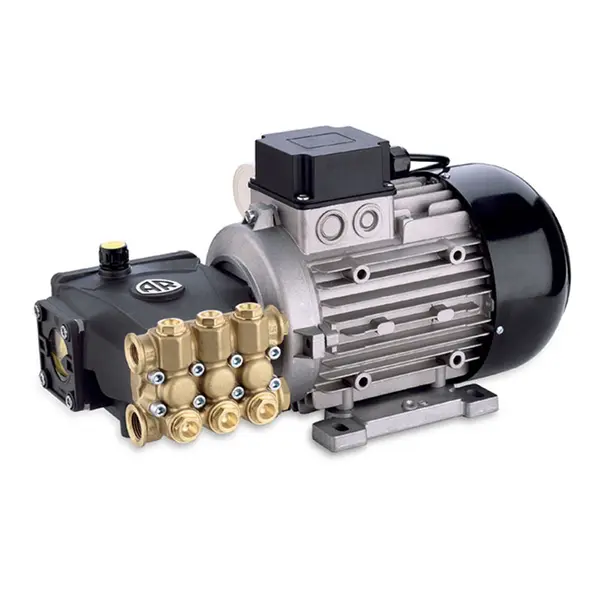

HRC Pump - EM

3-piston ceramic pump with connecting rod and crank system, brass pump head. Automatic safety valve with zero pressure relief in the pump head. Single-phase induction electric motor with thermal protection. Remote total pressure washer shutdown system.

Self-priming function

A self-priming pump is designed to draw water from an external source (such as a tank, drum, or container) without requiring water to be forced into the pump by initial pressure. This makes the pressure washer more versatile, allowing it to operate even without a direct connection to a pressurized water supply, such as when a tap isn't available, or to use alternative water sources such as tanks and wells.

Technical specifications

• Hot water
• Induction motor
• Connecting rod pump
• IPX5-S1 water resistance
• Brass head
• Total Stop System Timed

Characteristics

• Single-phase 4-pole motor at 1450 rpm
• Linear pump group with ceramic pistons and connecting rod-crank system
• Self-priming function
• Automatic bypass valve
• Sturdy stainless steel construction
• Transport wheels
• Vertical stainless steel boiler with high-efficiency coil
• Pressure regulation
• Glycerin-filled pressure gauge
• 3 Pressure switches
• Thermostat
• Side support for accessories
• Timed Total Stop
• Low voltage control panel
• Error signal light
• Diesel warning light
• Voltage warning light
• Total Stop light
• Shutdown due to micro-leaks, lack of water, engine overheating
• Low pressure detergent suction
• 24-litre diesel tank

Standard equipment

• Pistol
• Lance with nozzle holder
• 5m power cable
• 10 m high pressure hose
• Instruction booklet
