Lavor LR 1614 LP - Industrial Cleaning Pressure Washer
The Lavor HLR 1614 LP high-pressure washer is a high-pressure hot water machine, ideal for professional and industrial cleaning. Designed with the care and components typical of a Made in Italy tool, the Lavor HLR 1614 guarantees top-of-the-line performance with the characteristic reliability of a Lavor pressure washer .
Technical specifications
The pressure washer code 8.61.3003 has an operating pressure of 160 bar , with a flow rate of 840 L/h .
The absorbed power is 4.2 kW , with 400V three-phase power supply .
This Lavor pressure washer comes complete with original accessories: it's ready to use immediately!
Motor and pump
The pump mounted on the Lavor HLR 1614 LP is the MP4 Ni at 1450 RPM, which, combined with an elastic coupling to the 4-pole electric motor , has optimised operation even in the start/stop phase , when the pressure washer is subjected to the greatest stress.
Vertical boiler
Thanks to its vertical boiler with high thermal efficiency steel coil , the Lavor HLR 1614 LP pressure washer is able to heat water up to 110°C
Auxiliary engine and tanks
The 4-pole electric motor ( 1450 rpm ) with thermal protection, with auxiliary motor for boiler ventilation
This pressure washer features an integrated 3L detergent tank , for indirect suction and an 18L diesel tank .
Protection systems
This pressure washer features a delayed, low-pressure Total Stop system. The suction and delivery valves are made of stainless steel .
Temperature regulation is done with a highly sensitive probe .
Examples of Use
This hot water pressure washer is recommended for multiple uses in the industrial , agricultural and construction sectors.
Main Features
- 4-pole electric motor (1450 RPM) with thermal protection.
- Linear pump group.
- Nickel-plated brass head with 3 ceramic pistons and by-pass valve.
- Low voltage delayed total stop.
- Stainless steel suction and delivery valves.
- Vertical boiler with high thermal efficiency steel coil.
- Temperature controller with high sensitivity stainless steel sensor.
- Integrated detergent tank (3 litres) for indirect suction
- Diesel tank (18 litres)
- Auxiliary motor for boiler ventilation.
- Highly resistant steel frame.

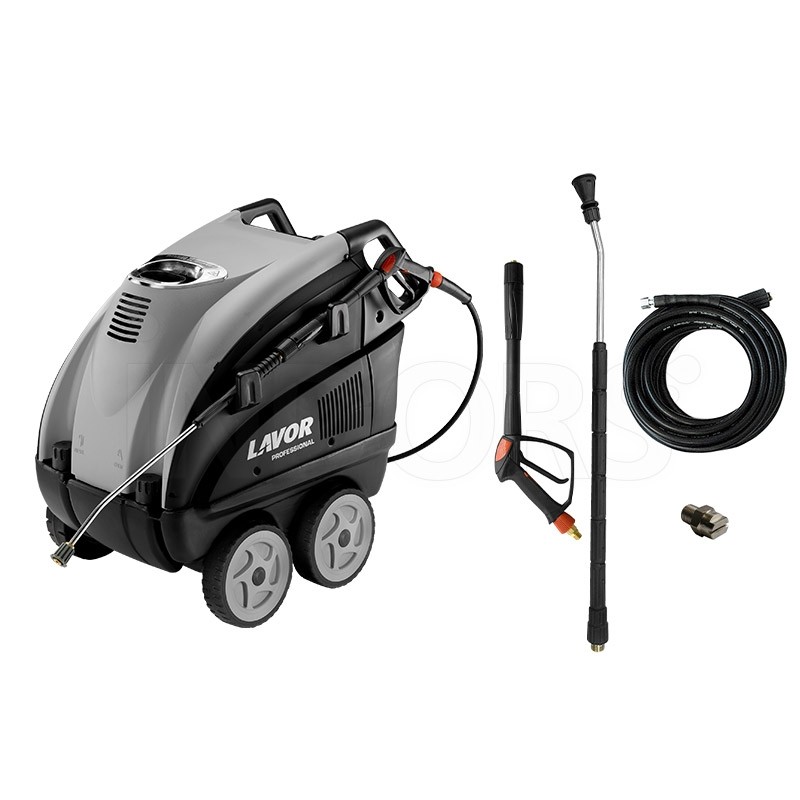

Standard Equipment
- M22 gun - 3/8 with swivel fitting - code 00080-01695
- M22 high/low pressure lance - code 00080-01715
- Nozzle 035 - code 00080-03186
- High pressure hose 10 m - code 00080-02347
Optional Equipment
- Hose reel with brake (hose not included) - code 10001-13221
- Water tray - code 10002-16460
- LC-PRECAL limescale remover (4 pieces x 5 L) - code 00073-00114
- Lancia Turbo - code 00080-02966
- Sandblasting lance - code 00080-02957
- High pressure hose 10 m 310 bar - cod. 00080-02258
- High pressure hose 20 m 400 bar - code 00080-02261
- High pressure hose 10 m R2 - cod. 00080-02264
- High pressure hose 20 m 400 bar - code 00080-02262
- 10 m high pressure hose 400 bar food industry - code 00080-02263
