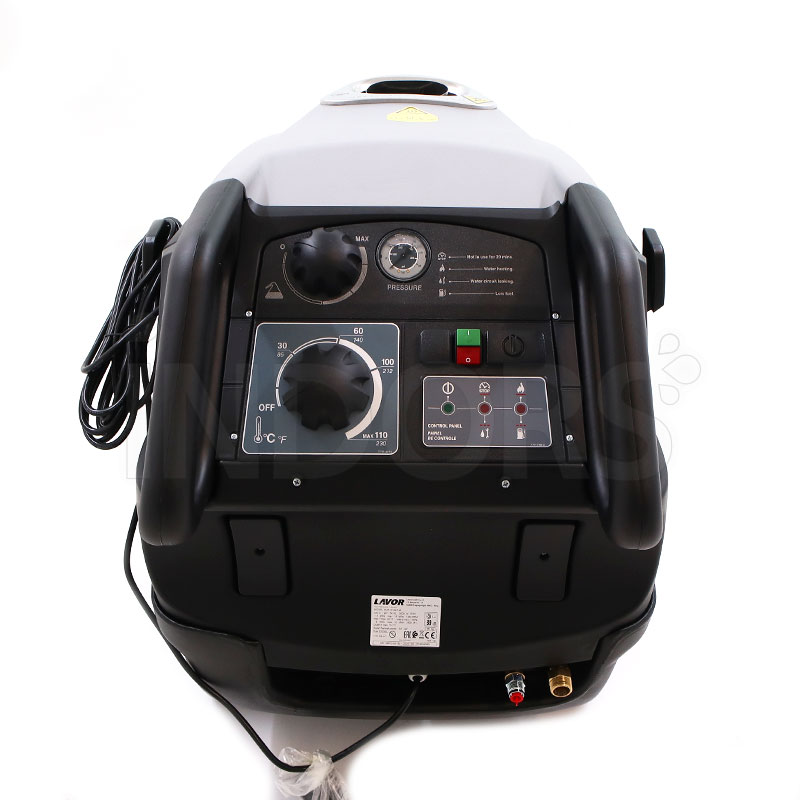

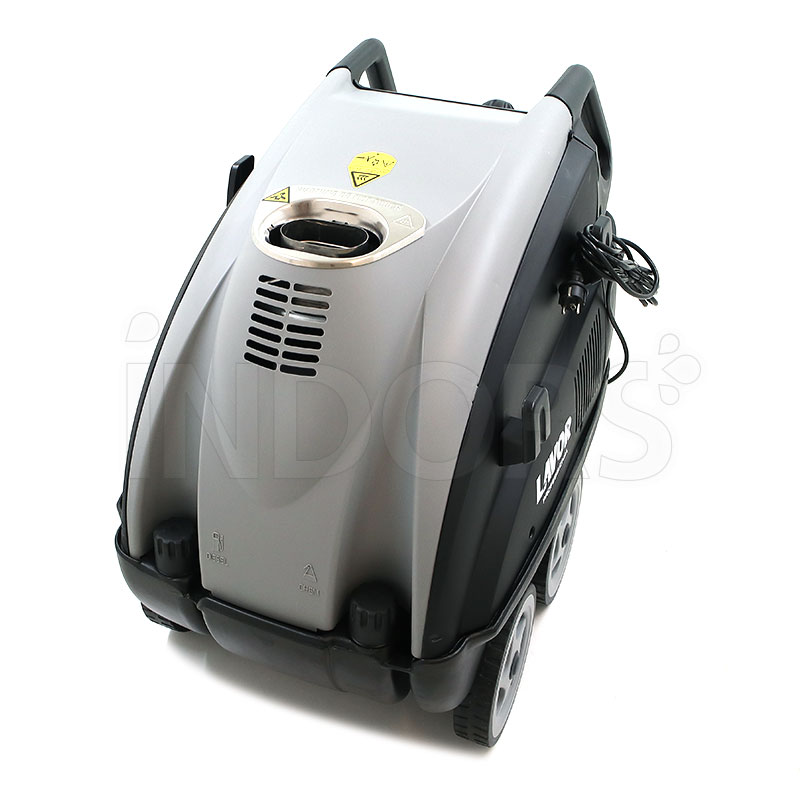

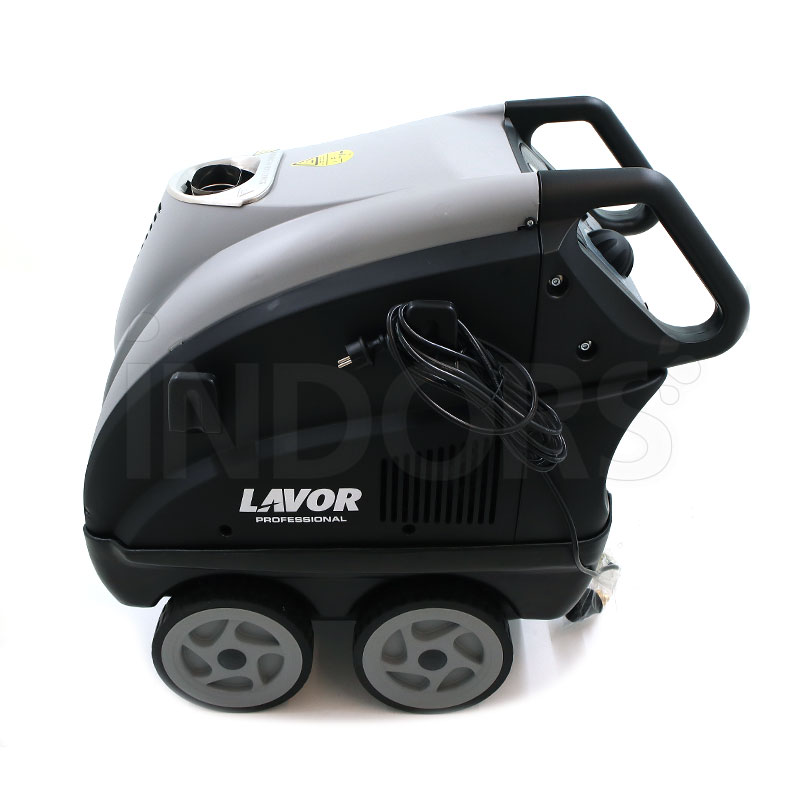

Lavor HLR 1515 LP - Professional Hot Water Pressure Washer
The Lavor HLR 1515 LP is a hot water pressure washer designed for highly professional use , suitable for washing cars and machinery , garden equipment , floors , external walls , paint stripping and sandblasting , bathrooms, swimming pools, etc. Maximum reliability , use of the best components and guarantee of extremely high performance.
This high-pressure washer is equipped with the Lavor MPWJ5 Ni series pump and a 4-pole electric motor (1450 rpm), with thermal protection and water cooling. Lavor HLR 1515 LP pressure washers are true workhorses.
To ensure maximum machine life, the Lavor HLR 1515 LP also uses an elastic coupling between the pump and motor to reduce stress due to the start/stop phases.
Technical specifications
Three-phase operation
This Lavor pressure washer has a three-phase 400V operation , which makes it a perfect machine for industry , given its absorbed power of 5.5 kW.
MP4 Ni pump
The Lavor HLR 1515 LP is equipped with a quality Lavor MP4 Ni pump , Made in Italy with three ceramic pistons and a nickel-plated brass head, with high-temperature seals and a built-in bypass valve. Robust and durable, the Lavor HLR 1515 LP is a pressure washer designed to withstand even several hours of work without problems .
Vertical boiler
Thanks to its vertical boiler with high thermal efficiency steel coil , the Lavor HLR 1515 LP pressure washer is able to heat water up to 110°C
Engine and tanks
The 4-pole electric motor ( 1450 rpm ) with thermal protection, with auxiliary motor for boiler ventilation
This pressure washer features an integrated 3L detergent tank , for indirect suction and an 18L diesel tank .
Protection systems
This pressure washer features a delayed, low-pressure Total Stop system. The suction and delivery valves are made of stainless steel .

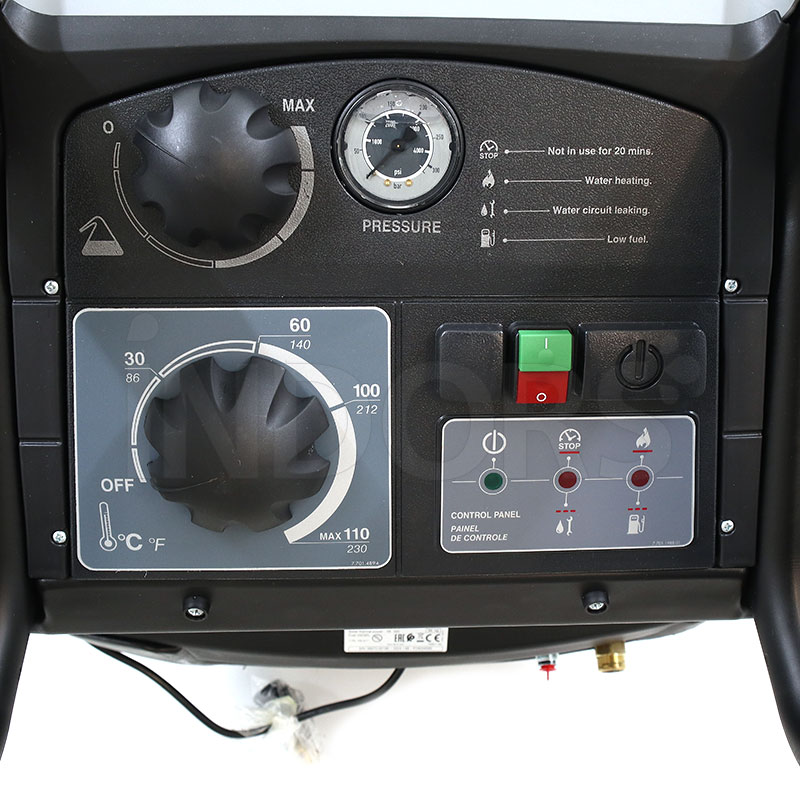

Temperature regulation is done with a highly sensitive probe .
Characteristics
- 4-pole electric motor (1450 RPM) with thermal protection.
- Water cooling.
- Linear pump group with nickel-plated brass head.
- Nickel-plated brass head with 3 ceramic pistons and by-pass valve.
- Built-in elastic coupling for better pump/motor coupling
- Low voltage delayed total stop.
- Stainless steel suction and delivery valves.
- Vertical boiler with high thermal efficiency steel coil.
- Temperature controller with high sensitivity stainless steel sensor.
- Integrated detergent tank (3 litres) for indirect suction
- Diesel tank (18 litres)
- Auxiliary motor for boiler ventilation.
- Highly resistant steel frame.
Areas of use
This three-phase high-pressure washer is a useful aid for professional and industrial use. Some examples of its uses:
Standard Equipment
- M22 gun - 3/8 with swivel fitting - code 00080-01695
- M22 high/low pressure lance - code 00080-01715
- Nozzle 060 - code 00080-03191
- High pressure hose 10 m - code 00080-02347
Optional Equipment
- Hose reel with brake (hose not included) - code 10001-13221
- Water tray - code 10002-16460
- LC-PRECAL limescale remover (4 pieces x 5 L) - code 00073-00114
- Lancia Turbo - code 00080-02967
- Sandblasting lance - code 00080-02958
- High pressure hose 10 m 310 bar - cod. 00080-02258
- High pressure hose 20 m 400 bar - code 00080-02261
- High pressure hose 10 m R2 - cod. 00080-02264
- High pressure hose 20 m 400 bar - code 00080-02262
- 10 m high pressure hose 400 bar food industry - code 00080-02263
