| IP | First digit – Protection against solid objects | Second digit – Protection against water |
|---|---|---|
| 0 | No protection | No protection |
| 1 | Solid objects ≥ 50 mm | Vertical dripping |
| 2 | Solid objects ≥ 12.5 mm | Dripping when tilted (15°) |
| 3 | Solid objects ≥ 2.5 mm | Water spray |
| 4 | Solid objects ≥ 1 mm | Water splashes |
| 5 | Dust protected (partial) | Water jets |
| 6 | Dust tight | Powerful water jets |
230V - 1.5kW
IP20 Internal
Ruby Red Light
With Tripod pedestal

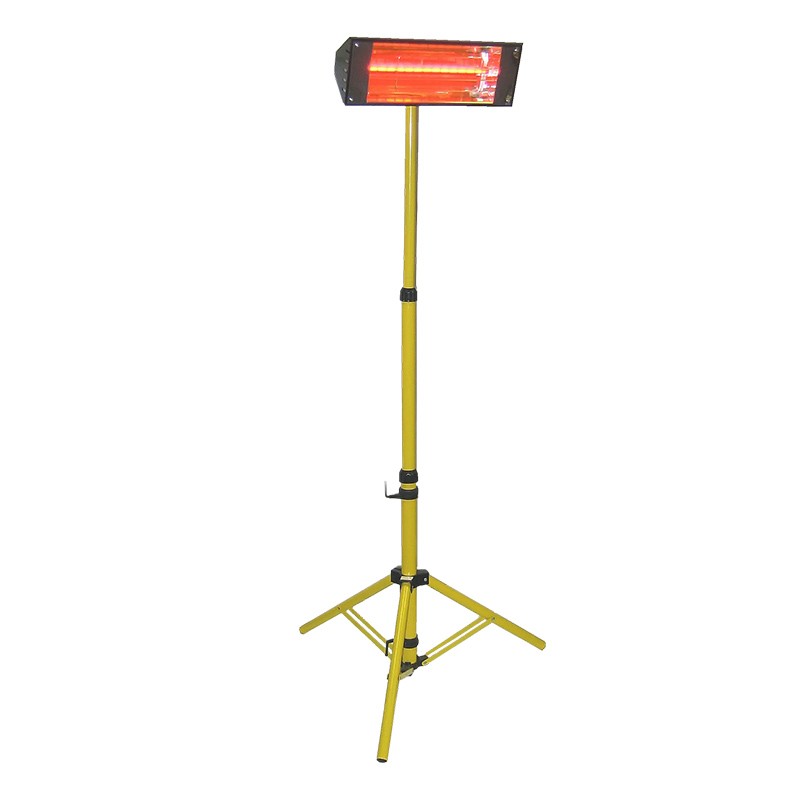

Victory Lighting HLX15PY and Victory Lighting HLX15PB infrared lamps are heating infrared lamps complete with tripod pedestal (yellow color in the Y version and black color in the B version).
Ideal for providing comfortable warmth in the winter months , the Victory Lighting HLX15PY and Victory Lighting HLX15PB lamp is equipped with a protective grille , ON/OFF switch and degree of protection. IP20 .
These Victory Lighting infrared lamps heat an approximate surface ranging from 7 to 13 m² ; This Victory Lighting infrared lamp is ideal for restaurants, outdoor areas of premises/homes and for the commercial sector .


The lamp comes complete with Tripod pedestal and is available in the following colours:
With a power of 1.5 kW, the Victory Lighting HLX15PY and Victory Lighting HLX15PB infrared lamps have a quartz lamp with emission of warming red light.
This lamp can be easily installed on the Tripod stand , supplied, for pleasant warmth. The Victory Lighting tripod has a design that can be easily positioned in commercial areas, allowing the use of the Victory Lighting heat lamp without affecting the aesthetics.
The indicative heated area is 7 to 13 m² , with pleasant infrared radiated heat. Ideal for making winter evenings pleasant. Ideal for heating patios, terraces and outdoor areas : for any need, the infrared lamp with pedestal adapts perfectly to your needs.
The Victory Lighting HLX15PY and Victory Lighting HLX15PB infrared heating lamp is a versatile and efficient option for keeping rooms warm quickly and effectively. Designed to offer thermal comfort with a touch of style , this Victory Lighting infrared heating lamp allows you to generate instant heat that evenly distributed , creates a warm and welcoming environment . uniform heat distribution, creating a warm and welcoming environment. The excellent construction quality of Victory Lighting lamps allows for safe use and excellent lamp life over time.

Characteristics
| Power Supply | 230V |
| Power | 1.5 kW |
| Lamp Material | Quartz - Red light |
| Lamp Color | Black |
| Pedestal colour | Black/Yellow |
| Heated surface | 7-13 m² |
| Protection Grade | IP20 |
| Installation Height | 1.2÷2.2 m |
| Power Supply | 230V |
| Power | 1.5 kW |
| Lamp Material | Quartz - Red light |
| Lamp Color | Black |
| Pedestal colour | Black/Yellow |
| Heated surface | 7-13 m² |
| Protection Grade | IP20 |
| Installation Height | 1.2÷2.2 m |
