Idromatic Astra Chemik
Diesel Boiler Steam Cleaner

Idromatic Astra Chemik - Diesel Boiler Steam Cleaner

The Idromatic Astra Chemik steam cleaner is a powerful and versatile tool, specially designed to meet the most demanding cleaning needs.

Thanks to its innovative technology , it allows you to combine the effectiveness of steam with the action of detergents and chemical additives, making it particularly suitable for many industrial applications .

One of the main features of Idromatic Astra Chemik is the possibility of dispensing chemical products together with the steam , this function is extremely useful when the use of specific detergents is required to degrease or for the industrial washing of objects subject to rust , weeding or for the tire removal .

The machine is equipped with a practical 8 L tank for the chemical product, with an integrated level sensor , positioned in a convenient and accessible way next to the machine.

Idromatic Astra Chemik is designed to promote maximum efficiency in cleaning operations, it is equipped with two steam outlets , allowing two operators to work simultaneously or to adapt to three separate and independent uses:

• Wet and dry steam;
• Combination of steam and detergent.

The two washing operations do not interfere , guaranteeing optimal results in every situation, the machine can be supplied with 20 m hoses for both outlets, offering broad coverage and flexibility in cleaning operations.

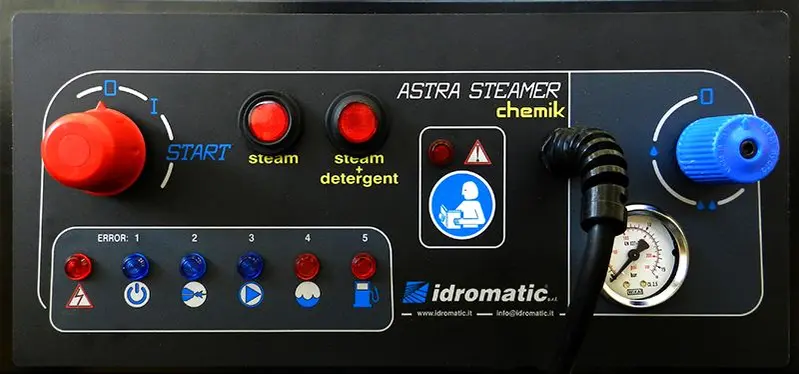

The Idromatic Astra Chemik user interface is intuitive and easy to use , operators can manage the steam output directly from the control panel, without complications.

Furthermore, the machine is equipped with a self-diagnosis system , which signals any problems or anomalies through an error number displayed on the panel.

The installed CPU also allows constant control of the machine during its operation, ensuring efficient and safe management of cleaning operations.

Another advantage of Idromatic Astra Chemik is its quick heating time , ready to use in just 5 minutes , moreover, in situations where an electricity source is not available, the machine can be powered by a small generator , guaranteeing the continuity of cleaning activities even in remote places or without electricity.

TECHNICAL SPECIFICATIONS

Idromatic Astra Chemik is a high pressure steam generator designed for industrial cleaning , it operates with an operating pressure of 9 bar and has a maximum steam flow rate of 40 Kg/h and the absorbed power is 0.5 kW , the which makes it energy efficient .

The generator has two steam outlets , allowing it to be directed in two different directions for optimal cleaning . The thermal power of this device is 48 kW , ensuring rapid heating and constant production of high temperature steam.

The boiler of the generator has a maximum temperature of 220°C , while the outlet water reaches a maximum temperature of 180°C . This ensures that the steam produced is hot enough to remove stubborn dirt and residue .

The generator is equipped with a water tank with a capacity of 25 L , which allows for prolonged use without having to refill the water frequently . In addition, there is also a 20L diesel tank and an 8L detergent tank, providing a complete solution for industrial cleaning.

Despite its powerful performance, the Idromatic Astra Chemik is relatively compact, with dimensions of 107 x 72 x 102 cm , however, weighs 153 kg , which requires proper transportation and stable installation .

In summary, the Idromatic Astra Chemik is a reliable and powerful industrial cleaning steam generator, ideal for applications that require high pressure and high temperature cleaning.

With its ability to generate high pressure steam , high temperatures and the presence of tanks for water, diesel and detergent , it offers a complete solution for cleaning needs in the industrial sector .

FIELDS OF APPLICATION

• Car washing both mobile and in car wash stations
• Repair shops
• Graffiti and eraser removal
• Cleaning industrial machines
• Sports equipment cleaning
• Cleaning environments and equipment for animals
• Urban weeding
• Food industry

CHARACTERISTICS

• Industrial cleaning
• Working pressure 9 bar
• Maximum steam flow rate 40 Kg/h
• Absorbed power 0.5 kW
• Steam outlets 2
• Thermal power 48 kW
• Maximum boiler temperature 220°C
• Maximum outlet water temperature 180°C
• 25 L water tank
• Diesel tank 20 L
• 8 L detergent tank
• Weight 153Kg
• Measures 107 x 72 x 102cm
