Novamach N2/SM
1000 kg Pantograph Lift

Novamach N2/SM - 1000 kg Pantograph Lift

The Novamach N2/SM manual scissor lift is designed for vertical lifting of loads up to 1000 kg , with a maximum height of 80 cm. Thanks to its double-stem mechanism, it guarantees stability and precision in handling operations in warehouses , logistics and truck loading.

Available models

Selectable from the drop-down menu:

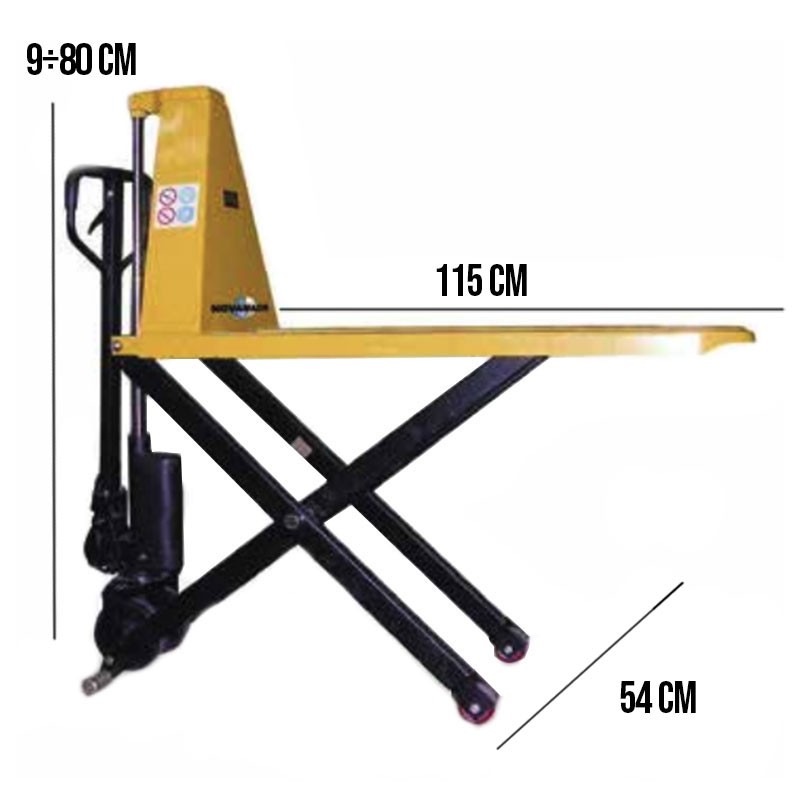

• N2/SM : double-stem manual pantograph; 54 x 115 cm. Height 8.5÷80 cm
• N2/SM/150 : long; 54 x 150 cm. Height: 9÷80 cm
• N2/SM/200 : long; 54 x 200 cm. Height 9÷80 cm

Technical specifications

The Novamach N2/SM has dimensions ranging from 54 x 115 cm to 54 x 200 cm depending on the model, with a minimum height of 8.5 or 9 cm and a maximum of 80 cm . The weight varies from 125 to 256 kg , maintaining a constant capacity of 1000 kg .

Functional specifications

Vertical lift up to 80 cm

The Novamach N2/SM pantograph allows you to lift loads up to 80 cm , making it suitable for loading and unloading operations on trucks and forklifts.

Resistance and stability

The double stem system maintains stability even with maximum loads, optimizing safety in professional movements.

Optimized rollers and wheels

The polyurethane roller reduces friction and wear, while the elastic rubber wheels ensure smooth movement and long life even on demanding surfaces.

Characteristics

• Pantograph lift
• Height from 85÷90 to 800 mm
• Capacity 1000 kg
• Number of rollers 1
• Polyurethane rollers
• Elastic rubber wheels
• Dimensions 54 x 115 cm / 54 x 150 cm / 54 x 200 cm
• Weight from 125 to 256 kg
