1200 m²
24V Battery
Automatic Traction
The Fimap Maxima 50 BTS floor scrubber dryer is a robust machine, made with the best components and an extraordinary design . Fimap Maxima 50 BTS is a scrubber dryer made to last over time , resistant and reliable , which reduces costs throughout the life cycle.
Ideal for washing floors in supermarkets , warehouses , production departments , gyms , car showrooms and workshops .

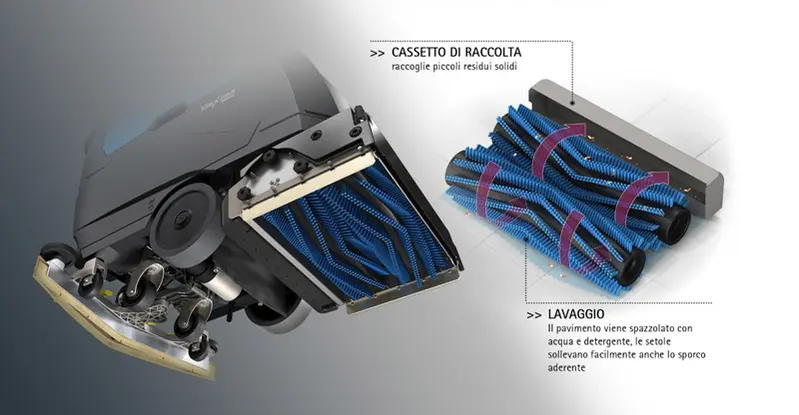

The roller base of Fimap Maxima 50 BTS is made up of two counter-rotating cylindrical brushes that perform a light sweeping action in addition to washing. The sweeping action removes small, loose solid residues and collects them in a drawer installed at the rear of the base, which can be removed for emptying.
This type of base is suitable for hard floors , even structured , irregular or non-slip . The bristles clean deeply and guarantee optimal results even in the presence of large joints. Given the high specific pressure and the high rotation speed, it is preferable to use it on resistant floors and not protected by polymer films (waxes). The counter-rotating movement keeps the cleaning solution inside the washing area, increasing its effectiveness with low water consumption.


The frame, the washing head, the attachment and the body of the squeegee of Fimap Maxima 50 BTS are made of aluminum. This material guarantees a robust internal structure and is resistant to corrosion . Furthermore, being a lightweight material, it does not affect the weight of the machine, which is therefore easy to handle both in use and transport.
The enveloping shape is designed to protect all the mechanical parts inside, reducing the possibility of failure in the event of impact. The sophisticated design of Fimap Maxima 50 BTS leaves no exposed parts, making the Maxima scrubber dryer suitable for working even during the day in busy places, such as supermarkets, integrating perfectly with the environment.
The Power mode button increases the washing power for a limited period of time. It is practical for dealing with localized difficult dirt conditions, because by pressing a single button all the parameters of the Fimap Maxima 50 BTS are brought to maximum, simultaneously, for the time necessary to remove it, and then automatically return to the previous configuration. In this way, the interventions are always effective and no more resources than necessary are used.
LED headlights ensure very low energy consumption compared to conventional headlights, up to 80% less, and a longer lifespan. They illuminate by diffusing a white light that is close to natural light. Available on request.

| Model | 50 BTS | 50 BTS PRO | 50 BTS PLUS |
| Power Supply | 24V | 24V | 24V |
| Traction | Automatic | Automatic | Automatic |
| Max Battery Life | 2.8 hours | 2.2 hours | 2.2 hours |
| Theoretical Productivity | 1776 m²/h | 1776 m²/h | 1776 m²/h |
| Real Productivity | 1200 m²/h | 1200 m²/h | 1200 m²/h |
| Working Width | 48 cm | 48 cm | 48 cm |
| Floor Squeegee Width | 78.5 cm | 78.5 cm | 78.5 cm |
| Brush Motors | 350W | 350W | 350W |
| Brush Turns | 600 rpm | 600 rpm | 600 rpm |
| Pressure on the Brushes | 25 ÷28 kg | 25÷35 kg | 25÷35 kg |
| Solution Tank | 60 L | 60 L | 60 L |
| Recovery Tank | 65 L | 65 L | 65 L |
| Aspiration Engine | - | 680W | 680W |
| Depression Aspiration | - | 181 mbar | 181 mbar |
| Detergent Tank Capacity | - | 3 L | 3 L |
| Max Speed | 3.5 km/h | 3.5 km/h | 3.5 km/h |
| Sound Pressure | 66.8dB(A) | 66.8dB(A) | 66.8dB(A) |
| Sound pressure in Eco mode | 60.2dB(A) | 60.2dB(A) | 60.2dB(A) |
| Drums | Included | Included | Included |
| Battery Charger | Included | Included | Included |
| Size | 127.7 x 109.7 x 56.7 cm | 127.7 x 109.7 x 56.7 cm | 127.7 x 109.7 x 56.7 cm |
| Empty weight | 122 kg | 129 kg | 129 kg |
| Weight with batteries | 200 kg | 207 kg | 207 kg |
| Model | 50 BTS | 50 BTS PRO | 50 BTS PLUS |
| Power Supply | 24V | 24V | 24V |
| Traction | Automatic | Automatic | Automatic |
| Max Battery Life | 2.8 hours | 2.2 hours | 2.2 hours |
| Theoretical Productivity | 1776 m²/h | 1776 m²/h | 1776 m²/h |
| Real Productivity | 1200 m²/h | 1200 m²/h | 1200 m²/h |
| Working Width | 48 cm | 48 cm | 48 cm |
| Floor Squeegee Width | 78.5 cm | 78.5 cm | 78.5 cm |
| Brush Motors | 350W | 350W | 350W |
| Brush Turns | 600 rpm | 600 rpm | 600 rpm |
| Pressure on the Brushes | 25 ÷28 kg | 25÷35 kg | 25÷35 kg |
| Solution Tank | 60 L | 60 L | 60 L |
| Recovery Tank | 65 L | 65 L | 65 L |
| Aspiration Engine | - | 680W | 680W |
| Depression Aspiration | - | 181 mbar | 181 mbar |
| Detergent Tank Capacity | - | 3 L | 3 L |
| Max Speed | 3.5 km/h | 3.5 km/h | 3.5 km/h |
| Sound Pressure | 66.8dB(A) | 66.8dB(A) | 66.8dB(A) |
| Sound pressure in Eco mode | 60.2dB(A) | 60.2dB(A) | 60.2dB(A) |
| Drums | Included | Included | Included |
| Battery Charger | Included | Included | Included |
| Size | 127.7 x 109.7 x 56.7 cm | 127.7 x 109.7 x 56.7 cm | 127.7 x 109.7 x 56.7 cm |
| Empty weight | 122 kg | 129 kg | 129 kg |
| Weight with batteries | 200 kg | 207 kg | 207 kg |
