Telwin Digital Puller 5500
Sheet Metal Spot Welding Machine 230 V
MPN: 828127
EAN: 8004897219417
€679.00
€556.56 tax excl.
Warranty 2 years
14 days to change your mind
Shipped on Pallet

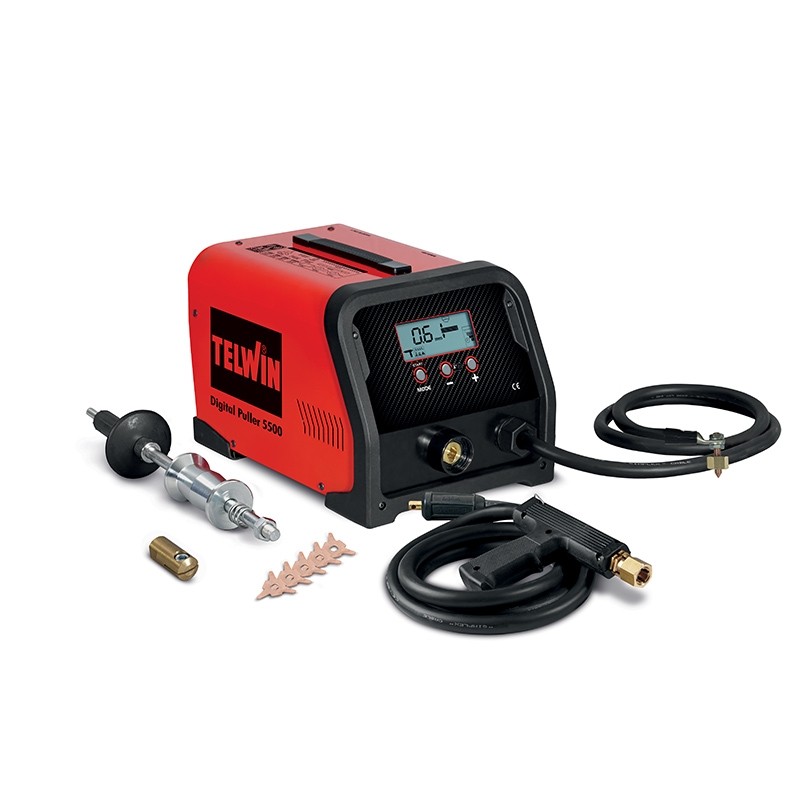

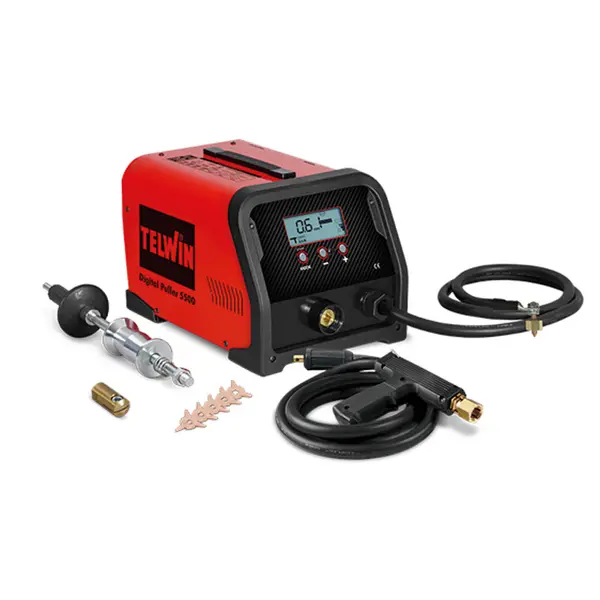

Telwin Digital Puller 5500 - Sheet Metal Repair Spot Welder cod.828127
The Telwin Digital Puller 5500 welding machine is a quality Made In Italy spot welder , with a 230V single-phase current connection for 10.5 kW of absorbed power. This machine is equipped with a microprocessor that regulates the electronic system , and is one of the best welding machines for bodywork: Telwin Digital Puller 5500 is suitable for spot welding sheet metal or other surfaces .
This welder, measuring 39 x 26 x 22.5 cm and weighing 21 kg , is equipped with a digital LCD panel that allows the adjustment of the parameters based on the chosen tool . Multifunctional welder, this Telwin spot welder is your trusted ally for all repairs of damaged or damaged bodywork .
Technical specifications
Telwin Digital Puller model code 828127 has an electrical operation with a current connection of 230 V, 50 Hz and a maximum absorbed power of 10.5 kW. With a 10 A mains fuse , cosphi factor 0.8 and an intermittence ratio of 1.5%, this spot welder has IP22 protection.
The peak spot current is 3800 A , with a no-load voltage of 5.6 V.
The product is complete with automatic gun , ground cable and original accessories .
Types of welding possible with Telwin Digital Puller
- Spot welding : Spot welding is generally used to weld steels. The operation of a spot welder is based on the presence of an electrical circuit that allows the achievement of a high heat exclusively in the points where the electrodes are in contact with the area to be welded. In this way, it is possible to carry out spot welding.
Applications
- Sheet metal repair
- Bodywork use
Characteristics
- Microprocessor-controlled spot welding machine
- LCD digital panel for adjusting welding parameters
- Spot welding machine for sheet metal and bodywork
- Original Telwin product Made in Italy
- Peak Spot Welding Current 3800A
- Complete accessories
Standard equipment
- Nail extractor - code 742709
- 3-point rosette - code 680001
- Star chuck for traction - code 722954
- Spot welding cable with gun - code 713299
Technical Data
| Power Supply | 230V |
| Power Absorbed | 10.5 kW |
| Empty Tension | 5.6V |
| Current Peak Spotting | 3800 A |
| Mains fuse | 10 A |
| Cosphi | 0.8 |
| Intermittence Report | 1.5% |
| Protection Level | IP22 |
| Dimensions | 39 x 26 x 22.5 cm |
| Weight | 21 kg |
Technical Data
| Power Supply | 230V |
| Power Absorbed | 10.5 kW |
| Empty Tension | 5.6V |
| Current Peak Spotting | 3800 A |
| Mains fuse | 10 A |
| Cosphi | 0.8 |
| Intermittence Report | 1.5% |
| Protection Level | IP22 |
| Dimensions | 39 x 26 x 22.5 cm |
| Weight | 21 kg |
