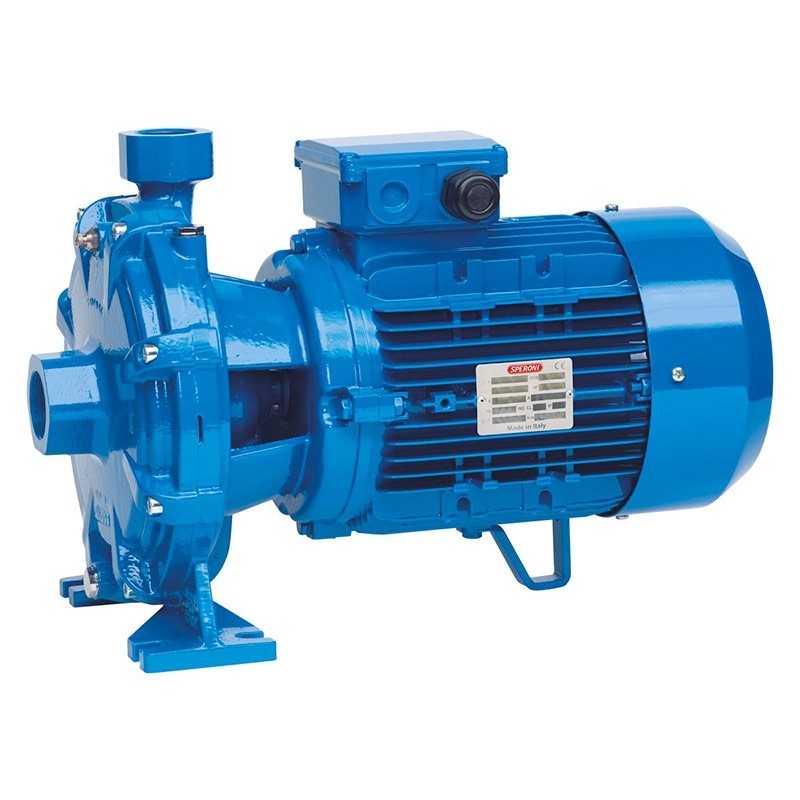

Speroni 2CM/C 32/190 C
Twin-impeller centrifugal electric pump
230V / 400V - 3 HP
140 L/min - Head 63 m
Ø 1'' 1/2 - 1'' 1/4
€639.00
€523.77 tax excl.
Warranty 2 years
Shipped on Pallet
Speroni 2CM/C 32/190 C - Centrifugal Electric Pump 230V/400 V
The Speroni 2CM 32 range of centrifugal and twin-impeller electric pumps are characterised by the presence of two opposing impellers which allow much higher heads than single-impeller models. They are intended for lifting clean water or other liquids moderately loaded with impurities but not aggressive towards the materials the pump is made of.
These pumps can be single-phase or three-phase, selectable from the drop-down menu above, and are characterised by the use of
The 2CM 32 electric pumps are suitable for civil and industrial systems, for the distribution of water via pressure tanks and for sprinkler irrigation both in agriculture and in private gardens.
Download the Technical Sheet
Available models selectable from the drop-down menu:
- Speroni 2CM 32/190C - Single Phase
- Speroni 2C 32/190C - Three-phase
Limits of use
- Liquid temperature limit up to 35 °C for domestic use (EN 60335-2-41)
- Liquid temperature limit up to 90°C for other uses
- Ambient temperature up to 40 °C
- Monometric suction height up to 7 m
- Continuous service
Materials
- Pump Course: Cast Iron
- Engine mount: Cast iron
- Impellers: Brass
- Crankshaft: AISI 304 Stainless Steel
- Mechanical seals: Ceramic / Graphite / NBR
Engines
- Insulation Class F
- IP 55 protection
- Single phase 230V-50Hz
- Three-phase 230/400V-50Hz P2 ≤ 7.5 kW
- Three-phase 400/690V-50Hz P2 > 7.5 kW
- 2-pole induction electric motor (n=2850 min-1)
Hydraulic Curve Pumps with 1'' 1/2 Suction
Hydraulic Curve Pumps with 2'' Suction
Details of available models
Product Dimensions
Technical Data
| CM 32/190C | C 32/190C | |
| Power Supply | 230V | 400V |
| Nominal Power | 3 HP - 2.2 kW | 3 HP - 2.2 kW |
| Suction Diameter | 1'' 1/2 | 1'' 1/2 |
| Delivery Diameter | 1'' 1/4 | 1'' 1/4 |
| Prevalence | from 46 to 63 m | from 46 to 63 m |
| Liquid Flow Rate | 140 L/min | 140 L/min |
| Protection Class - Insulation | IP 55 - F | IP 55 - F |
| Dimensions | 45 x 34 x 27 cm | 45 x 34 x 27 cm |
| Weight | 41 kg | 41 kg |
Technical Data
| CM 32/190C | C 32/190C | |
| Power Supply | 230V | 400V |
| Nominal Power | 3 HP - 2.2 kW | 3 HP - 2.2 kW |
| Suction Diameter | 1'' 1/2 | 1'' 1/2 |
| Delivery Diameter | 1'' 1/4 | 1'' 1/4 |
| Prevalence | from 46 to 63 m | from 46 to 63 m |
| Liquid Flow Rate | 140 L/min | 140 L/min |
| Protection Class - Insulation | IP 55 - F | IP 55 - F |
| Dimensions | 45 x 34 x 27 cm | 45 x 34 x 27 cm |
| Weight | 41 kg | 41 kg |
