Speroni C
Three-phase centrifugal pump
€360.00
€295.08 tax excl.
| or in 3 rates from 120.00 € with |  | |
| or in 3 rates from 120.00 € with |  |
library_add more options
400V - 1.5÷3 HP
350 L/min - Head 54 m
Ø 1" 1/4 - 1"
Warranty 2 years
14 days to change your mind
Shipped on Pallet
Speroni C - Three-phase Centrifugal Pump
Speroni C is a three- phase centrifugal electric pump designed to cover requests for small , medium and large flow rates . Usable in domestic agricultural and industrial systems , Speroni C has automatic water distribution by means of small tanks ( autoclave ), but is also designed for sprinkler and flow irrigation in the garden and agriculture .
Speroni C is also useful for increasing the network pressure of the aqueducts by diversion.
According to EN 60335-2-41, the liquid temperature up to 35 ° (domestic use), with a maximum liquid temperature of 90 ° C. With ambient temperatures up to 40 ° C, the manometric suction height reached is up to 7 meters . Possibility of continuous service .
Materials
- Pump body: Cast iron
- Motor support: Cast iron
- Impellers: Brass
- Motor shaft: AISI 304 stainless steel
- Mechanical seals: Ceramic / Graphite / NBR
Features
- Three-phase centrifugal pump
- Domestic and industrial use
- For autoclave and irrigation
- To increase the pressure of the aqueducts
- Manometric suction height max 7 m
- Made in Italy
- Insulation F, IP 55
Models available
- Spurs C 35 - 400 V - 1,5 HP
- Spurs C 45 - 400 V - 2 HP
- Spurs C 50 - 400 V - 2.5 HP
- Spurs C 53 - 400 V - 3 HP
Technical data
| Template | C 35 | C 45 | C 50 | C 53 |
| Code | 101062043 | 101062333 | 101062643 | 101063050 |
| Power Supply | 400 V | 400 V | 400 V | 400 V |
| Horses | 1.5 HP | 2 HP | 2.5 HP | 3 HP |
| Nominal power | 1.1 kW | 1.5 kW | 1.85 kW | 2.2 kW |
| Scope | 10 ÷ 350 L / min | 10 ÷ 350 L / min | 10 ÷ 350 L / min | 10 ÷ 350 L / min |
| Min / max head | 19 ÷ 36 m | 28 ÷ 43 m | 27 ÷ 49.5 m | 29 ÷ 54 m |
| Suction diameter | 1 '' 1/4 | 1 '' 1/4 | 1 '' 1/4 | 1 '' 1/4 |
| Delivery diameter | 1 '' | 1 '' | 1 '' | 1 '' |
| Insulation class | F. | F. | F. | F. |
| Pump Body Material | Cast iron | Cast iron | Cast iron | Cast iron |
| Max. Ambient Temp | 40 ° C | 40 ° C | 40 ° C | 40 ° C |
| Max Temp. Liquid Domestic Use | 35 ° C | 35 ° C | 35 ° C | 35 ° C |
| Max Temp. Liquid Other Uses | 90 ° C | 90 ° C | 90 ° C | 90 ° C |
| Degree of protection | IP 55 | IP 55 | IP 55 | IP 55 |

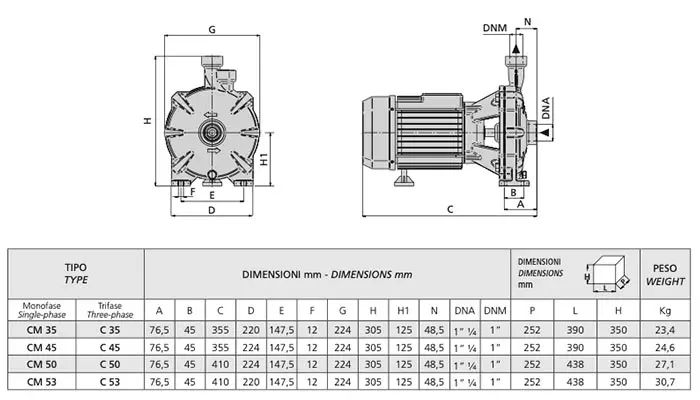

| Dimensions | 35 x 30 x 22 cm | 35 x 30 x 22 cm | 41 x 30 x 22 cm | 41 x 30 x 22 cm |
| Weight | 23.4 kg | 24.6 kg | 27.1 kg | 30.7 kg |
Technical data
| Template | C 35 | C 45 | C 50 | C 53 |
| Code | 101062043 | 101062333 | 101062643 | 101063050 |
| Power Supply | 400 V | 400 V | 400 V | 400 V |
| Horses | 1.5 HP | 2 HP | 2.5 HP | 3 HP |
| Nominal power | 1.1 kW | 1.5 kW | 1.85 kW | 2.2 kW |
| Scope | 10 ÷ 350 L / min | 10 ÷ 350 L / min | 10 ÷ 350 L / min | 10 ÷ 350 L / min |
| Min / max head | 19 ÷ 36 m | 28 ÷ 43 m | 27 ÷ 49.5 m | 29 ÷ 54 m |
| Suction diameter | 1 '' 1/4 | 1 '' 1/4 | 1 '' 1/4 | 1 '' 1/4 |
| Delivery diameter | 1 '' | 1 '' | 1 '' | 1 '' |
| Insulation class | F. | F. | F. | F. |
| Pump Body Material | Cast iron | Cast iron | Cast iron | Cast iron |
| Max. Ambient Temp | 40 ° C | 40 ° C | 40 ° C | 40 ° C |
| Max Temp. Liquid Domestic Use | 35 ° C | 35 ° C | 35 ° C | 35 ° C |
| Max Temp. Liquid Other Uses | 90 ° C | 90 ° C | 90 ° C | 90 ° C |
| Degree of protection | IP 55 | IP 55 | IP 55 | IP 55 |
| Dimensions | 35 x 30 x 22 cm | 35 x 30 x 22 cm | 41 x 30 x 22 cm | 41 x 30 x 22 cm |
| Weight | 23.4 kg | 24.6 kg | 27.1 kg | 30.7 kg |
