Speroni CS 80 Three-Phase
Single-Impulse Centrifugal Electric Pump
€1,550.00
€1,270.49 tax excl.
Warranty 2 years
14 days to change your mind
Shipped on Pallet

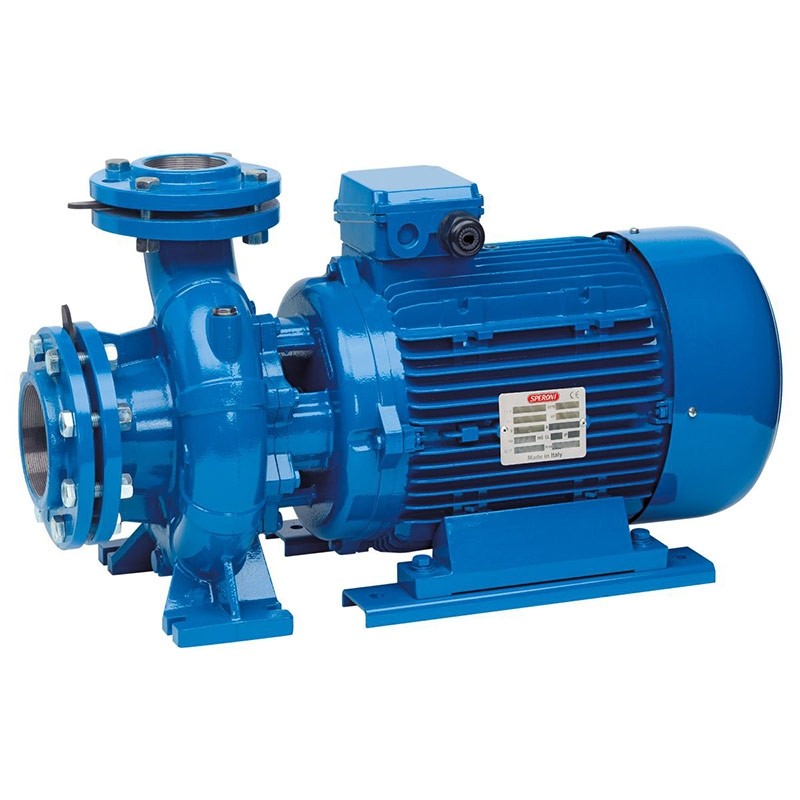

Speroni CS 80 Professional Centrifugal Electric Pumps
The Speroni CS 80 professional electric pumps are a series of professional, high-quality, monobloc, single-impeller centrifugal electric pumps for large water flow rates and a wide range of uses.
These machines are ideal for domestic, industrial, agricultural, civil and plant use and are suitable for various applications such as water supply, irrigation both by sprinkler and by flow, feeding autoclaves and pressure boosters, heating, air conditioning and various uses involving the transfer of clean liquids .
The Speroni CS 80 range can be used for pumping clean water or other chemically and mechanically non-aggressive or corrosive liquids.
These electric pumps can be installed in all positions except the one with the suction mouth facing upwards.
These high-performance electric pumps have a pump body connected directly to the motor via a support and are equipped with flanged suction and delivery ports (PN 10) and threaded counterflanges.
Available models selectable from the drop-down menu:
- CS 80-160 D - 11 kW - 15 HP - Three-phase 400/690 V
- CS 80-160 C - 15 kW - 20 HP - Three-phase 400/690 V
- CS 80-160 B - 18.5 kW - 25 HP - Three-phase 400/690 V
- CS 80-160 A - 22.5 kW - 30 HP - Three-phase 400/690 V
- CS 80-200 B - 30 kW - 40 HP - Three-phase 400/690 V
- CS 80-200 A - 37 kW - 50 HP - Three-phase 400/690 V
Limits of use
- Liquid temperature limit up to 35°C for domestic use (EN 60335-2-41)
- Liquid temperature limit up to 90°C for other uses
- Ambient temperature up to 40°C
- Monometric suction height up to 7 m
- Continuous service
Materials
- Pump Course: Cast Iron
- Engine mount: Cast iron
- Impellers: Cast iron
- Crankshaft: AISI 304 stainless steel
- Mechanical seals: Ceramic / Graphite / NBR
Engines
- Class F insulation
- IP 55 protection
- Three-phase 400/690V-50Hz P2 > 7.5 kW
- 2-pole induction electric motor (n=2850 min-1)
Hydraulic Curve
Details of available models
Product Dimensions
Technical Data
| Model | CS 80-160 D | CS 80-160 C | CS 80-160 B | CS 80-160 A | CS 80-200 B | CS 80-200 A |
| Phase | 400V | 400V | 400V | 400V | 400V | 400V |
| Rated power HP | 15 | 20 | 25 | 30 | 40 | 50 |
| Nominal power kW | 11 | 15 | 18.5 | 22.5 | 30 | 37 |
| Power consumption kW | 12.5 | 15 | 18.5 | 22 | 33.5 | 39 |
| Liquid Flow Rate | 3000 L/min | 3250 L/min | 3500 L/min | 3750 L/min | 4000 L/min | 4000 L/min |
| Suction Diameter | Ø 4'' | Ø 4'' | Ø 4'' | Ø 4'' | Ø 4'' | Ø 4'' |
| Delivery Diameter | Ø 3'' | Ø 3'' | Ø 3'' | Ø 3'' | Ø 3'' | Ø 3'' |
| Protection Class - Insulation | IP 55 - Class F | IP 55 - Class F | IP 55 - Class F | IP 55 - Class F | IP 55 - Class F | IP 55 - Class F |
| Max. Liquid Temp. | 90 °C | 90 °C | 90 °C | 90 °C | 90 °C | 90 °C |
| Max. Ambient Temp. | 40 °C | 40 °C | 40 °C | 40 °C | 40 °C | 40 °C |
Technical Data
| Model | CS 80-160 D | CS 80-160 C | CS 80-160 B | CS 80-160 A | CS 80-200 B | CS 80-200 A |
| Phase | 400V | 400V | 400V | 400V | 400V | 400V |
| Rated power HP | 15 | 20 | 25 | 30 | 40 | 50 |
| Nominal power kW | 11 | 15 | 18.5 | 22.5 | 30 | 37 |
| Power consumption kW | 12.5 | 15 | 18.5 | 22 | 33.5 | 39 |
| Liquid Flow Rate | 3000 L/min | 3250 L/min | 3500 L/min | 3750 L/min | 4000 L/min | 4000 L/min |
| Suction Diameter | Ø 4'' | Ø 4'' | Ø 4'' | Ø 4'' | Ø 4'' | Ø 4'' |
| Delivery Diameter | Ø 3'' | Ø 3'' | Ø 3'' | Ø 3'' | Ø 3'' | Ø 3'' |
| Protection Class - Insulation | IP 55 - Class F | IP 55 - Class F | IP 55 - Class F | IP 55 - Class F | IP 55 - Class F | IP 55 - Class F |
| Max. Liquid Temp. | 90 °C | 90 °C | 90 °C | 90 °C | 90 °C | 90 °C |
| Max. Ambient Temp. | 40 °C | 40 °C | 40 °C | 40 °C | 40 °C | 40 °C |
