Biemmedue EK S 14
Electric Fan Heater with Fan
Wall Heater
MPN: 06EK113
Electric 400V - 14 kW
Thermostat Provision
59.6 x 33.5 x 48 cm - 1600 m³/h
Warranty 2 years
Shipped on Pallet

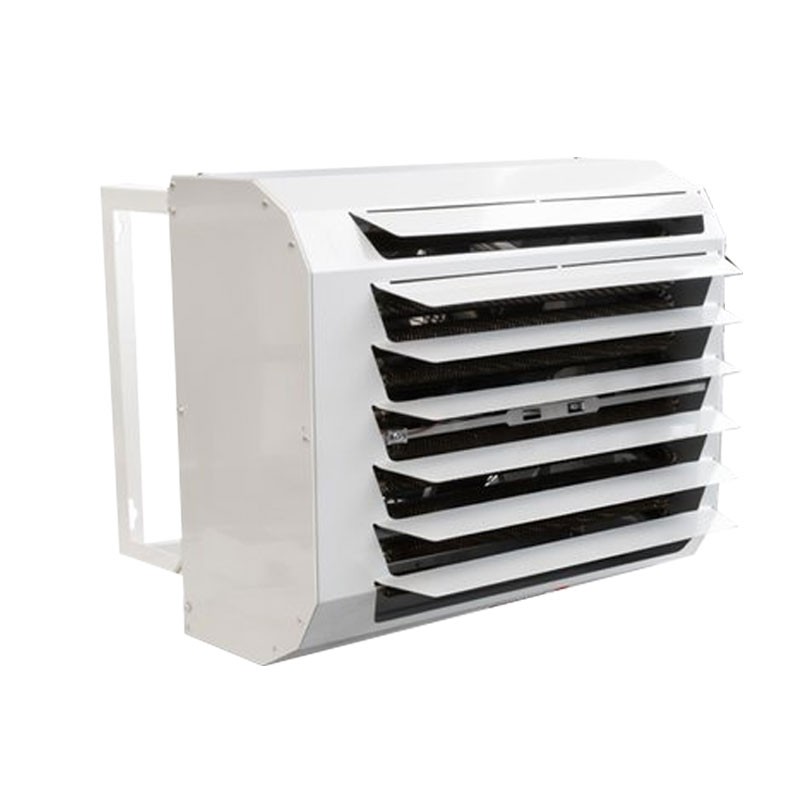

Biemmedue EK S 14 - Electric Fan Heater with Fan for Wall Heating
The Biemmedue EK S 14 fan heater is a device used for heating environments using electrical energy . This heater can be installed on the wall or ceiling and has resistors and an internal fan. Designed for heating large areas such as gyms, sports facilities, warehouses and farms, the Biemmedue EK S electric fan heater is the ideal solution for heating large spaces that require high power and efficiency.
Thanks to the high efficiency three-phase fan and the innovative heat exchange system , this fan heater guarantees uniform and rapid heating . It is equipped with robust and functional components, designed to last over time and provide constant performance even in intensive conditions . The EK S model also offers an intuitive user experience, complete with a remote control with 3 m cable and an advanced safety system .
Technical Specifications
Biemmedue EK S 14 has a max. nominal thermal power of 14 kW with a 100% efficiency, managing to guarantee an air flow rate of 1600 m²/h. With a three-phase 400 V electrical power supply, this fan heater is extremely silent, reaching just 65 db(A) at 1 meter away.
Functional Specifications
Biemmedue EK S 14 is equipped with electric resistors that heat the air sucked in from the environment . The fan heater takes the cold air, conveys it through the resistors, where it is heated, and reintroduces it into the environment, ensuring continuous circulation of hot air for uniform and efficient heating.
This professional electric heating system is highly appreciated for its efficiency and ease of installation , especially in environments where it is not possible to use other heating systems such as commercial, industrial and even domestic premises.
Quiet and High Efficiency Fan
The unit is equipped with particularly quiet three-phase fans, which ensure even heat distribution without annoying noises.
AISI 321 Armored Electric Resistors
The finned resistors, made of AISI 321 stainless steel, improve heat exchange, optimizing energy efficiency and the life of the appliance. The external casing of Biemmedue EK S is instead made of painted steel sheet.
Room Thermostat Socket and Remote Control
The room thermostat socket allows you to precisely adjust the desired temperature, ensuring comfort and energy savings. The practical remote control with 3 m cable allows you to control the unit from a distance, improving practicality and ease of use.
Power Selector
The power selector allows you to adapt the operation of the fan heater to the specific needs of the room, maximising efficiency.
Security Systems
Equipped with a manual reset safety thermostat and a post-ventilation thermostat , this model ensures maximum safety during operation and cooling of the unit.
Maximum Ergonomics of Use
The Biemmedue EK S Electric Heater is supplied with ceiling or wall installation brackets to allow for easy use depending on the area to be heated. Furthermore, its fins are adjustable, allowing the air flow to be directed where necessary.
Advantages over traditional heating
Biemmedue EK S Aerotermi electric heaters do not produce smoke, harmful gases or vapours which can be dangerous to your health or cause safety risks caused by open flames or gas leaks. Furthermore, Biemmedue air heaters are much easier to install and do not require masonry work or the laying of pipes for the transport of fuels or connections to boilers.
Another advantage is the greater control of temperature and heat distribution , allowing you to easily adjust the desired temperature according to your preferences and the characteristics of the area to be heated.
Finally, energy efficiency and lower environmental impact also play in favour of the Biemmedue EK S Air Heater, which in fact has a lower impact than traditional fossil fuel heating systems.
Characteristics
- High efficiency silent three phase fans
- AISI 321 armoured finned electric resistors
- Room thermostat socket
- Power selector
- Manual reset safety thermostat
- Post-ventilation cooling thermostat
- External casing in painted sheet steel
- Adjustable air diffusion fins
- Ceiling or wall installation brackets
- Remote control with 3m cable
Standard Equipment
- Remote control with 3m cable
Optional Equipment
The following optional accessories can be purchased on our website in the accessories section:
- Precision Electronic Thermostat IP55 with Display - cod. 02AC294
- Room Thermostat +5/+30°C with 10 m cable - code 02AC581
- 4 / 5 pole plug - cod. 06AC103 / 06AC105
Technical Data
| Power Supply | 400V |
| Min Rated Power | 8 kW - 6,878 Kcal/h - 27,297 BTU/h |
| Max Rated Power | 14 kW - 12,037 Kcal/h - 47,769 BTU/h |
| Thermostat | Optional |
| Air Flow | 1600 m³/h |
| Yield | 100% |
| Thermal Jump at 20°C | 25 - 16 °C |
| Dimensions | 59.6 x 33.5 x 48 cm |
| Weight | 29 kg |
Technical Data
| Power Supply | 400V |
| Min Rated Power | 8 kW - 6,878 Kcal/h - 27,297 BTU/h |
| Max Rated Power | 14 kW - 12,037 Kcal/h - 47,769 BTU/h |
| Thermostat | Optional |
| Air Flow | 1600 m³/h |
| Yield | 100% |
| Thermal Jump at 20°C | 25 - 16 °C |
| Dimensions | 59.6 x 33.5 x 48 cm |
| Weight | 29 kg |
