BIEMMEDUE GA/N
Wall-mounted Heater

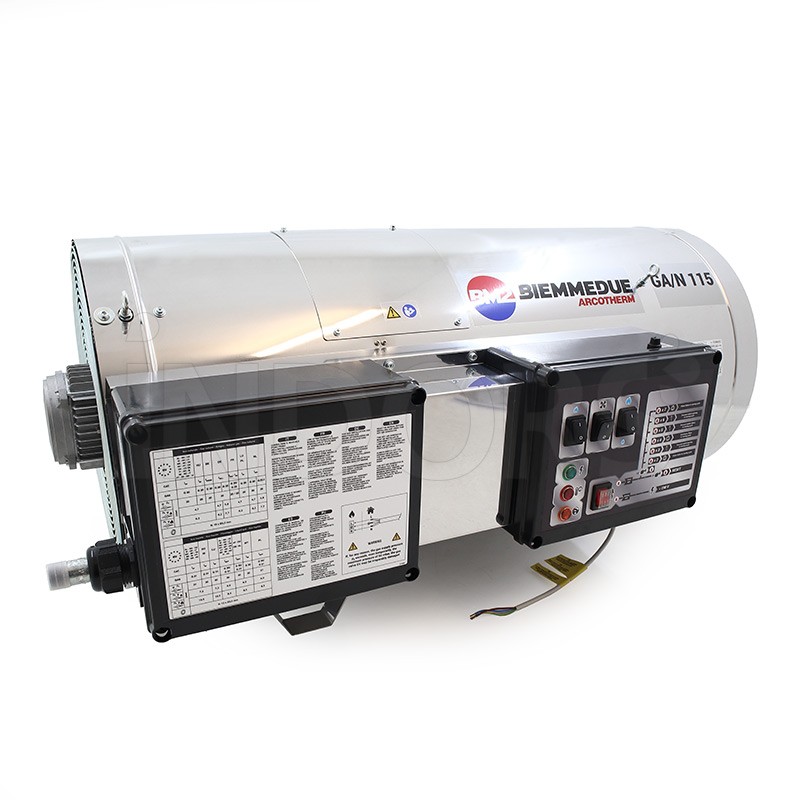

Biemmedue GA/N - Wall-mounted Heater

The Biemmedue GA/N series hot air generators are suspended appliances designed to supply low-pressure hot air through direct combustion .

Each model in the series is characterised by different specifications for thermal power and efficiency , allowing you to choose the one best suited to your needs.

• GA/N 45 C - Code 03GA521
  Maximum Thermal Power: 45.64 kW
  This model is ideal for small applications that require an efficient supply of hot air. The built-in burner works with LPG or methane , ensuring optimal energy efficiency and minimizing emissions of CO, NOx and Ethylene into the environment . The internal and external structure in AISI 430 stainless steel provides resistance and durability over time , while the IP 65 electrical panel protects the generator from humidity and dust. It is also possible to connect thermostats, humidistats or timers for automated management of the system.
• GA/N 70 C - Code 03GA531
  Maximum Thermal Power: 71.27 kW
  This model offers more power than the GA/N 45 C, making it suitable for medium-sized environments. The main features are similar, including the possibility of using the automatic burner with LPG or methane . Also in this case, the generator complies with the UNI EN 17082:2019 regulations , guaranteeing high standards of safety and performance.
• GA/N 95 C - Code 03GA541
  Maximum Thermal Power: 97.07 kW
  The GA/N 95 C is an ideal choice for larger spaces requiring a greater amount of warm air . With its superior heat output, it can meet the heating requirements of larger industrial or commercial spaces. The flame control with ionisation detection and safety thermostat ensure reliable and safe operation.
• GA/N 115 C - Code 03GA551
  Thermal Power: 95.07 ÷ 116.64 kW
  This is the most powerful model of the GA/N series, suitable for the most demanding applications that require a considerable amount of hot air . Equipped with a power selector adjustable between 95 and 116 kW , this generator offers flexibility in managing the thermal power based on the needs of the moment.

All variants of the GA/N series boast an easily accessible IP55 motor for ease of maintenance and cleaning .

The possibility of continuous or timed post-ventilation ensures optimal control of temperature and energy consumption. In addition, the winter-summer switch allows the generator to be used as a simple fan in the hottest periods of the year.

These hot air generators are designed in compliance with UNI EN 17082:2019 regulations, ensuring high quality and safety standards.

The provision for connection to a centralized air conditioning system makes them highly versatile for multiple applications.

Thanks to the suspension hooks , installation is easy and safe.

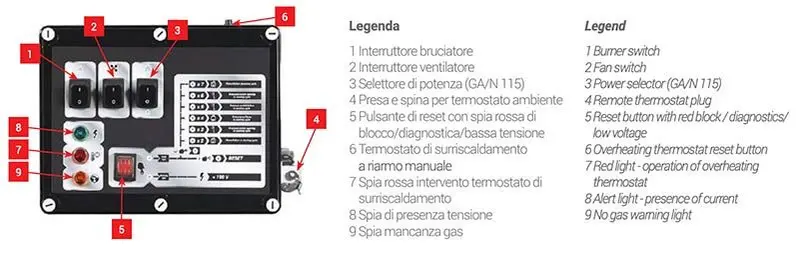

CONTROL PANEL

In conclusion, Biemmedue GA/N hot air generators offer reliable performance , energy efficiency and reduced emissions , making them an ideal choice to meet the heating and ventilation needs of environments of different sizes and sectors.

CHARACTERISTICS

• Direct combustion
• Automatic built-in LPG or methane burner with very low CO, NOx and Ethylene emissions
• IP 65 electrical panel
• Socket for connection to thermostat, humidistat or timer
• External and internal structure in AISI 430 stainless steel
• Automatic ignition
• Flame control with ionization detection
• Safety thermostat
• Provision for connection to centralized air conditioning system
• Fan air pressure monitoring with IP 65 paddle switch
• Gas ramp in IP65 watertight box
• IP55 motor installed in view for easy maintenance and cleaning and free from overheating
• Continuous post-ventilation (fan always on) or timed (30 seconds)
• Winter-summer switch for use as a fan
• Complies with UNI EN 17082:2019 regulations
• Suspension hooks
• Low voltage control
• Power selector 95-115 kW (GA/N 115)
