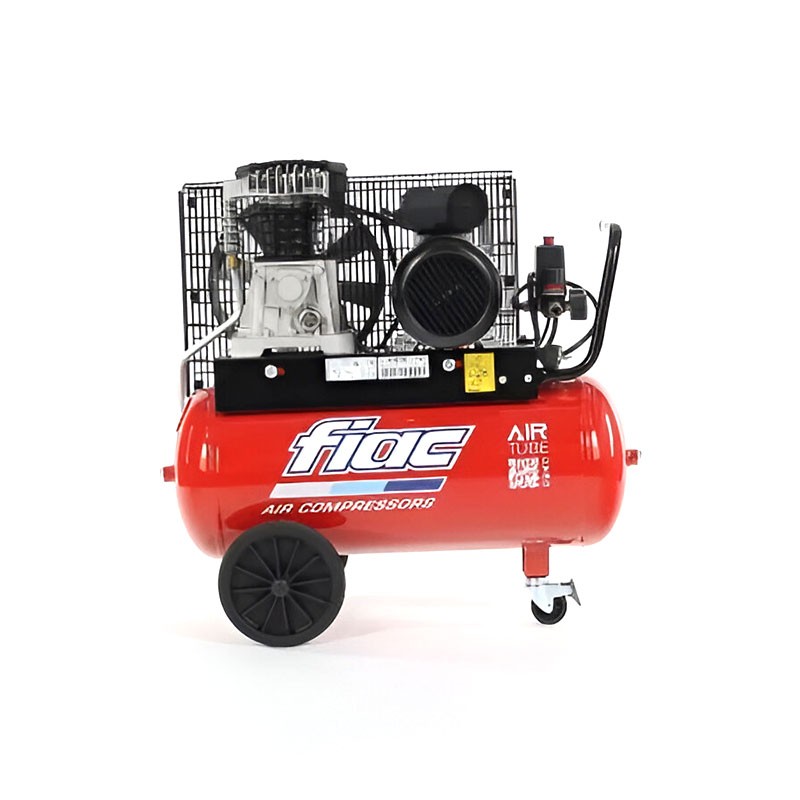

Fiac AB 50/268 and 50/360
Compressor 50 L
from 2 to 3 HP

Fiac AB 50/268 and 50/360 - Single Phase Compressor 230V 50 L from 2 to 3 HP

The Fiac AB 50 belt compressor is a reliable solution to meet the air compression needs in various industrial and commercial contexts. Thanks to its excellent features , it is widely used for a wide range of applications such as mechanical workshops , painting works , pneumatic systems and much more.

The Fiac AB 50 belt compressor is a 50 L compressor that combines power , efficiency and practicality . With its versatility and performance, this Fiac compressor can significantly improve industrial operations, ensuring a constant flow of compressed air to meet the most demanding work needs.

The Fiac AB 50 belt compressor is equipped with important features that make it reliable and efficient for various applications .

Available Models

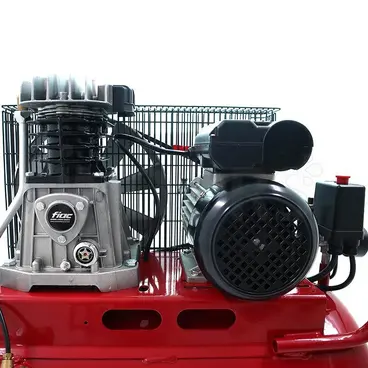

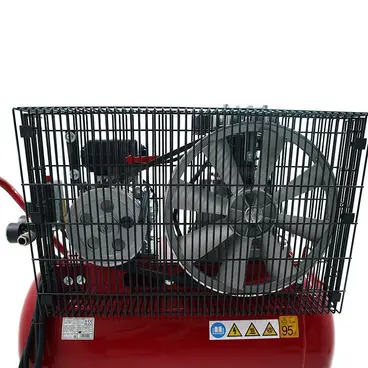

To ensure optimal and long-lasting operation, the compressor is equipped with cooling tubes that help maintain an adequate temperature during use. The cast iron cylinder offers a robust and resistant structure , ensuring constant and reliable performance over time. In addition, the compressor is designed to offer comfort and convenience to the user , thanks to the ergonomic handle that facilitates transport and the effective system of anti-shock feet, which provides stability and protection during use.

A large oil sight glass allows you to easily monitor the oil level, ensuring proper lubrication. Rubber wheels allow easy maneuverability of Fiac AB 50 and help you move easily from one place to another.

Furthermore, the pressure regulator and double pressure gauge offer precise control of the air pressure both in the tank and in the outlet line, allowing flexible and customized use of the Fiac AB 50 compressor to meet a wide range of industrial and professional needs.

Functional specifications

Fiac compressor with 50 L tank

This compressor is equipped with a 50 L tank that allows it to accumulate a significant amount of compressed air . Fiac AB 50 works at a maximum pressure of 10 bar . The AB 50/268 model guarantees a continuous air flow of 250 l/min while the AB 50/360 model has a flow rate of 360 l/min .

Compact compressor

The Fiac AB 50 compressor is quite compact and can be easily moved and positioned as needed. In terms of power, the Fiac AB 50-268 model is equipped with a 2 HP (1.5 kW) engine while the Fiac AB 50/360 model has a 3 HP (2.2 kW) engine that gives it the power needed to ensure optimal performance.

Silent operation

The pumping unit offers a number of advantages, including quiet operation, an important feature in noise-sensitive working environments .

Characteristics

• Single phase compressor 230V with belt drive
• Single stage 2 cylinder engine
• Max pressure 10 bar
• Capacity 50 L
• Power from 2 to 3 HP
• Engine speed from 1240 to 1500 RPM
• Flow rate from 250 to 350 L/min
• Noise level from 72 to 74 dB
