KTC KPM 3.5
SCREW Compressor
Petrol 10 bar

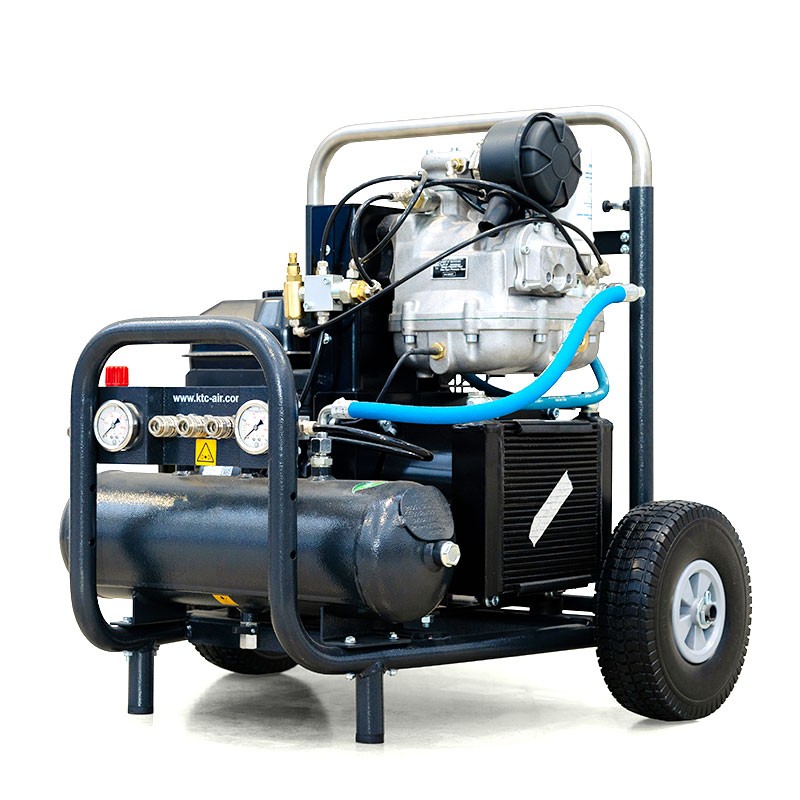

KTC KPM 3.5 - 5 HP Petrol Screw Compressor for Professional Use

KTC KPM 3.5 is a screw air compressor with a petrol engine , designed to ensure a constant supply of compressed air in contexts where electrical power is not available. The 5 HP Briggs & Stratton Vanguard engine ensures continuous power, while the VMC Adam 60 V60 airend offers a real flow rate of 400 L/min at an operating pressure of 10 bar . The structure is optimised for easy transport , with large diameter puncture-proof wheels and a reinforced frame for use on uneven surfaces.

All KTC compressors are entirely designed and built in Italy , with high quality components and Made in Italy workmanship.

Technical specifications

This lubricated compressor is equipped with a 4-stroke petrol engine with a nominal power of 3.7 kW (5 HP) and manual recoil start . The VMC Adam 60 V60 rotary screw guarantees a constant and regular air flow with an effective flow rate of 400 L/min , at a working pressure of 10 bar .

The air tank has a capacity of 7 L , sufficient to stabilize the output pressure, while the fuel tank holds 3 L of petrol , offering good operating autonomy. The noise level is 88 dB(A) and the outlet is equipped with a G 1/2'' quick coupling for immediate connection of the tools.

Functional specifications

Fuel saving and emission reduction

The automatic engine speed control system intervenes during the compression phase to increase the revs, ensuring that the working pressure is reached quickly, and automatically slows down when the maximum pressure is reached. This intelligent control optimizes fuel consumption and reduces emissions.

Oversized oil radiator

This professional compressor is equipped with a large oil radiator that ensures efficient dissipation of heat produced during operation, maintaining the system temperature within safe limits and preventing overheating even during prolonged use.

Puncture-proof wheels for transport on difficult terrain

The robust construction with oversized puncture-proof wheels ensures excellent mobility even on rough terrain, making it easy to move the unit around construction sites or difficult outdoor environments without the risk of punctures or damage.

Quick coupler for air tools for fast and safe connections

The quick connect coupling allows for quick and easy connection of air tools, reducing set-up time and increasing operational efficiency during professional activities.

Why choose a screw compressor

High performance

Screw compressors, such as KTC’s KPM 3.5, offer continuous air production without the interruptions typical of piston models. The volumetric efficiency of the airend reduces idle cycles and increases productivity.

Excellent air quality

The screw system ensures a stable, pulsation-free airflow , ideal for tools that require constant pressure . This improves precision and reduces the risk of malfunctions.

Great Reliability

The reduction of mechanical stress, the quality of the Vanguard engine and the construction simplicity of the airend ensure long operating life , reduced maintenance and maximum machine availability even in critical conditions.

Characteristics

• Professional screw compressor
• B&S 3.7 kW - 5 HP internal combustion engine
• Working pressure 10 bar
• Fuel tank 3 L
• 7 L air tank with 310 L/min flow rate
• Adam 60 V60 screw group
• High technical quality Made in Italy
