KTC KPM 27
SCREW Compressor
Petrol 10 bar

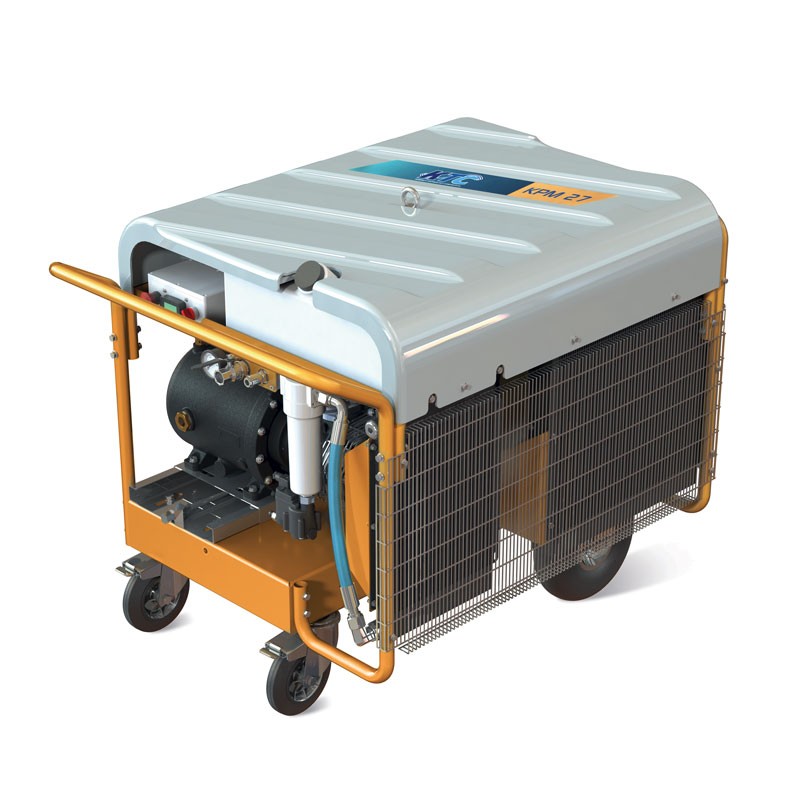

KTC KPM 27 - 21 HP Petrol Screw Compressor for Professional Use

KTC KPM 27 is a screw air compressor powered by a petrol engine, designed to ensure high performance in environments without electrical power. The 21 HP Briggs & Stratton Vanguard OHV engine allows an air flow rate of 2180 L/min and a stable pressure of 10 bar . The double air/oil cooling system and automatic condensate drain ensure efficient operation and quality air.

All KTC compressors are entirely designed and built in Italy , with high quality components and Made in Italy workmanship.

Technical specifications

This lubricated compressor is equipped with a 4-stroke petrol engine , with a nominal power of 16 kW (21 HP) and electric start . The VMC Pack Smart 90 XC airend with V 90XC screw is designed to guarantee stable and continuous air production , with an effective flow rate of 2180 L/min and an operating pressure of 10 bar .

Designed without air tank to ensure compactness and continuous compressed air. The 20 L petrol fuel tank ensures a good level of autonomy during use. The noise level is 97 dB(A) and the machine is equipped with a 3/4'' BSPP quick coupling , which allows immediate connection of pneumatic tools.

Functional specifications

Fuel saving and emission reduction

The KPM 27 professional compressor has a self-regulating pneumatic device that modulates the speed based on the required pressure . During compression, the engine accelerates to ensure maximum efficiency and automatically reduces when maximum pressure is reached, optimizing consumption, emissions and mechanical wear.

Air/oil cooling system

The integrated double air/oil cooler ensures effective dissipation of heat generated during operation, maintaining optimum temperatures for lubricating the airend and preventing overheating that could compromise performance.

Automatic condensate drain

The automatic drain continuously removes accumulated moisture in the circuit, improving the quality of the compressed air and protecting the compressor and pneumatic tools from water damage.

Condensation separator

The integrated separator filters humidity and impurities from the compressed air, ensuring a flow of dry and clean air , essential for the correct functioning and life of pneumatic tools,

Electric start and control

The electric start allows for quick and effortless starting even in difficult environmental conditions, while the on/off selector allows for simple and immediate control of the compressor.

Quick coupler for air tools for fast and safe connections

The 3/4'' BSPP quick connect fitting allows for quick and easy connection of air tools, reducing preparation time and increasing operational efficiency during professional activities.

Portability and handling

The integrated lifting ring makes it easy to transport and place the compressor, making it suitable for versatile and practical use on construction sites or in other working environments.

Why choose a screw compressor

High performance

Screw compressors, such as KTC’s KPM 27, offer continuous air production without the interruptions typical of piston models. The volumetric efficiency of the airend reduces idle cycles and increases productivity.

Excellent air quality

The screw system ensures a stable, pulsation-free airflow , ideal for tools that require constant pressure . This improves precision and reduces the risk of malfunctions.

Great Reliability

The reduction of mechanical stress, the quality of the Vanguard engine and the construction simplicity of the airend ensure long operating life , reduced maintenance and maximum machine availability even in critical conditions.

Characteristics

• Professional screw compressor
• B&S 16 kW - 21 HP internal combustion engine
• Working pressure 10 bar
• Fuel tank 20 L
• Air flow 2180 L/min
• Pack Smart V90 XC screw group
• High technical quality Made in Italy
