ABAC LN2 B7000 0 T7.5
Silenced Compressor 7.5 HP
DOL / YD Starting
400V - 7.5 HP
11 bar - 660 L/min
Without Tank

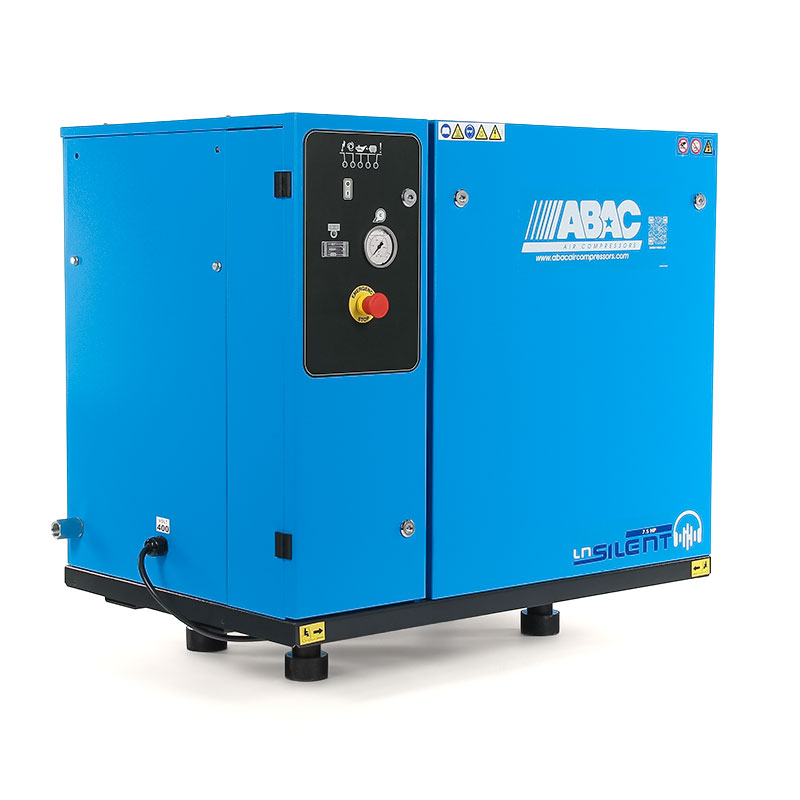

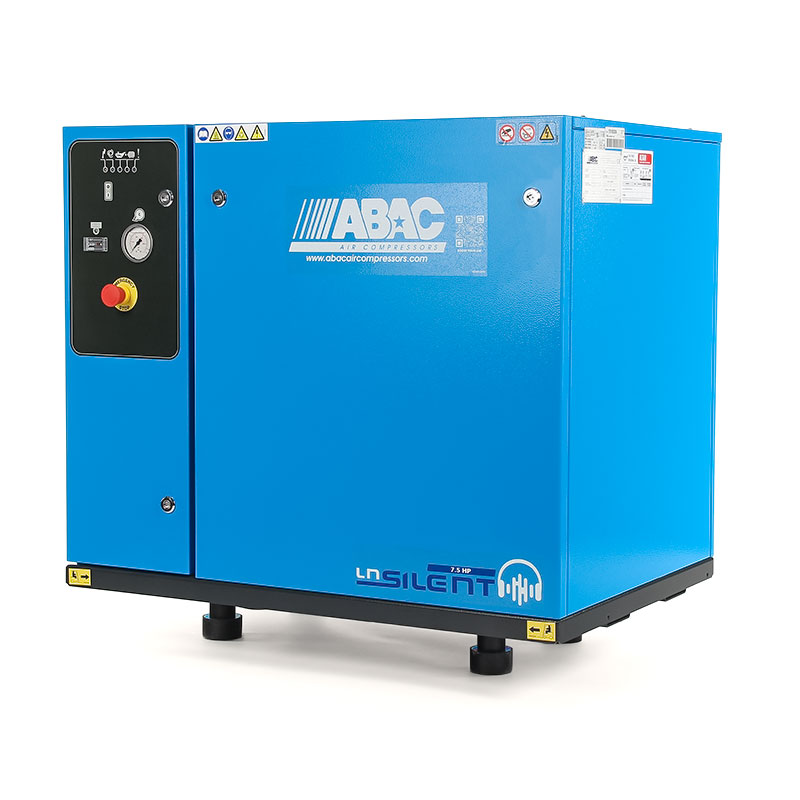

Abac LN2 B7000 0 T7.5 YD / DOL - Silenced Piston Compressor 7.5 HP
Abac LN2 B7000 0 T7.5 is an air compressor that works with pistons and belt transmission , offers high performance , notable reliability and silence , it also features a high efficiency cooling system and an ergonomic design.
Technical specifications
The compressor is oil lubricated and has an air flow of 876 L/min and is capable of exerting a pressure of 11 bar, with a power of 5.5 kW , a motor with 944 RPM and 7.5 HP .
What characterizes this compressor is its extreme silence , in fact it emits only 68 dB and this allows the operator to be able to use this machinery even in the vicinity of private buildings, healthcare facilities, all this is guaranteed by the presence of anti-vibration bearings .
Abac LN2 B7000 0 T7.5 is three-phase (400 V) , features a B7000 pump , has a front pressure gauge, an easy-to-read integrated control panel and a modern design , and also allows for easy handling .
MODELS AVAILABLE
- Direct Start - LN2 B7000 0 T7,5 DOLL (4116026396)
- Star Delta Starter - LN2 B7000 0 T7,5 YD (4116026398)
Characteristics
- Belt transmission
- Silent
- Reliable
- Ergonomic design
- B7000 pump
Superior performance, easy to use
air filter in a cool and easily accessible areaLower noise level
Sound-absorbing foam on all panels of the structureReliability in any condition
Efficient cooling system with large flywheelEasy to read
Pressure gauge on the front panel, ergonomically designedReliability and long life
Pressure switchLong-lasting pumps and drive components
Non-return valve to depressurizeEasy access to internal components
Removable panels for easy maintenanceLower noise level
Anti-vibration bearingsLower noise level
ShutterHigher performance
Intercooler and aftercooler
Technical data
Model | LN2 B7000 0 T7.5 DOL | LN2 B7000 0 T7.5 YD |
Code | 4116026396 | 4116026398 |
Aria Resa | 906 L/min | 906 L/min |
Tank capacity | 0 L | 0 L |
Pressure | 11 bars | 11 bars |
Absorbed power | 5.6 kW | 5.6 kW |
Power Supply | 400V | 400V |
Engine Power | 7.5 HP | 7.5 HP |
Noise | 68 dB(A) | 68 dB(A) |
Dimensions (without packaging) | 100 x 74 x 95.5 cm | 100 x 74 x 95.5 cm |
Weight (without packaging) | 240kg | 240kg |
Technical data
Model | LN2 B7000 0 T7.5 DOL | LN2 B7000 0 T7.5 YD |
Code | 4116026396 | 4116026398 |
Aria Resa | 906 L/min | 906 L/min |
Tank capacity | 0 L | 0 L |
Pressure | 11 bars | 11 bars |
Absorbed power | 5.6 kW | 5.6 kW |
Power Supply | 400V | 400V |
Engine Power | 7.5 HP | 7.5 HP |
Noise | 68 dB(A) | 68 dB(A) |
Dimensions (without packaging) | 100 x 74 x 95.5 cm | 100 x 74 x 95.5 cm |
Weight (without packaging) | 240kg | 240kg |
On Request Accessories
