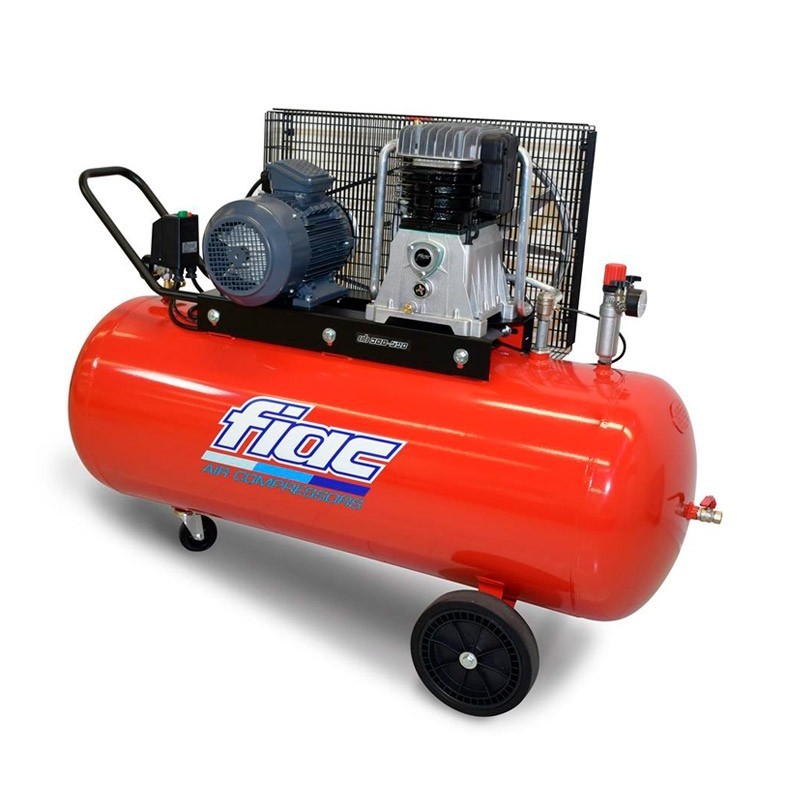

Fiac AB 300/678 and 300/858
270 L Compressor
5.5 and 7.5 HP with wheels

Fiac AB 300/678 and Fiac AB 300/858 - Professional Belt-Driven Compressors 270 L from 5.5 to 7.5 HP with wheels

The Fiac AB 300/678 and Fiac AB 300/858 are professional belt-driven compressors made in Italy, designed to deliver high performance. With a high air flow rate of 650 L/min for the AB 300/678 model and 831 L/min for the AB 300/858 model, and a pressure of 10 bar , they are ideal for industrial and professional applications.

Equipped with cast iron cylinders , they ensure strength and reliability. The solid structure is designed to minimize vibrations, while the one-piece crankcase prevents oil leaks thanks to its sealed construction. The 270-liter tank , coated with epoxy powder, guarantees strength and a long life.

Operating at low rotation speed (1000/1280 RPM) , Fiac AB 300 ensure greater reliability, reducing wear and extending the useful life of the compressor.

Available Models

Functional Specifications

Belt Driven Compressor

This belt-driven , oil-lubricated piston compressor is ideal for professional use . The Fiac AB 300 compressor is a two-stage compressor , equipped with two pistons that compress the air with two pressure jumps, to obtain a lower air temperature. With cooling pipes , cast iron cylinder , pressure switch and overload protection , double pressure gauge , metal bearing cover and large oil sight glass . Reduced vibration and noise impact.

Epoxy powder coating

Epoxy powder coated to guarantee perfect durability over time.

Characteristics

• Belt compressor
• 400 / 230 V
• Single-stage 2-cylinder engine
• Max pressure 10 bar
• Capacity 270 L
• Power 5.5 HP / 7.5 HP
• Engine speed 1000 / 1280 RPM
• Flow rate 650 / 831 L/min
• Noise level 74 / 76 dB(A)

Standard equipment

• Wheels
• Swivel wheels
• Nozzle
• Instruction manual
