Fiac ABT 500
Compressor 500 L
Double Motor

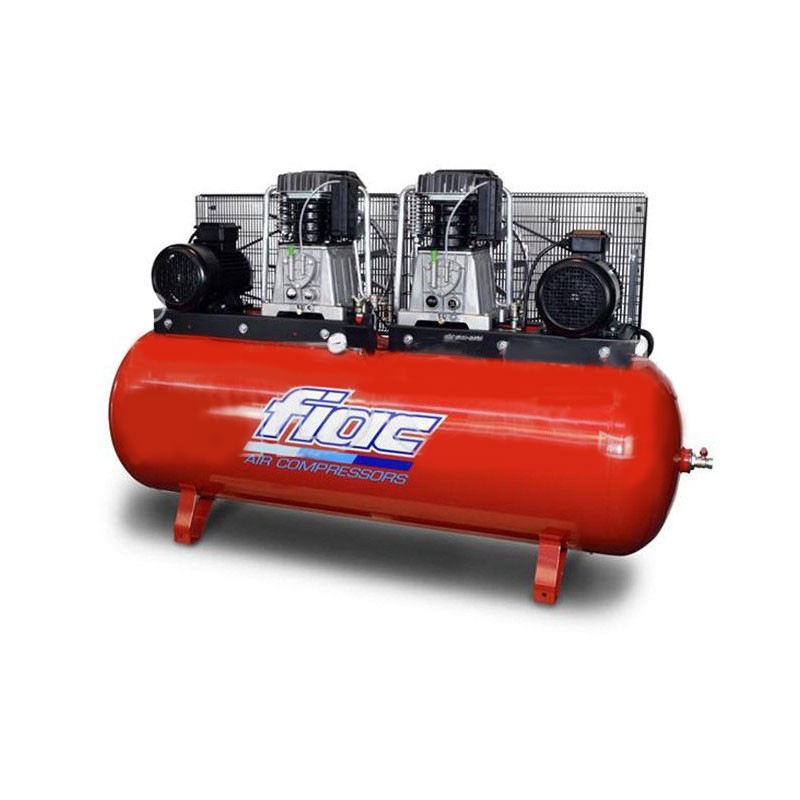

Fiac ABT 500 - Professional Compressor 500 L with Double Motor from 4+4 to 7.5+7.5 HP

Fiac ABT 500 is a powerful fixed compressor designed to meet the air compression needs in professional and industrial contexts, where power is essential to obtain excellent results. Thanks to its high quality features , it can be used for a wide range of applications such as mechanical workshops, painting jobs, pneumatic systems and much more.

This belt compressor has a 500 L capacity air tank with 400V three-phase power supply to ensure excellent performance. Versatile and powerful , the Fiac ABT 500 compressor ensures a constant flow of compressed air , meeting even the most demanding work needs.

Available Models

Functional Specifications

Fiac compressor with 500 L tank

This compressor is equipped with a 500 L tank to allow a significant accumulation of compressed air. Fiac ABT 500 works at a maximum pressure of 10 bar , ensuring a continuous air flow from 1080 to 1660 L/min , depending on the model chosen.

Silent operation

The pumping unit offers a number of advantages, including quiet operation , an important feature in noise-sensitive working environments, not exceeding 78 dB .

Air Compressor 500 L Fiac

FIAC Italian Brand Leader in the Production of Compressed Air Machines . Company certified UNI EN ISO 9001:2008 Professional Quality Guarantee.

Characteristics

• 400V three-phase compressor with belt drive
• 2-cylinder two-stage engine
• Max pressure 10 bar
• Capacity 500 L
• Power from 4+4 to 7.5+7.5 HP
• Engine speed from 1000 to 1280 RPM
• Flow rate from 1080 to 1660 L/min
• Noise level from 76 to 78 dB
