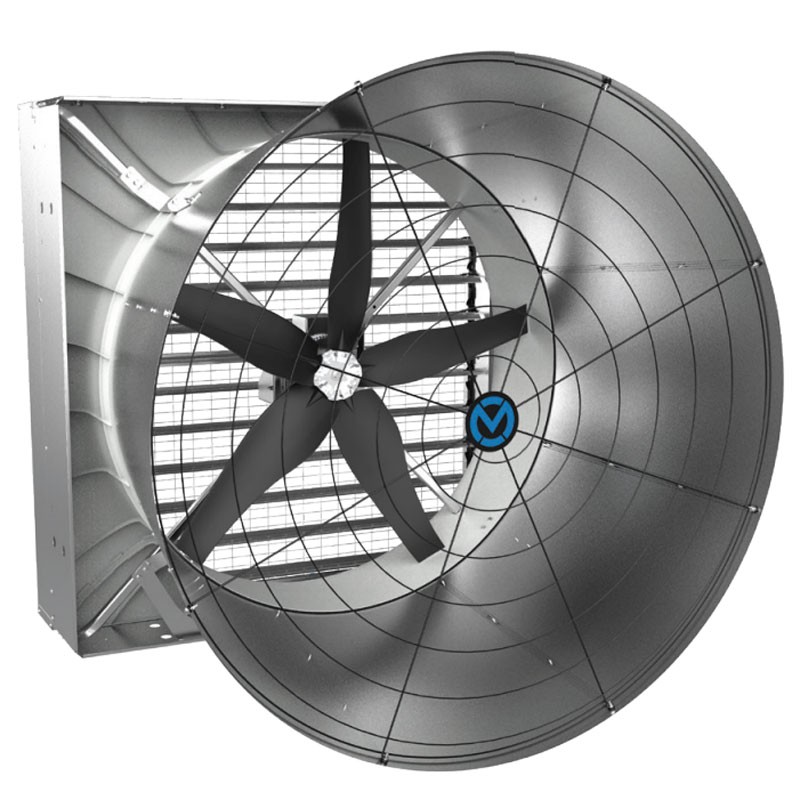

Munters Saturn ONE
Extractor Fan
Industrial 1.5 to 2 HP

Munters Saturn ONE - Industrial Cone Extractor Fan 1 to 2 HP

Munters Saturn ONE is an industrial air extractor designed to ensure a high air flow , optimal energy efficiency and long operating life. Ideal for poultry plants and greenhouses , it combines robust construction and patented technologies to improve ventilation and animal welfare , while reducing management costs.

Available models

• Saturn One 1.5 HP fan 140 cm 3 blades - cod. 2611106EU
• Saturn One 2 HP fan 140 cm 6 blades - cod. 2611105EU

Technical specifications

Saturn ONE is equipped with a 1400 mm propeller and is available in versions with a 1.5 or 2 HP belt-driven AC motor, guaranteeing a maximum static pressure of up to 100 Pa . The compact design is designed for quick installation and easy maintenance , ensuring constant performance in all operating conditions.

Dimensions

Functional specifications

Patented AGS system

The Anti-Gravity Shutter (AGS) system is a Munters exclusive feature that ensures the fan is hermetically sealed when not in operation . This prevents air, dust and light from entering the structure, improving energy efficiency and environmental control.

Modular design and simplified maintenance

The modular structure of the Saturn ONE allows for rapid installation and facilitates routine maintenance . Simplified access to internal components reduces downtime and improves the operational reliability of the ventilation system.

Maximum compatibility and versatility

Designed to operate in any size of facility, these models easily adapt to existing configurations thanks to their compact structure and available grilling options. They are particularly suitable for poultry farms, greenhouses and facilities with controlled ventilation requirements .

Durable and sustainable construction

Production takes place in plants powered by 100% renewable energy , contributing to the environmental sustainability of the entire life cycle of the product.

Munters Protect Anti-Corrosion Fans

In agricultural environments, high humidity, acidic pH and aggressive chemicals accelerate metal corrosion. To meet these challenges, Munters has developed Munters Protect , an innovative coating for fan blades that is more corrosion resistant than AISI 430 stainless steel and pre-painted metal. The result of advanced manufacturing processes, it offers greater durability , reliability and performance in the most demanding conditions. The following images show the comparison after 700 hours of salt spray exposure : the SS 430 stainless steel blades (left) show obvious signs of wear, while the Munters Protect blades (right) maintain a healthy and resistant appearance .

Air Flow and Efficiency

Characteristics

• Industrial and agricultural air extractor
• 400V three-phase power supply
• Engine power from 1.5 to 2 HP
• AC Motor
• Belt drive with low maintenance
• Fan diameter: 140 cm (55”)
• 3 or 6 blade self-cleaning propeller in treated steel
• Modular structure for wall or pass-through mounting
• Noise level between 75.3 and 76.9 dB(A)
• Anti-corrosion structure with Munters Protect treatment
