Trotec PT 15000 S
Commercial Air Conditioner
2 Heat Exchangers

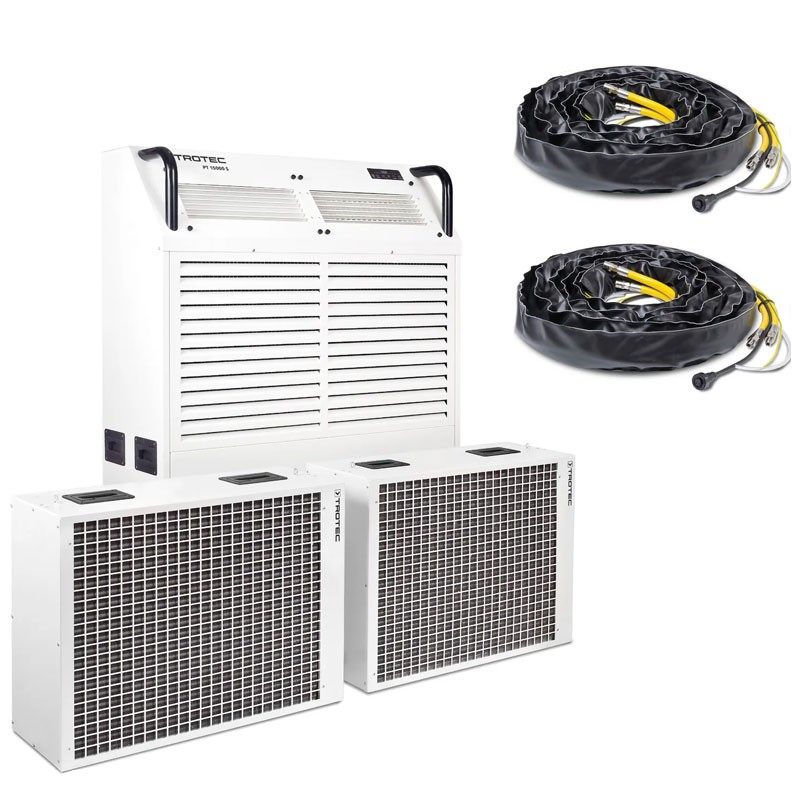

Trotec PT 15000 S - Mobile Commercial Air Conditioner with 2 Heat Exchangers

The Trotec PT 15000 S commercial air conditioner is designed to provide an efficient and reliable mobile cooling solution in professional settings . Thanks to its split configuration , this unit combines a robust structure with ease of transport, making it ideal for temporary cooling interventions in large spaces .

Installation is simplified by the use of quick-lock joints that allow immediate connection of external heat exchangers. The connection circuit uses a mixture of water and glycol, eliminating the risk of refrigerant leaks during connection or disconnection operations. In addition, the possibility of extending the connection distance up to 30 meters allows effective cooling even in remote or windowless environments.

Technical Specifications

The Trotec PT 15000 S offers a maximum cooling capacity of 16 kW (54,594 Btu/h ) and an air flow rate adjustable in three levels:

• 2,000 m³/h
• 2,400 m³/h
• 2,600 m³/h.

It is designed to reach ambient temperatures down to 10°C , depending on operating conditions.

The required power supply is 400 V at 50 Hz , with a power consumption of 6 kW and a nominal current of 9.5 A. The compressor uses R-410A refrigerant , with a quantity of 1,650 g and a GWP of 2,088. The noise level varies between 51 dB(A) and 65 dB(A), depending on the selected ventilation level.

Functional Specifications

The frame of the Trotec PT 15000 S mobile air conditioner is made of powder-coated galvanized steel , ensuring high resistance to weather and aggressive environments. The slim design and the swivel wheels with lock facilitate transport and maneuverability even in tight spaces.

This portable air conditioner can pass through standard doorways and enter elevators without difficulty. The microprocessor -controlled hot gas defrosting system ensures continuous operation without interruptions , while the powerful centrifugal fan guarantees efficient air circulation, allowing uniform cooling even in large rooms .

The air outlet grille is adjustable , allowing the cold air flow to be directed to specific needs. Additionally, the PT 15000 S can be used as a spot cooler with the optional insert available, offering a versatile solution for various cooling applications.

Extra fast connection

Thanks to the quick-connect water cooling circuit , installation becomes flexible and simple. The PT Series air conditioning systems are designed with two separate cooling circuits to ensure optimum efficiency. The cooling unit circuit is hermetically sealed , while a second circuit, which connects the cooling unit to the external heat exchanger, uses water with a reduced percentage of glycol as the cooling fluid. This system prevents any loss of refrigerant during installation or disconnection operations.

For quick and safe installation, the connection kits are equipped with high-quality quick couplings, allowing the exchanger to be positioned up to 30 meters away without difficulty. Thanks to this solution, the system is ideal for environments such as offices, server rooms, production rooms, distribution rooms and studios, where it is not possible to dissipate heat in the immediate vicinity.

Areas of Use

• Possible areas of application:
• gastronomy
• cultural sites
• establishments
• basements and cellars
• underground garages
• rental
• fairs
• and many more…

Characteristics

• Split air conditioner
• Cooling power at 25 °C: 15000 W / 51.182 Btu
• Maximum air flow: 2600 m³/h
• Fan levels: 3
• Power supply: 400V / 50Hz
• Maximum power consumption: 5.7 kW
• Power consumption: 9.5 A
• Refrigerant: R-410A
• Indoor unit noise level: 65 dB (A)
• Combined dimensions 41.5 x 106.5 x 150 cm
• Indoor unit weight 205 kg

Standard Equipment

• 1 x PT 15000 S Air Conditioner - code 1.210.001.075
• 2 x Heat Exchanger PT S+ - cod. 1.210.000.112
• 2 x Coated Connection Pipe Kit - cod. 1.210.000.133

Extra Accessories on Request

• PLANO PT - for connection under the door

The Trotec PT 15000 S comes with the PlanoPT included , a special connection system that can be conveniently installed under all conventional internal and external doors. The PlanoPT has no effect on the door closing, allowing you to keep external doors to event rooms closed, for example.

• DUALHEX JOINT - perfect for extreme ambient temperatures

Thanks to the DualHex coupling for the Duplex Cooling system, two heat exchangers can be connected in series on each connecting pipe. Thanks to this technique, this PT air conditioning system can also be used at temperatures of up to 45 °C – or at lower temperatures, the devices are prevented from operating at full load.
