Fiac AB 500/678
Compressor 5.5 HP
Tank 500 L

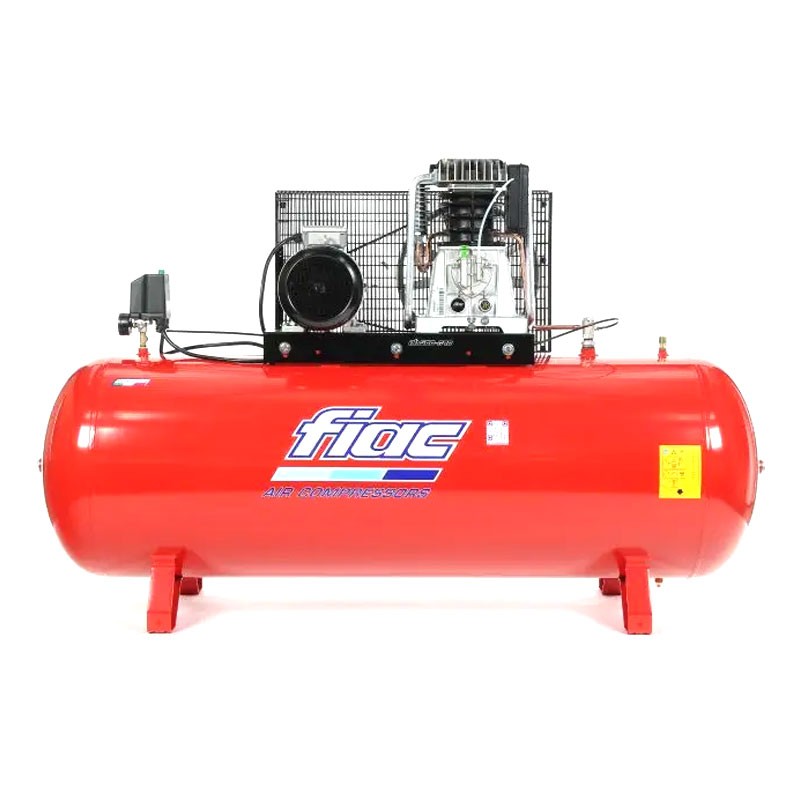

Fiac AB 500/678-5,5-TF Compressor 5,5 HP Tank 500 L

The 500 litre compressor from the Fiac AB 500/678 series is designed for professional use and has an operating pressure of 10 bar . This compressor can supply an air volume of 650 L/min and is equipped with a large 500 litre tank .
Fiac AB 500/678-5,5-TF has a two-stage motor with two cylinders and belt transmission , with oil lubrication . The power supply is three-phase 400 Volts.

Fiac is a leading Italian brand in the production of compressed air machines. The company is certified according to the latest EU regulations, ensuring reliable professional quality.

Functional specifications

Piston compressor

This piston compressor with belt drive is oil lubricated and ideal for professional use . The Fiac AB 500 F compressor is a two-stage compressor , equipped with 2 pistons that compress the air with 2 pressure jumps, to obtain a lower air temperature. With cooling pipes , cast iron cylinder , pressure switch and overload protection , double pressure gauge , metal bearing cover and large oil sight glass . Vibrations and reduced noise impact.

Epoxy powder coating

Perfectly maintained over time.

Characteristics

• 400V three-phase compressor with belt drive
• 2-cylinder two-stage engine
• Max pressure 10 bar
• Capacity 500 L
• Power 5.5 HP
• Engine speed 1000 RPM
• Flow rate 650 L/min
• Noise level 74 dB
