Fiac AB 100/348
3 HP Single Phase Compressor
90 L Tank

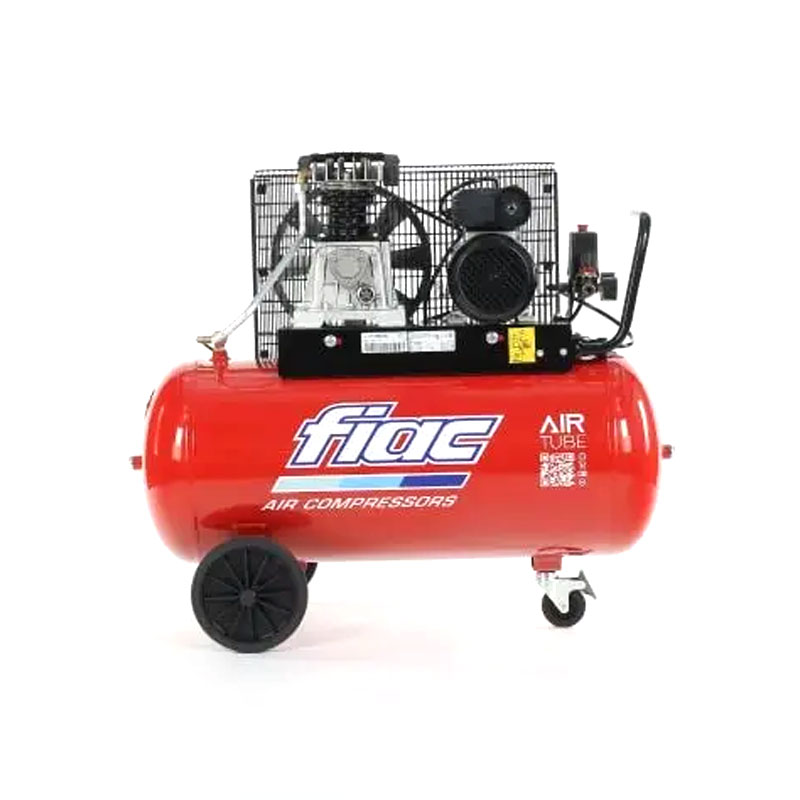

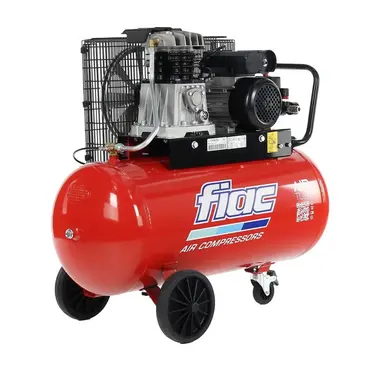

Fiac AB 100/348-3-MC - Compressor 3 HP Tank 90 L MADE IN ITALY

The Fiac AB 100/348 compressor is a compressor with a 90 litre tank ideal for professional use . This compressor has a power of 3 HP (2.2 kW) and is single-stage lubricated . Mounted on an AB348 pumping unit, it has a double cast iron cylinder capable of ensuring high performance at low rotation speed, thus preventing engine overheating and significantly extending the life of the compressor.

With 3 HP power they have maximum operating pressure 10 bar and are equipped with practical transport wheels and a handle . These Fiac AB compressors are also perfectly suited for use in painting and for inflating tyres and with nail guns.

Professional Compressors Made in Italy

Technical Specifications

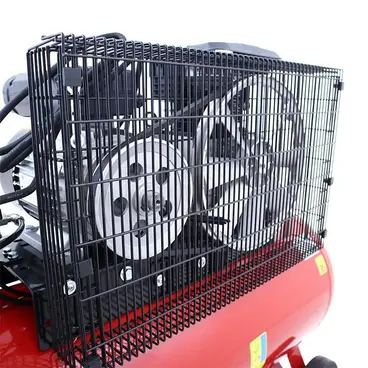

The 90L Fiac single-phase compressor from the Fiac AB 100 line is equipped with a large oil level indicator , dipstick and a large flywheel for better cooling . The belt guard is made of metal to ensure better protection, even during transport.

The Fiac AB 100/348-3 compressor has a single-stage belt drive and an air flow rate of 300 L/min with maximum pressure of 10 bar. With power of 3 HP - 2.2 kW, Fiac AB 100-348 works at 1500 RPM and is equipped with an AB 348 pumping unit, making it ideal for professional use .

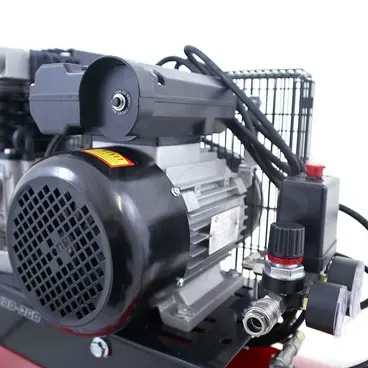

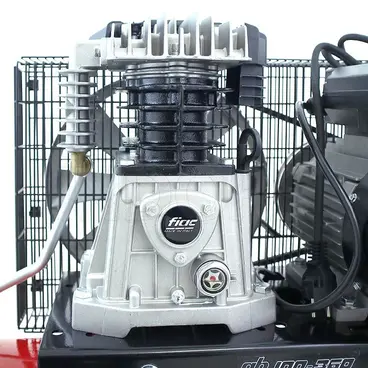

Mechanically flawless, the pumping unit is a robust and highly reliable Italian-made unit with a low rotation speed and belt drive . The engine used is a professional induction engine built to a high standard to support the high peaks required during the start-up phase.

Characteristics

• Single phase compressor 230V
• Single stage 2 cylinder engine
• Max pressure 10 bar
• Capacity 90 L
• Power 3 HP
• Engine speed 1500 RPM
• Flow rate 300 L/min
• Noise level 74 dB
