Abac Tech Industrial ATF-TM
Compressore 10 bar 2/3 HP
90L Oilless No Stop

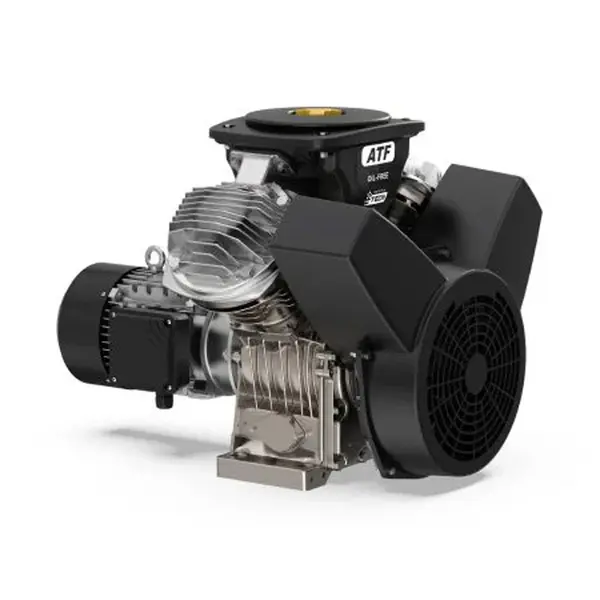

Abac Tech Industrial ATF-TM - Single-phase/Three-phase 10 bar oil-less compressor

100% Duty Cycle

The Abac Tech ATF-TM 10 bar pumping unit for industrial use is designed to operate continuously, even in extreme conditions. With a 100% duty cycle , it delivers continuous air, ensuring reliability and a long life, minimizing downtime since it requires no cooling.

The robust design of this single-stage oil-free pump unit up to 10 bar ensures premium performance and remarkable efficiency.

Designed to generate high quality air, this pump unit maintains the lowest operating temperatures and minimal oil transfer, thus ensuring low operating costs and energy savings , making it a reliable choice for demanding industrial environments .

This Abac Tech ATL-TM 10 bar piston pump unit works up to 2000 h continuously.

Available models

Single-phase models can be selected from the drop-down menu:

• ATF 2 10 90 230/1/50 CE
• ATF 3 10 90 230/1/50 CE

Three-phase models can be selected from the drop-down menu:

• ATF 2 10 90 400/3/50 CE
• ATF 3 10 90 400/3/50 CE

Functional specifications of the ATL-TM 90 L compressor

Oil-less compressor 90 L 10 bar

This Abac Tech ATF-TM non-lubricated compressor with a TM 186 motor that delivers a power of 1.5÷3 kW . With a capacity of 90 L and a maximum pressure of 10 bar , it is ideal for applications requiring continuous and reliable operation. This compressor is 230/400 V and has a speed of 1400 rpm.

Fixed configuration

The Abac Tech ATF-TM has a fixed configuration and, thanks to its continuous operating cycle, is capable of being an effective tool for industrial use . This compressor operates at low noise.

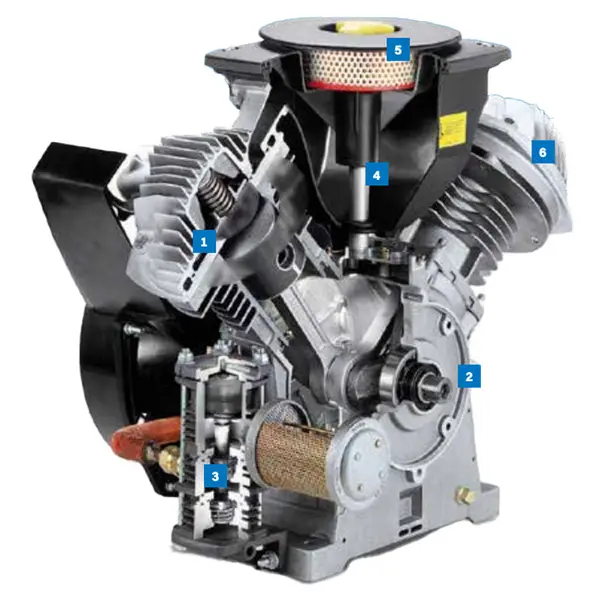

Pump unit specifications

1. Stainless steel disc valve and cylinders with low tolerance finish
2. Sealed-for-life crankshaft ball bearings
3. Industrial quick exhaust valve
4. Oil separator on the roof ventilation line
5. Air filter with large filtration surface
6. Die-cast aluminum crankcase and finned cylinder heads

Technical Specifications

The Abac Tech pump unit's stainless steel disc valve design and low-tolerance cylinders ensure minimal clearance, reduced friction, and increased air output. The sealed-for-life crankshaft ball bearings are designed for heavy-duty use, offering reliability and a long operating life.

The industrial quick exhaust valve is designed to withstand extreme conditions, reducing starting torque for longer motor life and lower energy consumption. This lubricated pump unit delivers clean, contamination-free air, ensuring the highest quality for sensitive applications and reducing maintenance and operating costs.

Equipped with a highly efficient air filter with a large filtration surface, it ensures optimal air purification. The die-cast aluminum crankcase and finned cylinder heads with excellent cooling characteristics contribute to a long life and efficient operation of the pump unit. Nickel-plated aluminum cylinders and Teflon-coated pistons ensure long life and minimize friction.

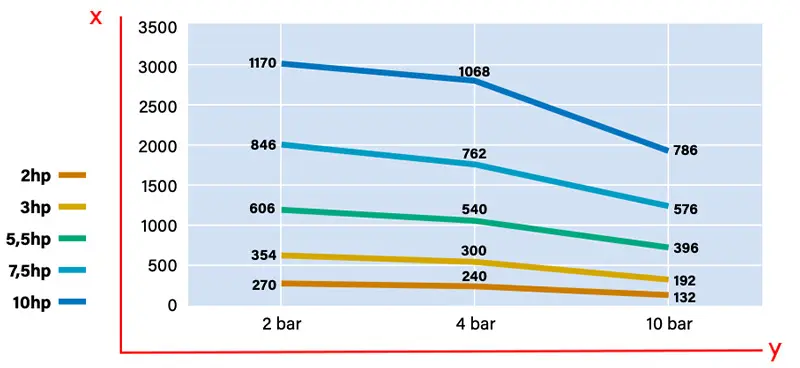

Air Delivery / ATF

The diagram shows the data relating to the air volume delivered in L/min (X axis) and the pressure (Y axis).

Functional specifications: continuous operation

Abac Tech is a range of pumping units and compressors designed to optimise compressor operating times , limiting downtime.

In particular, Abac Tech compressors operate in a continuous cycle , where continuous cycle refers to the time interval in which the compressor delivers pressurized air in relation to the total operating cycle.

Abac Tech continuous cycle compressors constantly power machinery and tools without downtime and are reliable allies of production companies, managing to optimise working time/maintenance costs .

For example, while a continuous cycle compressor continues to work, a compressor operating at 50% requires the same number of minutes of downtime for every 30 minutes of operation.

Duty Cycle 100%

The following diagram shows the data relating to the compression temperature (X-axis) and the operating temperature (Y-axis), setting the maximum design temperature as the limit value.

Areas of Application

• Professional and industrial construction
• Industrial production
• Professional and industrial agriculture
• Professional and industrial railway
• Professional and industrial automotive sector
• Industrial dry cleaning
• Professional carpentry
• Professional and industrial pressure washing
• Industrial pharmaceuticals
• Industrial energy exploration
• CAD/CAM for the medical segment
• Professional and industrial sandblasting

Characteristics

• Oil-free pumping group
• Single-phase 230V / Three-phase 400V operation
• 100% duty cycle
• Direct transmission
• Pressure up to 10 bar
• Revolutions per minute 1400 rpm
• Not lubricated
• Fixed configuration
• Robust and durable design
• Ideal for industrial use
