Abac Tech ATL-TM
Single-Phase Compressor 2/3 HP
90L Lubricated Non-Stop

Abac ATL-TM - Single-phase compressor 10 bar from 2 to 3 HP Tech Industrial line Lubricated

100% Duty Cycle

The ATL-TM compressor from Abac Tech Industrial is a single-stage lubricated compressor for a wide range of industrial applications . Designed for efficiency and long-lasting durability, this Abac compressor is available in several tank-mounted versions, offering optimal performance based on specific needs.

The Abac ATL-TM compressor can be used in a wide range of applications thanks to the 90 L tank -mounted version.

This single-phase piston compressor has a rotation speed of 1400 rpm and power from 2 to 3 HP , depending on the model chosen. The maximum pressure is 10 bar .

Available Models

The Abac Tech ATL-TM low pressure pumping unit is available in two variants, selectable from the drop-down menu:

• ATL 2 90 10 230/1/50 CE - cod. 4116001432 - 10 bar, 2 HP, 204 L/m
• ATL 3 90 10 230/1/50 CE - cod. 4116001434 - 10 bar, 3 HP, 264 L/m

Functional specifications

90 L lubricated single-phase compressor

The Abac ATL 2 90 10 230/1/50 compressor has a power of 2÷3 horsepower (1.5÷2.2 kW) and a speed of 1,400 rpm . This 10 bar Abac compressor is designed for use in environments requiring a standard single-phase voltage of 230 V/50 Hz. The Abac Tech ATL has a 90 L tank and offers an air flow rate of 204÷264 L/min .

Fixed configuration

This Abac Tech ATL compressor has a fixed configuration and robust structure for stable support during operation.

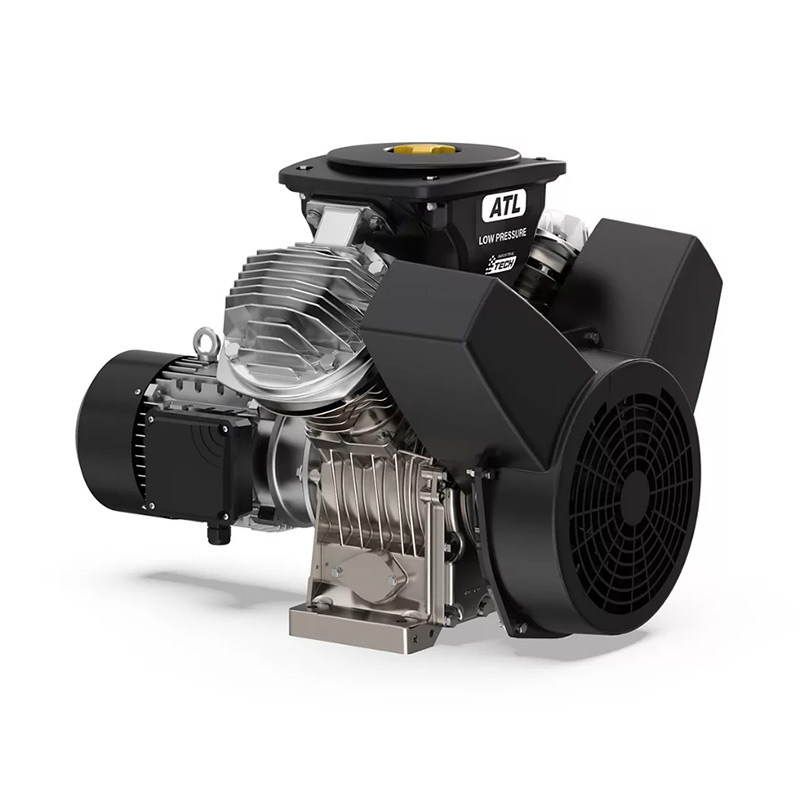

ATL pumping unit details

1. Stainless steel disc valve and cylinders with low tolerance finish
2. Sealed-for-life crankshaft ball bearings
3. Industrial quick exhaust valve
4. Oil separator on the roof ventilation line
5. Air filter with large filtration surface
6. Die-cast aluminum crankcase and finned cylinder heads

Technical Specifications

The Abac Tech pump unit's stainless steel disc valve design and low-tolerance cylinders ensure extremely low clearance, minimal friction, and increased air output. The sealed-for-life crankshaft ball bearings are designed for heavy duty use, ensuring reliability and a long operating life.

The industrial quick exhaust valve is designed to withstand extreme conditions, reducing starting torque for longer engine life and lower energy consumption. This pump unit features an oil separator on the shroud vent line , reducing oil consumption and improving operating efficiency.

Equipped with a highly efficient air filter with a large filtration surface, which ensures optimal air purification. The die-cast aluminum crankcase and finned cylinder heads with excellent cooling characteristics contribute to a long life and efficient operation of the pump unit.

Air Supply / ATL

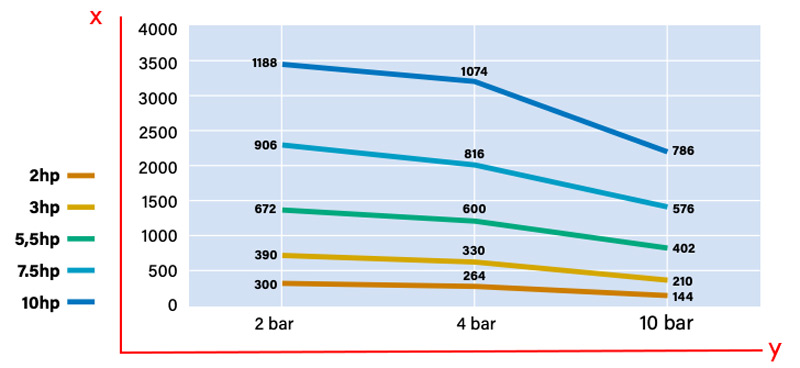

The diagram shows the data relating to the air volume delivered in L/min (X axis) and the pressure (Y axis).

Functional specifications: continuous operation

Abac Tech is a range of pumping units and compressors designed to optimise compressor operating times , limiting downtime.

In particular, Abac Tech compressors operate in a continuous cycle , where continuous cycle refers to the time interval in which the compressor delivers pressurized air in relation to the total operating cycle.

Abac Tech continuous cycle compressors constantly power machinery and tools without downtime and are reliable allies of production companies, managing to optimise working time/maintenance costs .

For example, while a continuous cycle compressor continues to work, a compressor operating at 50% requires the same number of minutes of downtime for every 30 minutes of operation.

Duty Cycle 100%

The following diagram shows the data relating to the compression temperature (X-axis) and the operating temperature (Y-axis), setting the maximum design temperature as the limit value.

Areas of Application

• Professional and industrial construction
• Industrial production
• Professional and industrial agriculture
• Professional and industrial railway
• Professional and industrial automotive sector
• Industrial dry cleaning
• Professional carpentry
• Professional and industrial pressure washing
• Industrial pharmaceuticals
• Industrial energy exploration
• CAD/CAM for the medical segment
• Professional and industrial sandblasting

Characteristics

• Compressor with lubricated pump unit
• Single-phase 230V
• 100% duty cycle
• Direct transmission
• Pressure up to 10 bar
• Revolutions per minute 1400 rpm
• 90 L tank
• Pressure 10 bar
• Robust and durable design
• Premium performance
