Abac EXP A39B-0 200 CM3
Single-Phase Oil-Free Air Compressor 3 HP
MPN: 4116028564
230V - 3 HP
10 bar - 393 L/min
200 L tank
Warranty 2 years
Shipped on Pallet

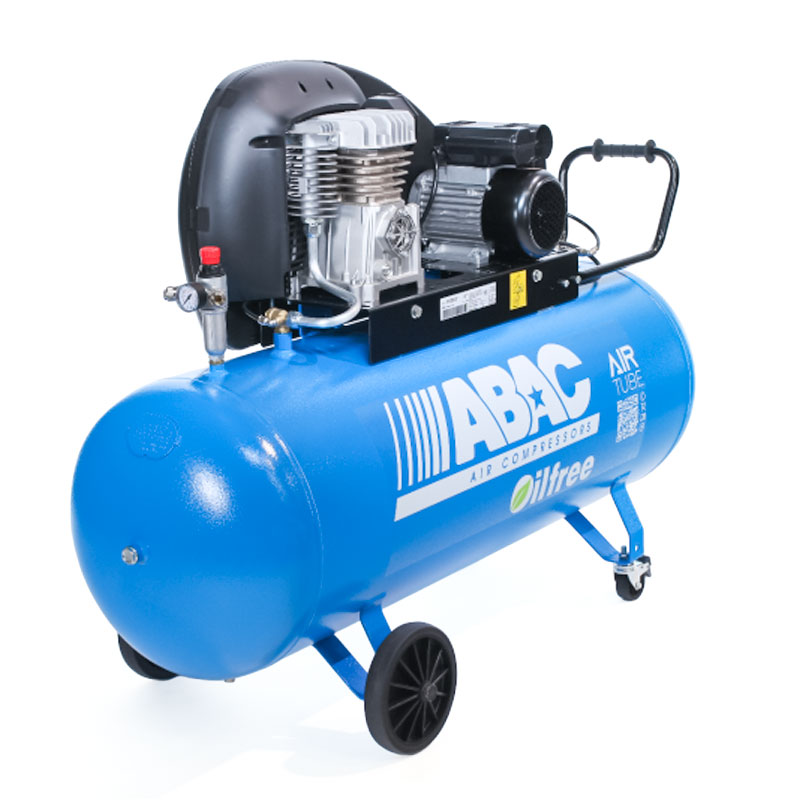

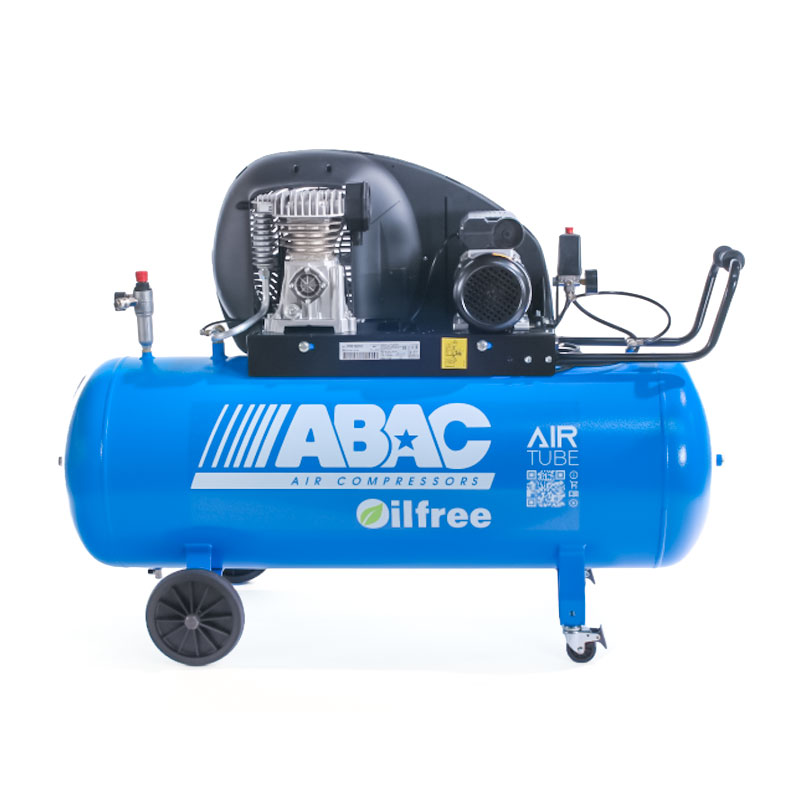

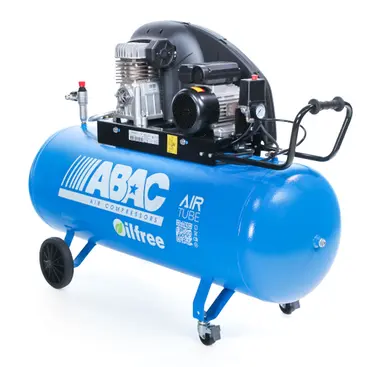

Abac EXPert A39B-0 200 CM3 - Single-Phase Oil-Free Air Compressor 3 HP with 200 L Tank
The compressors in the Abac EXpert line integrate modern technological solutions designed to meet the demanding needs of various production environments. These are robust and reliable air compressors , designed to support professionals in their daily work.
The presence of two front swivel wheels increases stability, while the new ergonomic handle allows for faster and more controlled movement. Furthermore, the outlet filter helps preserve the integrity of tools, even the most delicate or valuable ones.
This Abac EXP A39B-0 200 CM3 model has a 200 L tank with an air flow rate of 393 L/min. Single-phase motor with 3 HP (2.2 kW) power . Maximum pressure 10 bar .
Image from Catalog
Functional specifications
Stable and Easily Transportable
With a sturdy structure supported by 4 wheels , 2 of which are swivel and have a brake at the front and 2 of which are 200 mm at the rear, this professional 10 bar compressor is easy to move, thanks to the presence of a full handle with a rubber grip designed for a firm, comfortable and ergonomic grip.
Energy Efficiency and Safety
This compressor is equipped with an optimised control system to reduce consumption. It also features safety valves and thermal protections for safe operation.
Noise
The sound power level is 96 dB / 76 LPA.
Functional Specifications
Abac EXpert A39B-0 200 CM3 is equipped with a single-phase motor with 3 HP (2.2 kW) power and has a maximum air flow rate of 393 L/min at 10 bar max .
With a 200 L tank , this ABAC single-phase piston compressor is equipped with a Schuko socket with single outlet + filter.
Characteristics
- Single-phase compressor
- 200 L horizontal tank
- Power 3 HP - 2.2 kW
- Pressure 10 bar
- Low rpm 1050 rpm
- Easy to carry
Technical Data
| Power Supply | 230V |
| Power Absorbed | 2.2 kW |
| Engine RPM | 1050 rpm |
| Engine Power | 3 HP |
| Reservoir | 200 L |
| Noise | 96 dB |
| Suction Capacity | 393 L/min |
| Max Pressure | 10 Bar |
| Size | 146 x 46 x 112h cm |
| Weight | 115 kg |
Technical Data
| Power Supply | 230V |
| Power Absorbed | 2.2 kW |
| Engine RPM | 1050 rpm |
| Engine Power | 3 HP |
| Reservoir | 200 L |
| Noise | 96 dB |
| Suction Capacity | 393 L/min |
| Max Pressure | 10 Bar |
| Size | 146 x 46 x 112h cm |
| Weight | 115 kg |
