KTC Compack 3 90 LE
Screw Compressor
with Dryer 380 L/min

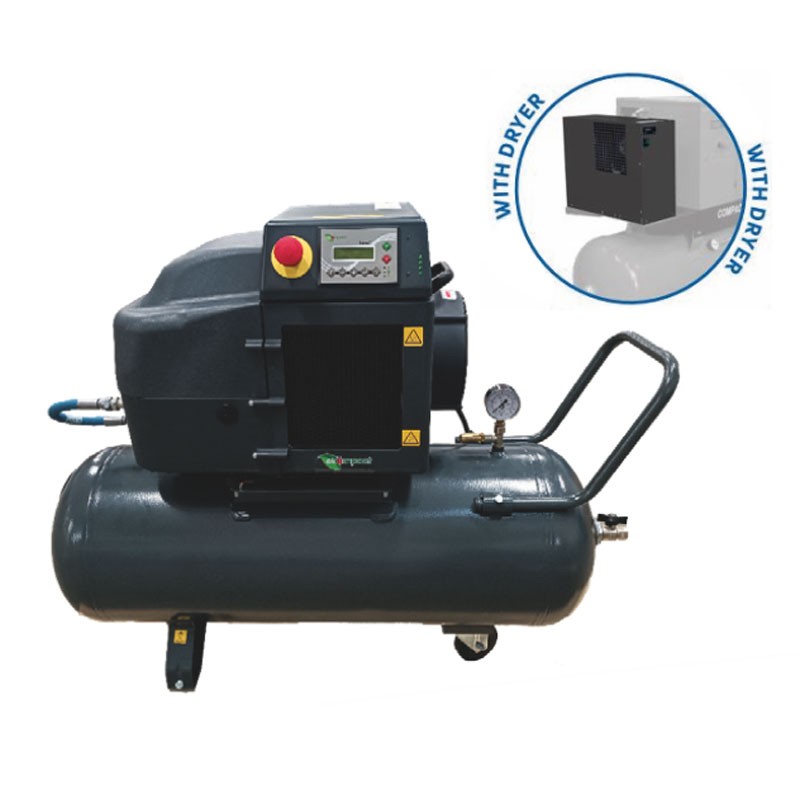

KTC Compack 3 90 L + E - Professional Screw Compressor 380 L/min with Dryer

The KTC Compack 3 90 L + E screw compressor with dryer is designed to offer industrial performance in a compact format, ideal for artisanal, semi-professional and technical applications. Thanks to the integration of advanced technologies such as the Adam V60 VMC airend , the K-Tronic electronic control and the anti-condensation system , it guarantees a constant, reliable and highly efficient air supply. The machine represents a modern and more efficient alternative to piston compressors in the same capacity range.

All KTC compressors are entirely designed and built in Italy , with high quality components and Made in Italy workmanship.

Technical specifications

KTC Compack 3 is powered by a 4 kW (5.4 HP) three-phase motor that drives an Adam V60 screw , capable of generating an air flow of 380 L/min at a maximum pressure of 10 bar . It is equipped with a 90 L tank and a 1/2” Gas connection . The noise level stands at 65 dB(A) , making it suitable even in contexts where low acoustic impact is required.

The compact airend integrates the main components in an aluminum body with a steel core , offering durability and maximum space efficiency. The cooling circuit maintains the optimal operating temperature, even in intermittent use conditions.

Functional specifications

K-Tronic electronic control

The integrated K-Tronic system allows automatic control of the compressor loading and unloading cycles, adapting operation to the actual air demand. This reduces energy consumption , optimizes performance and protects the airend from unnecessary stress, ensuring greater durability and lower operating costs.

Integrated anti-condensation system

Thanks to the built-in heater , the Compack 3 is able to prevent condensation from forming inside the system, even in case of non-continuous use or in humid environments. This ensures more stable operation and reduces the risk of corrosion and premature failure, increasing operational reliability .

Immediate and constant air supply

The compressor supplies compressed air continuously and immediately , without the need for large storage tanks. This is made possible by the high efficiency of the screw unit and the intelligent management of the operating cycle. Ideal for uses that require continuity and promptness in the availability of air.

Structural compactness

The compact design of the KTC Compack 3 allows installation even in tight spaces , maintaining accessibility to internal components for quick maintenance. Everything is integrated into a solid and well-engineered machine body, which maximizes performance while reducing footprint.

Operational silence

With a noise level of just 65 dB(A), the Compack 3 stands out for its silent operation , which is particularly advantageous in closed environments or where you work close to the machine. The acoustic insulation and construction quality make it an ideal compressor for contexts where comfort is essential.

Simple and economical maintenance

The accessibility of the components and the rational structure allow rapid maintenance interventions , reducing downtime and operating costs. Each element is designed to be replaced or inspected with ease, making Compack a convenient choice also in the long term.

Integrated high efficiency dryer

The integrated dryer removes humidity from the compressed air, lowering the dew point and ensuring dry air ready for use. Compact and synergic with the anti-condensation system, it protects systems and tools from corrosion and failures, without increasing the footprint of the machine.

Why choose a screw compressor

High performance

Screw compressors, such as the Compack 3 90 L + E from KTC, offer continuous air production without the interruptions typical of piston models. The volumetric efficiency of the airend reduces idle cycles and increases productivity.

Excellent air quality

The screw system ensures a stable, pulsation-free airflow , ideal for tools that require constant pressure . This improves precision and reduces the risk of malfunctions.

Great Reliability

The reduction of mechanical stress, the quality of the Vanguard engine and the construction simplicity of the airend ensure long operating life , reduced maintenance and maximum machine availability even in critical conditions.

Characteristics

• Professional screw compressor
• Three-phase power supply
• Power 5.4 HP - 4 kW
• Working pressure 10 bar
• 90 L air tank with 380 L/min flow rate
• Adam V60 screw group
• With dryer
• High technical quality Made in Italy
