KTC Compack 2
PORTABLE SCREW COMPRESSOR

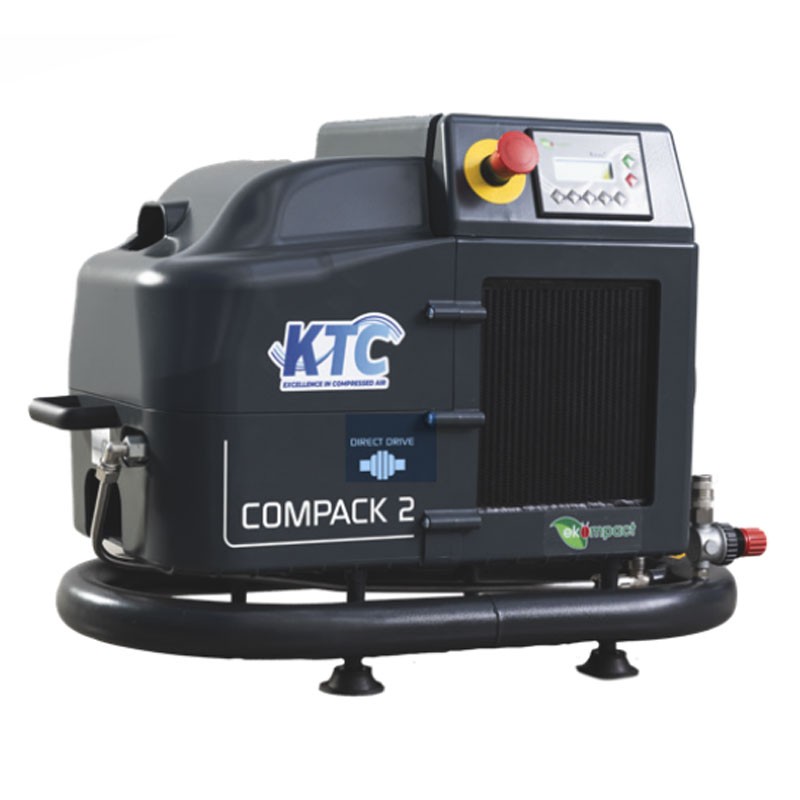

KTC Compack 2 Ground - Compact Professional Screw Compressor with air flow rate from 270 to 300 L/min

The KTC Compack 2 Floor-standing screw compressor is designed to offer industrial performance in a compact format, ideal for artisanal, semi-professional and technical applications. Thanks to the integration of advanced technologies such as the VMC Adam 60/E V60 airend , the K-Tronic electronic control and the anti-condensation system , it guarantees a constant, reliable and highly efficient air supply. The machine represents a modern and more efficient alternative to piston compressors in the same capacity range.

All KTC compressors are entirely designed and built in Italy , with high quality components and Made in Italy workmanship.

Available models

• Compack 2 Ground Single Phase cod. 1850120507 - 230V, 2.7 kW 3.6 HP, 270 L/min
• Compack 2 Ground Three-Phase cod. 1850223507 - 400V, 3 kW 4.1 HP, 300 L/min

Technical specifications

KTC Compack 2 is powered by a 2.7 kW (3 HP) single-phase motor or a 3 kW (4.1 HP) three-phase motor that drives an Adam 60/E V60 screw , capable of generating an air flow rate of 270 L/min , 300 L/min in the three-phase version, at a maximum pressure of 10 bar . It is equipped with a 2.5 L tank and a quick coupling . The noise level stands at 65 dB(A) , making it suitable even in contexts where low acoustic impact is required.

The compact airend integrates the main components in an aluminum body with a steel core , offering durability and maximum space efficiency. The cooling circuit maintains the optimal operating temperature, even in intermittent use conditions.

Functional specifications

K-Tronic electronic control

The integrated K-Tronic system allows automatic control of the compressor loading and unloading cycles, adapting operation to the actual air demand. This reduces energy consumption , optimizes performance and protects the airend from unnecessary stress, ensuring greater durability and lower operating costs.

Integrated anti-condensation system

Thanks to the built-in heater , the Compack 2 is able to prevent condensation from forming inside the system, even in case of non-continuous use or in humid environments. This ensures more stable operation and reduces the risk of corrosion and premature failure, increasing operational reliability .

Immediate and constant air supply

The compressor supplies compressed air continuously and immediately , without the need for large storage tanks. This is made possible by the high efficiency of the screw unit and the intelligent management of the operating cycle. Ideal for uses that require continuity and promptness in the availability of air.

Structural compactness

The compact design of the KTC Compack 2 allows installation even in tight spaces , maintaining accessibility to internal components for quick maintenance. Everything is integrated into a solid and well-engineered machine body, which maximizes performance while reducing footprint.

Operational silence

With a noise level of just 65 dB(A), the Compack 2 stands out for its silent operation , which is particularly advantageous in closed environments or where you work close to the machine. The acoustic insulation and construction quality make it an ideal compressor for contexts where comfort is essential.

Simple and economical maintenance

The accessibility of the components and the rational structure allow rapid maintenance interventions , reducing downtime and operating costs. Each element is designed to be replaced or inspected with ease, making Compack a convenient choice also in the long term.

Why choose a screw compressor

High performance

Screw compressors, such as KTC’s Compack 2 Terra, offer continuous air production without the interruptions typical of piston models. The volumetric efficiency of the airend reduces idle cycles and increases productivity.

Excellent air quality

The screw system ensures a stable, pulsation-free airflow , ideal for tools that require constant pressure . This improves precision and reduces the risk of malfunctions.

Great Reliability

The reduction of mechanical stress, the quality of the Vanguard engine and the construction simplicity of the airend ensure long operating life , reduced maintenance and maximum machine availability even in critical conditions.

Characteristics

• Professional screw compressor
• Single-phase or three-phase power supply
• Power from 3 HP - 2.7 kW to 4.1 HP - 3 kW
• Working pressure 10 bar
• 2.5 L air tank with flow rate from 270 to 300 L/min
• Adam V60 screw group
• High technical quality Made in Italy
