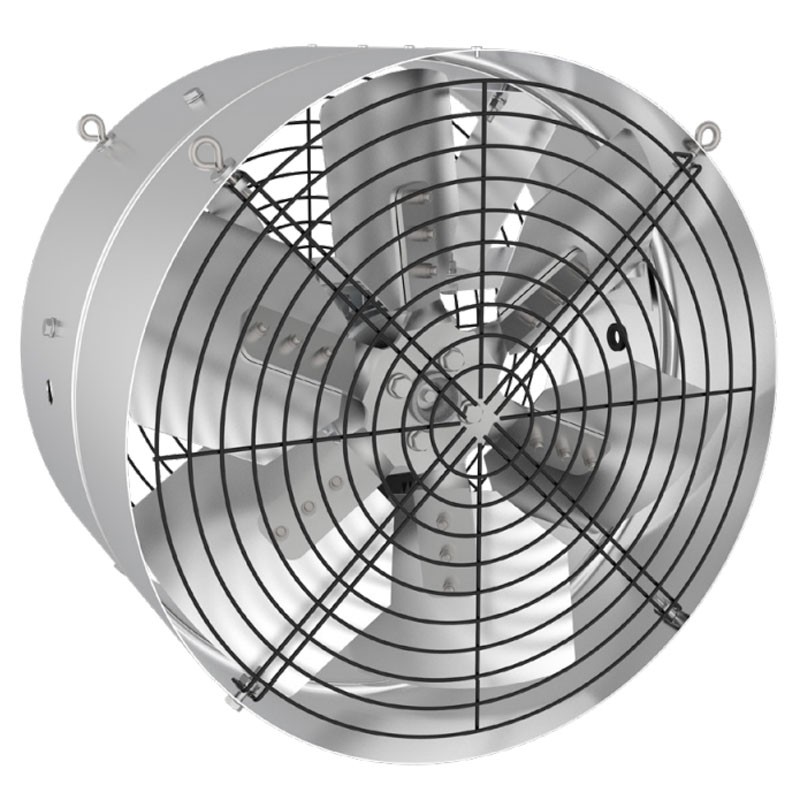

Munters EDC GHp 18'' 24''
Air Circulator
with Shutter

Munters EDC GHp 18'' 24'' - Industrial and Agricultural Shutter Air Circulator 0.5 HP

Munters EDC GHp is an industrial fan designed to ensure efficient air circulation in greenhouses and livestock environments. Compact, silent and highly resistant to corrosion, it ensures homogeneous distribution of temperature and humidity improving agricultural productivity and animal welfare.

This air circulator is equipped with a damper to ensure maximum safety during operation and prevent the entry of foreign objects.

Available models

• EDC18GHp 0.5 HP fan 45 cm - cod. 2606501EU
• EDC24GHp 0.5 HP fan 60 cm - cod. 2609105EU

Technical specifications

The EDC18GHp model has a 450 mm propeller and a 0.5 HP motor with a nominal speed of 1400 RPM , generating an air flow of 5,260 m³/h and consuming up to 620 W. The EDC24GHp model has a 600 mm propeller, with rotation at 900 RPM and an air flow of 7,800 m³/h , for a maximum consumption of 500 W. Both models are built in steel protected with Munters Protect coating , guaranteeing durability in aggressive environments.

Dimensions

Functional specifications

Anti-stratification ventilation

The powerful and directional airflow breaks down thermal stratification, equalizing temperature and humidity across the entire usable surface, with tangible benefits on growth and productivity.

Compact design and minimal shading

The reduced structure minimizes the impact on sunlight penetration into the greenhouses, promoting photosynthesis and crop development.

High energy efficiency

Optimized engines reduce fuel consumption while maintaining high performance, resulting in significant reductions in operating costs on a seasonal basis.

Quick installation and minimal maintenance

The system is designed for quick and easy assembly . The self-cleaning blades limit dirt accumulation, reducing downtime.

Operational silence

With low noise levels ( 69.2 dB(A) for EDC18, 65.7 dB(A) for EDC24), the fan works without disturbing animals or operators, improving environmental comfort .

Galvanized steel shutter

The galvanized steel shutter guarantees maximum resistance and hermetic seal, avoiding any air dispersion. The patented centrifugal system ensures a stable opening, without the need for maintenance. UV-resistant materials , a high-efficiency motor and an anti-vibration grille complete an extractor designed to last and consume less.

Munters Protect Anti-Corrosion Fans

In agricultural environments, high humidity, acidic pH and aggressive chemicals accelerate metal corrosion. To meet these challenges, Munters has developed Munters Protect , an innovative material for fan blades that is more resistant to corrosion than AISI 430 stainless steel and pre-painted metal. The result of advanced manufacturing processes, it offers greater durability , reliability and performance in the most demanding conditions. The following images show the comparison after 700 hours of salt spray exposure : the SS 430 stainless steel blades (left) show obvious signs of wear, while the Munters Protect blades (right) maintain a healthy and resistant appearance .

Air flow

Characteristics

• Industrial and agricultural air circulator
• 400V three-phase power supply
• Engine power 0.5 HP
• Available with AC motor
• Fan diameter 45 or 60 cm (18” or 24'')
• Self-cleaning 6-blade propeller in treated steel
• Noise level between 65.7 and 69.2 dB(A)
• Anti-corrosion structure with Munters Protect treatment
• Automatic shutters with centrifugal opening and hermetic closing
