ABAC PAT 24A
A29B Pumping Unit
2 to 3 HP

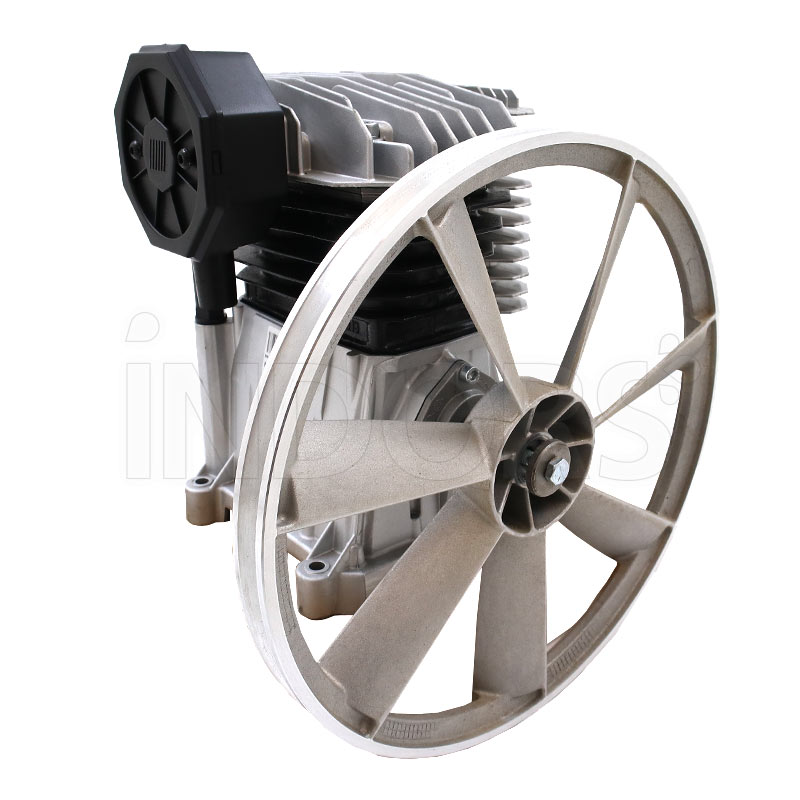

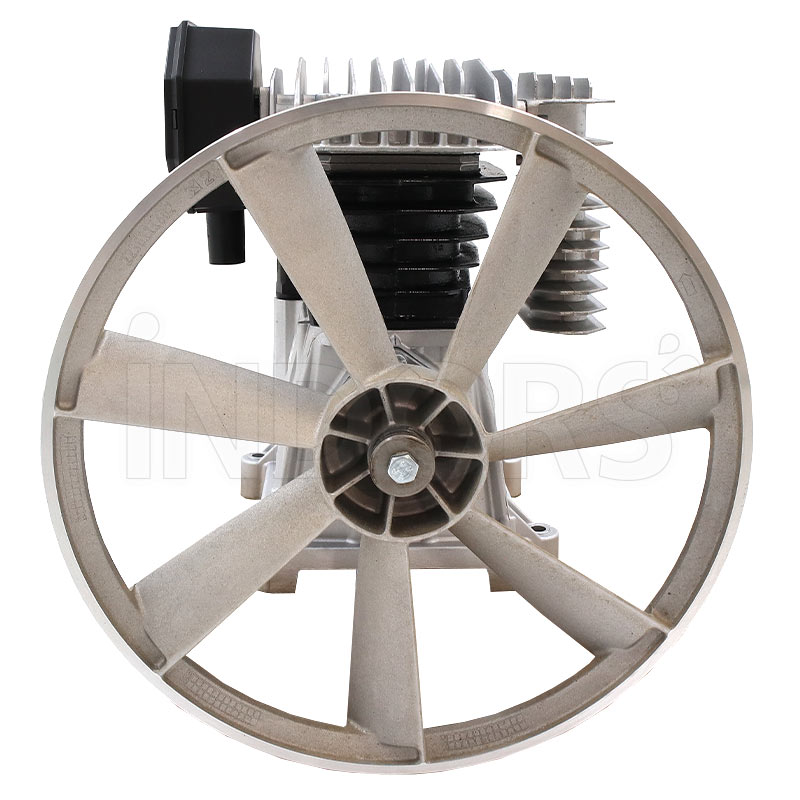

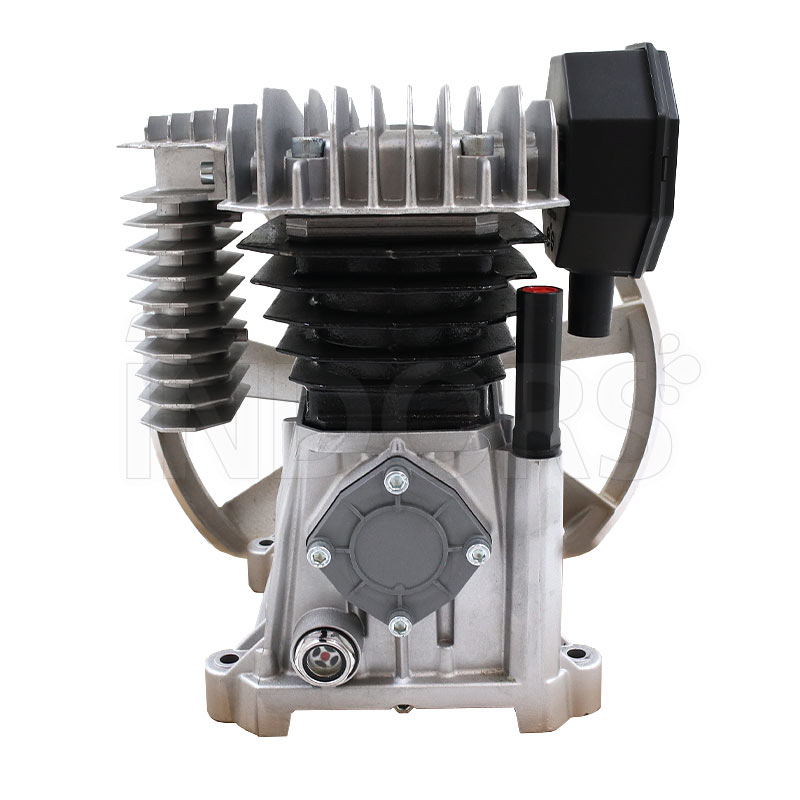

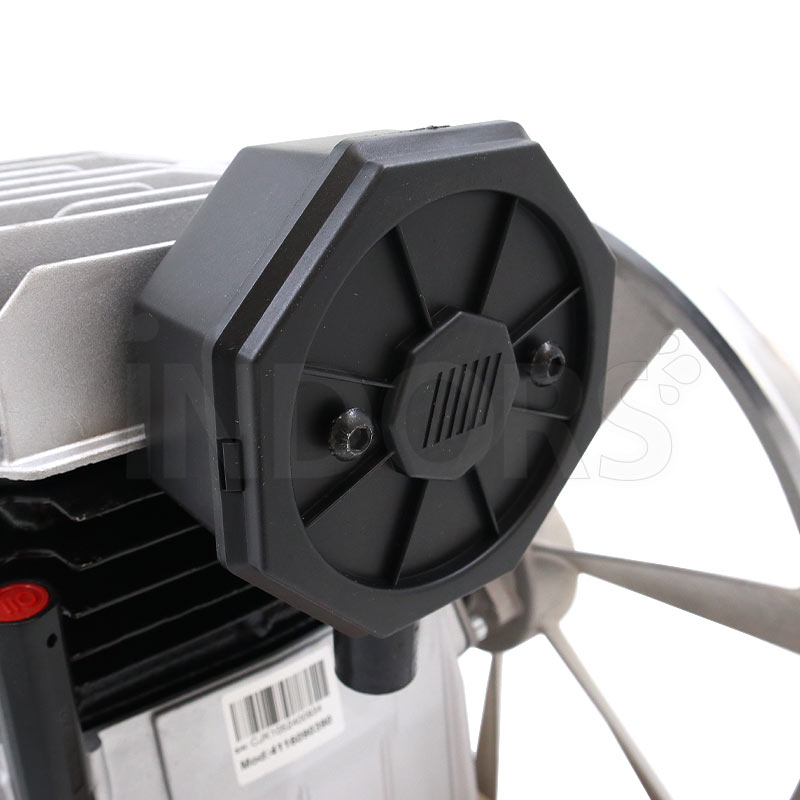

ABAC PAT 24A (A29B) - Professional Pumping Unit from 2 to 3 HP

The ABAC PAT 24A Pumping Unit is a professional pump head for 2 to 3 HP air compressors , ideal for industrial and commercial applications. Designed for reliability and high performance, this pumping unit offers an optimal balance between air flow and durability, ensuring stable operation even under continuous use.

TECHNICAL SPECIFICATIONS

Designed to operate at speeds between 1075 and 1300 RPM , the PAT 24A pumping unit guarantees an air flow rate between 255 and 320 L/min and a maximum operating pressure of up to 10 bar . Made of wear-resistant materials and equipped with an integrated air cooling system, it ensures effective heat dissipation to maintain high performance even under prolonged loads.

FUNCTIONAL SPECIFICATIONS

Air cooling for professional compressors

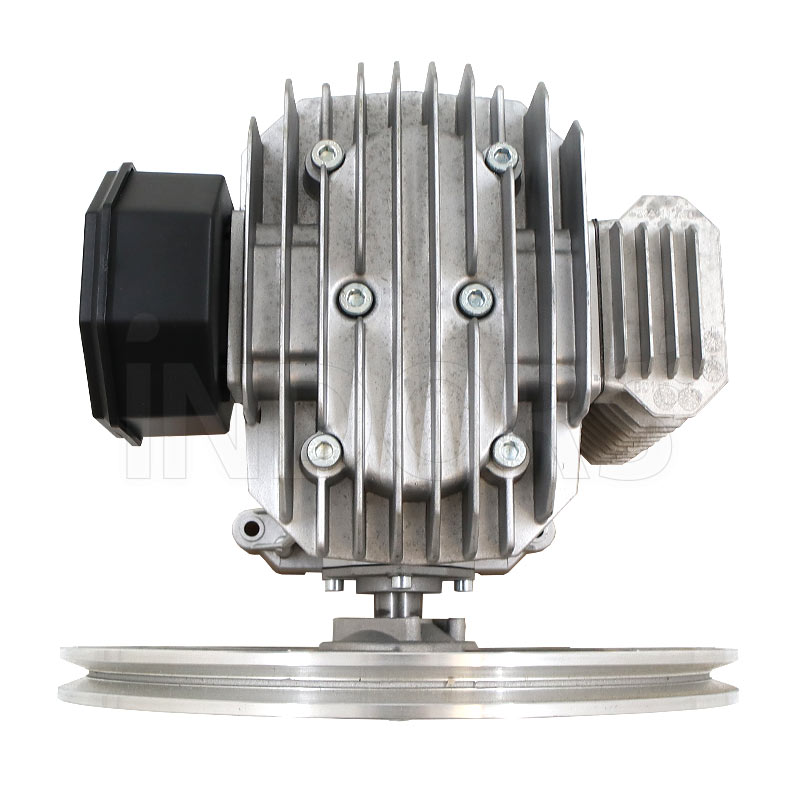

The air cooling system with integrated fins ensures optimal heat dissipation, protecting the pump unit from excessive overheating during intensive use.

Forced lubrication for durability and reliability

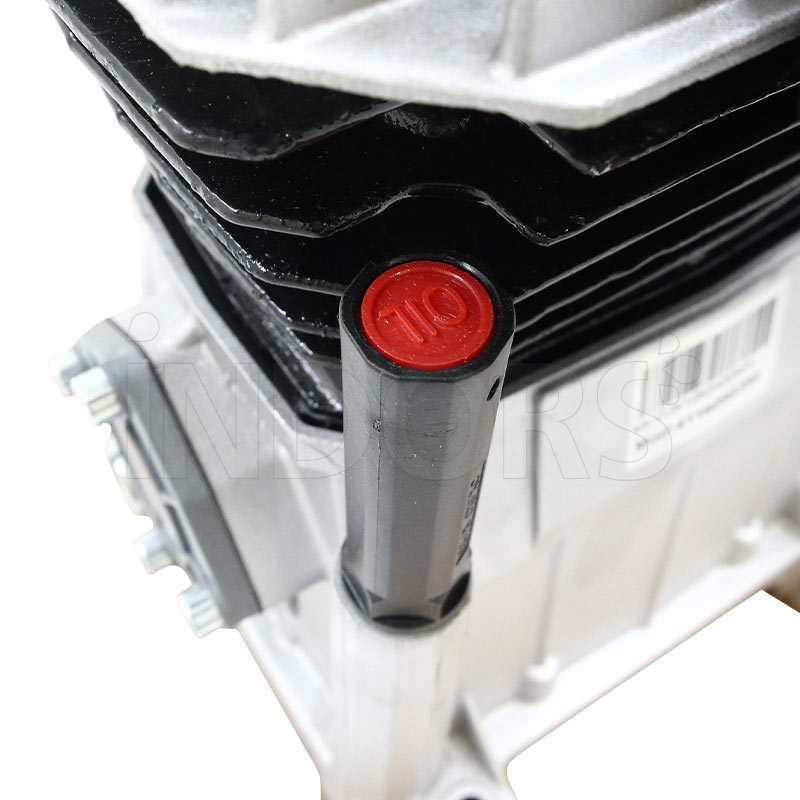

Forced lubrication with ALTAIR PRO oil ensures constant protection of the mechanical components, minimizing wear and extending the operating life of the pumping unit.

Valve system optimized for volumetric efficiency

The unit is equipped with a valve system designed to optimize the intake and delivery air flow, improving the volumetric efficiency and overall performance of the compressor.

Compatibility

The following table shows the performance of the pumping unit in relation to compatible motors, highlighting the operating parameters for each power.

Characteristics

• For 2 and 3 HP compressors
• Maximum pressure 10 bar
• Engine speed from 1075 to 1300 RPM
• Air flow from 255 to 320 L/min
• ALTAIR PRO Oil
• Air cooling with fins
• Robust and durable design
• For industrial and artisanal use
