Helvi FLEXY 160
MMA TIG Inverter Welder
with FLEX-LINE System

Helvi FLEXY 160 - Multiprocess Inverter Welder

Helvi FLEXY 160 code 99805986 is a multi-process inverter welder for semi-professional uses which guarantees a high power factor and low absorption thanks to the PFC system which automatically compensates for imbalances in the electrical network .

Helvi FLEXY 160 is a multi-process direct current welder capable of making MMA welds and TIG welds .

The FLEX-LINE system with which the Helvi single-phase welder is equipped allows it to automatically recognize the input voltage .

The Helvi FLEXY 160 welding machine is specifically designed to be powered by any electrical line with voltages between 90V and 270V .

The dimensions of 41 x 14 x 24.5 cm and the weight of 6.6 kg make this welding device compact , easy to transport and suitable for even the smallest spaces .

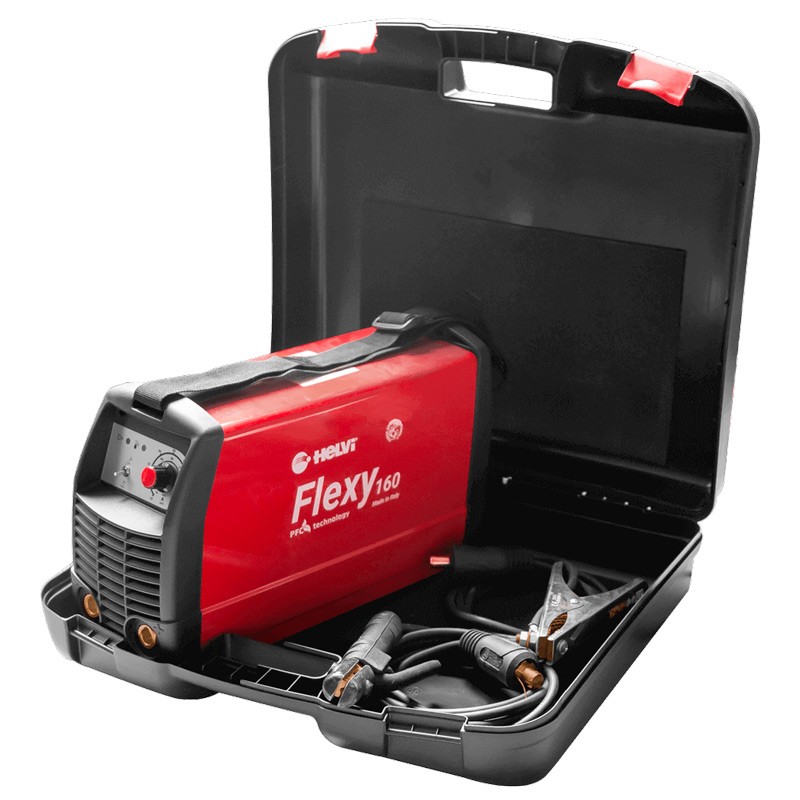

This Helvi welder for MMA and TIG welding is ideal for light carpentry and maintenance work and via the drop-down menu it is possible to purchase the Kit with the practical plastic case cod. 99805987 .

Functional Specifications

Helvi FLEXY 160 Used with 2.7 kW

The Helvi FLEXY 160 welding machine, used with 2.7 kW has an no-load voltage of 55 V with a regulation range of 10 ÷ 100 A , offers a 40% duty cycle with performances of 100 A @ 30% and 80 A @ 60% . Helvi FLEXY 160 is compatible with electrodes with a diameter of Ø 1.6 ÷ 3.25 mm and types 6013 and 7018 .

Helvi FLEXY 160 Used with 2.7 kW

The Helvi FLEXY 160 welding machine, used with 2.9 kW has an no-load voltage of 55 V with a regulation range of 10 ÷ 160 A , offers a 40% duty cycle with performances of 160 A @ 25% and 105 A @ 60% . Helvi FLEXY 160 is compatible with electrodes with a diameter of Ø 1.6 ÷ 4.0 mm and types 6013 and 7018 .

Types of welding possible with Helvi GALILEO 179

• MMA : Also called coated electrode welding, it is certainly the most widespread welding method in non-professional environments or in processes that do not require particular quality and production performance. This type of welding machine is simpler to use even if it gives less precise results from an aesthetic point of view compared to other types of welding.
• TIG : It requires low voltage and therefore absorbs little, becoming more economical and is aesthetically the most beautiful of all welding techniques. In fact, TIG welding has a so-called coin shape due to the circular shapes it produces and is more resistant, therefore it is usually used on visible elements and on processes that require precision.

Fields of application

• Light industry
• Agricultural sector
• Maintenance services
• Building constructions
• Automotive
• Semi-professional use

Characteristics

• High quality MMA and TIG welder
• Rated power of 60% and amounts to 4.8 KW
• Adjustable current from 5 to 160 A
• The 40°C work cycle guarantees durability and reliability in welding
• Compatible with 6013 and 7018 type electrodes with diameter Ø 1.6÷4 mm
• Professional quality

• CE
• Single phase
• Certification
• Cooling with Forced Ventilation
• Line Voltage Compensation
• Voltage
• Electronic Control
• Connectors
• kWA
• MMA
• Arc Force
• Hot Start
• Anti Sticking
• Electrodes
• TIG
• Lift Arc

Compatible accessories

•
  TIG torch 17V 4 m 50 mm2 with gas valve 23020159
•
  Welding cable with electrode holder 3 m 16 mm2 180 AMP connector 50 mm2 43205049K
•
  Earth cable with clamp 2 m 16 mm2 180 AMP 50 mm2 connector 43210091K
•
  Electrode welding kit 180 AMP 16 mm2 3 + 2 m dinse 50 mm2 99900045

•
  Helvi XL ports welding machine bag 54 x 22.5 x 25 cm 21905139K

Safety accessories

•
  Pair of professional MIG/MMA gloves - 21905134
•
  Pair of professional TIG welding gloves 21905133
•
  Vision 2.1: Self-darkening mask - 21905100
•
  Sky 2.0 Self-darkening mask 2 sensors 21905125

HELVI: Italian excellence for welding

Helvi SpA is an Italian company belonging to the Beta group. Based in Sandrigo, in the province of Vicenza, this Italian manufacturing company specializes in industrial welding machines , plasma cutting machines, professional battery chargers and accessories .

Helvi video presentation
