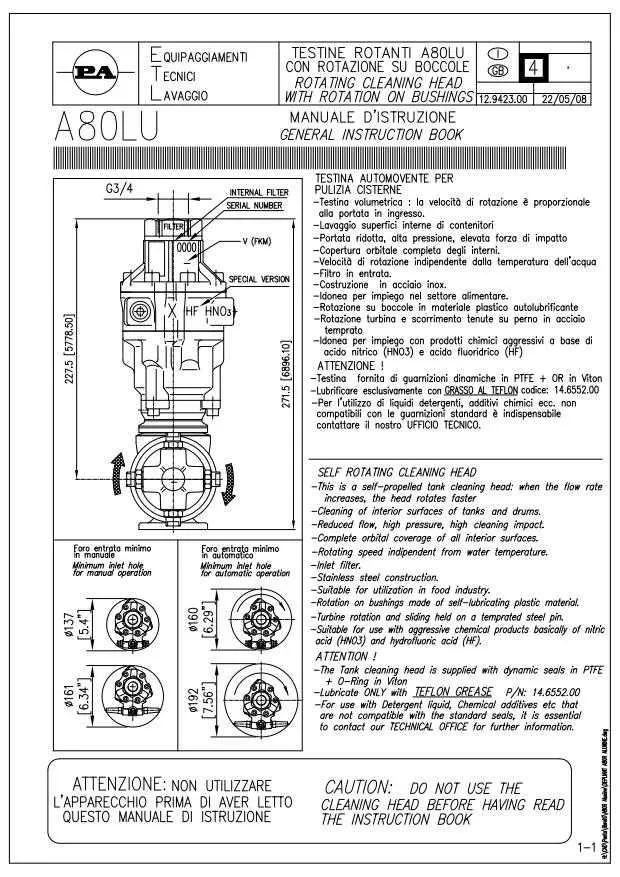

ROTATING HEAD FOR WASHING TANKS PA A80LU
PA A80LU - Rotating head
Tank cleaning
The A80LU PA Tank Cleaning Rotating Head is specifically designed for use with nitric acid (HNO3) and hydrofluoric acid (HF) cleaners
The PA A80LU hydrokinetic rotating head is self-propelled and compatible with high water flow rates: two models are available, the first with flow rates from 60 to 80 liters per minute, the second with flow rates from 100 to 120 liters per minute.
The washing head is designed for cleaning closed containers and finds application in the automatic washing of tanks and process equipment in the pharmaceutical, food and chemical industries .
The construction of the head is entirely in stainless steel to ensure maximum strength and durability .
See A80R PA Rotating Head Demonstration Video
The movement of the rotating head is obtained through the washing fluid which sets a turbine in rotation. The turbine then moves a gear reducer which reduces the revolutions and increases the drive torque to ensure the right speed of rotation and smooth operation without hesitation.
The accurate design allows you to program the repetition of the washing jet steps on the internal wall according to a well-defined matrix, guaranteeing complete washing of the tank.
Functional characteristics
The Rotating Head is built to work with water up to 90 ° C, even in the presence of general purpose detergents or disinfectants.
The rotating HEAD must be connected to a pressure circuit, generally pressure washers and the like, equipped with all safety and control devices (such as safety valves, regulation valves, etc.)
The HEAD must be firmly anchored to the mouth of the tank or to a special support, the nozzles must be located if possible in the center of the tank and equidistant from the walls.
The high pressure washing nozzles with straight jet must be suitable for the flow rate and pressure at which you intend to operate.
The liquid sent from the system to the head must be filtered to prevent foreign bodies from entering, causing malfunction and consequently more frequent maintenance interventions.
MAINTENANCE: after normal use, wash the head inside by feeding it with clean water without additives.
Scope | Overall dimensions (diameter) |
---|---|
Model 25.4860.50 / 60 - 70 liters / minute | 165 mm |
Model 25.4860.80 / 100 - 120 liters / minute | 165 mm |
Entry | G 3/4 F |
Nominal pressure | 140 bar (at least 30 bar) |
Permitted pressure | 160 bar |
Nominal flow rate | 10/50 liters per minute |
Nominal temperature | 0-90 ° C |
Rotations | 10/20 rotations per minute |
